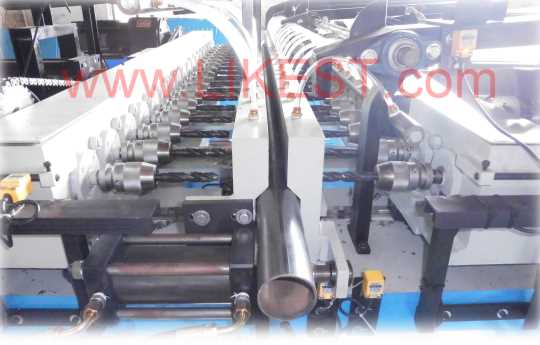

36 Heads scaffolding Tube Drilling Machine (Horizontal Type)

CF-3000D36A

With Auto Loading and Unloading Equipment

Specifications:

1. With 18 drilling heads on the left side and 18 drilling heads on the right side,  total 36 drilling heads on the same machine

2. Maximum Pipe Length: 3000 mm

3. Pipe Diameter: 48.3mm

4. Hole pitch is regular/fixed spaces :125mm

5. Pipe thickness: 4~5mm

6. Diameter of holes in the pipe :18mm

7. Loading and Unloading the Pipe: Automatic

8. The clamping is automatic: the working circle start with one button, loading and unloading automatically.

Major Parts/Components:

1.  3HP Speed Reducer Motor: 2 motors on the left side and 2 motors on the right side, total 4 motors

2.  Each motor drive 9 pcs Drilling Heads

3.  With Morse Taper Drilling Bit (HSS [High Speed Steel] Material)

4.  Hydraulic Motor : 5 HP ; 2 Hydraulic circuits

5.  Linear Ball Slide to drive Moving Slide

6.  The Drilling Spindleˇ¦s Power Transmission by gear box, not by chain link.

7.  Coolant Motor : 1/4HP

8.  Tube Clamping System :by Pneumatic Cylinder

Application:

Scaffolding
