Swaged Tubular Cable Ladder Production Line



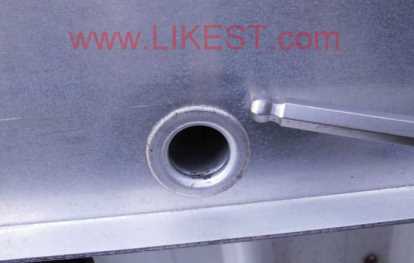

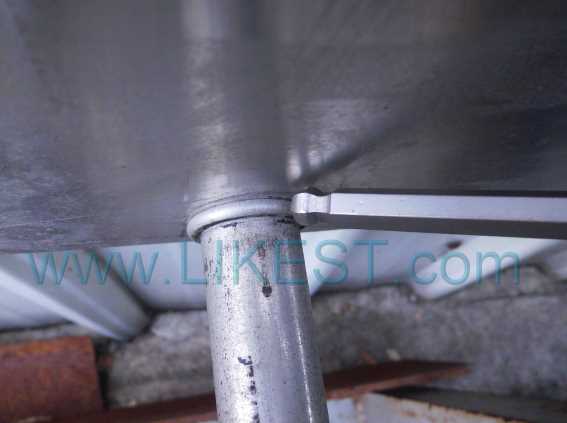

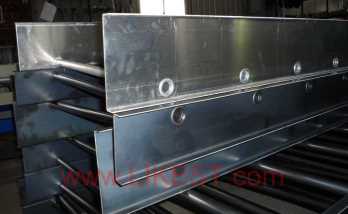

Samples :



Major Parts/Components:

Full-Automatic tubular rung cable ladder swaging machine

CF-AC-1000  Automatic Type Loading Dual Sides Round Tube End Chamfering Machine (with Raw-Tube Storage)

CF-TM  Transfer Module Systems: Move the tube from CF-AC-1000 to CF-FAS-3000

CF-FAS-3000 Full-Automatic Cable Tray Ladders Swaging Machine for Pipe (Cable Tray Ladder Length: 3000mm) with Tube Insert System and Loading System and Unloading System: 2 Tubes Swaging at a time.

CF-ST Full-Automatic STACKING SYSTEM for the finished Cable Ladders

　

Semi-Automatic tubular rung cable ladder swaging machine

CF-AC-1000 Automatic Type Loading Dual Sides Round Tube End Chamfering Machine (with Raw-Tube Storage)

CF-SAS-3000 Semi-Automatic Cable Tray Ladders Swaging Machine for Pipe (Cable Tray Ladder Length: 3000mm) with Loading System and Unloading System

　

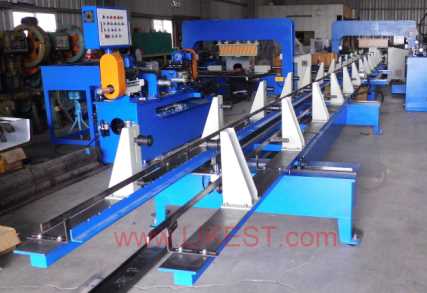

Manual type for bending parts  ( 90 degree, tee, cross, inside and outside )

CF-AC-1000  Automatic Type Dual Sides Round Tube End Chamfering Machine (with Raw-Tube Storage)

CF-MS-3000 Manual Cable Tray Ladder Swaging Machine for Pipe: 1 Tube Swaging at a time.  Manual Loading and Unloading

Feature:

-Automatic Solution to Manufacture tubular rung cable ladder.

-The quantity produced by our machine (for Mild Steel Tube): For 300mm pitch, 10pcs tubes will need 100 seconds to finish 3000mm length.(for Semi- Automatic and Full- Automatic) .

Specifications: ( For Semi- Automatic and Full- Automatic)

Material

Aluminum, Mild Steel

Cable Ladder Rung Width Range

100、150、200、250、300、400、450、500、600、700、800、900、750、900、1000 mm

Suitable Maximum Cable Ladder Length

3000mm

Side Rail Height

100~150 mm

Rung (Round Tube) Diameter

∮25mm ± 0.1mm

Side Rail Hole Diameter

Bigger than ( > ) 0.1mm ABOVE of Tube Outer Diameter’s Maximum Tolerance

Side Rail Sheet Thickness

Mild Steel: 2.5 mm

Tube Thickness

1.5 mm ± 0.1mm

Rung’s Pitch (Assembly Distance)

2 kinds: 229mm and 300mm

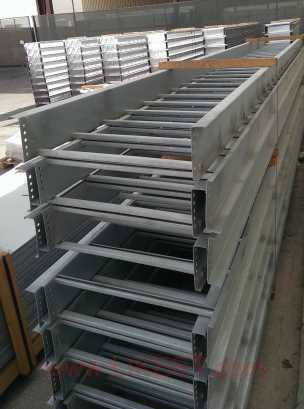

Application:

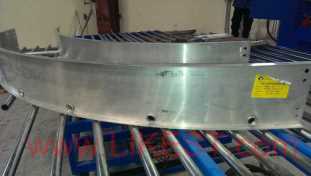

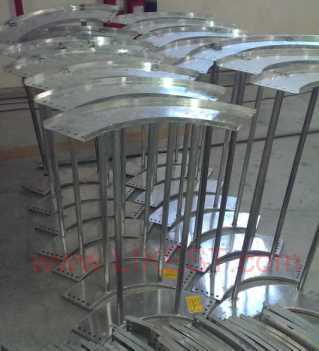

for rung type is Swaged Tubular Rung, Tubular Cable Ladder, tubular rung cable ladder, equal cross, internal riser, external riser, elbow, straight ladder, straight reducer, left reducer, right reducer, equal tee, vertical tee, end plate.
