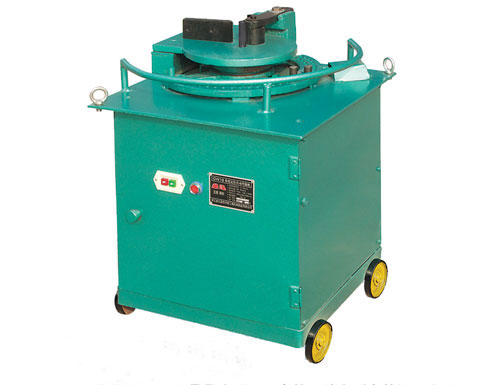

Description: |
This machine is a miniature bend-hoop machine. It is using for 4-18mm A3steel and 6-14mm II screw thread. It can bend different shape depend on demands.
The machine is agility, convenience, capability stabilization, automatism bend, manus button, proper motion return and security. The machine is idea equipment for bending small diameter reinforcing steel bar and important supply equipment of middle, big bend machine. Because this machine introduces proper motion regulate process, automatism return, backhaul speedy. It is 4-5 times than tradition bend machine.
【Main technique parameter】
Cut reinforcing steel bar diameter:4-18mm(A3 steel) 4-14mm(H screw thread steel)
Cut reinforcing steel bar intension: <450Mpa
Rotate speed: 30-35times/minute
Power/rotate speed/voltage: 1.5KW/1400r.p.m/380V
Electricity model: Y90L-4
Size (LXWXH): 580×580×700
mmWeight: 180KGS
|
