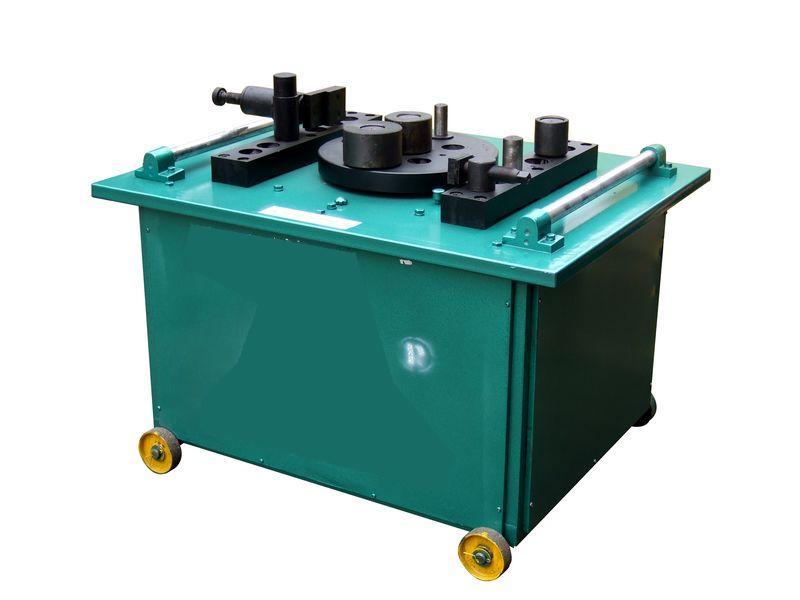

Description: |
This machine is using for bending all kinds of A3 steel and II screw thread steel. The process is easily, the same of bend shape, adjust easily, operate convenience, use trustiness, capability stabilization. The machine can depend on different demands to bend all kinds of shape.
This machine will change the work tray 1800 after it use a long time, in order to it can extend use-life, because the inner work also will change 1800,the accessory can wear and tear equality.
Main technique parameter
Cut reinforcing steel bar diameter:10-50mm(A3 steel) 10-40mm(H screw thread steel)
Cut reinforcing steel bar intension: <450Mpa
Rotate speed: 5-10 round/minute
Power/rotate speed/voltage: 3KW/1400r.p.m/380V
Point Enlarge Size (LXWXH): 850*850*820mm
GW40 bend machine Weight (including accessory): 480KGS
|
