Description: |

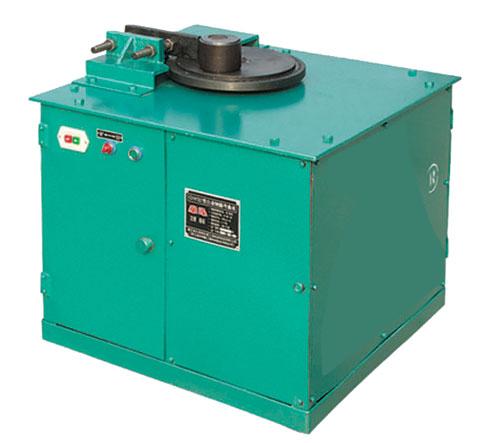

This machine is new model bend machine. It is using for 4-32mm A3steel and 4-28mm II screw thread. It can bend different shape depend on demands.
The machine is agility, convenience, capability stabilization, automatism bend, manus button, proper motion return and security. This machine has proper motion bolt regulate process, manus button, and automation return. It is idea equipment for bending reinforcing steel bar.
Main technique parameter:
Cut reinforcing steel bar diameter:6-32mm(A3 steel) 4-28mm(H screw thread steel)
Cut reinforcing steel bar intension: <450Mpa
Rotate speed: 12 times/minute
Power/rotate speed/voltage: 3KW/1400r.p.m/380V
Size (LXWXH): 750*750*720mm
Weight: 180KGS |
