fire damper blade

V locking blade

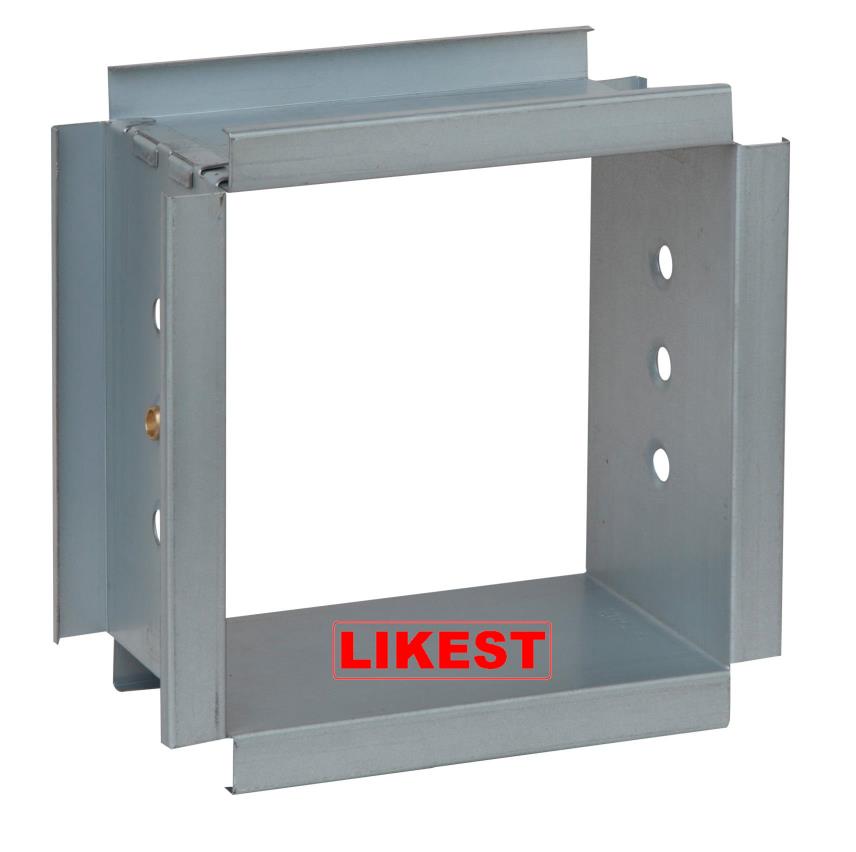

Curtain Blade

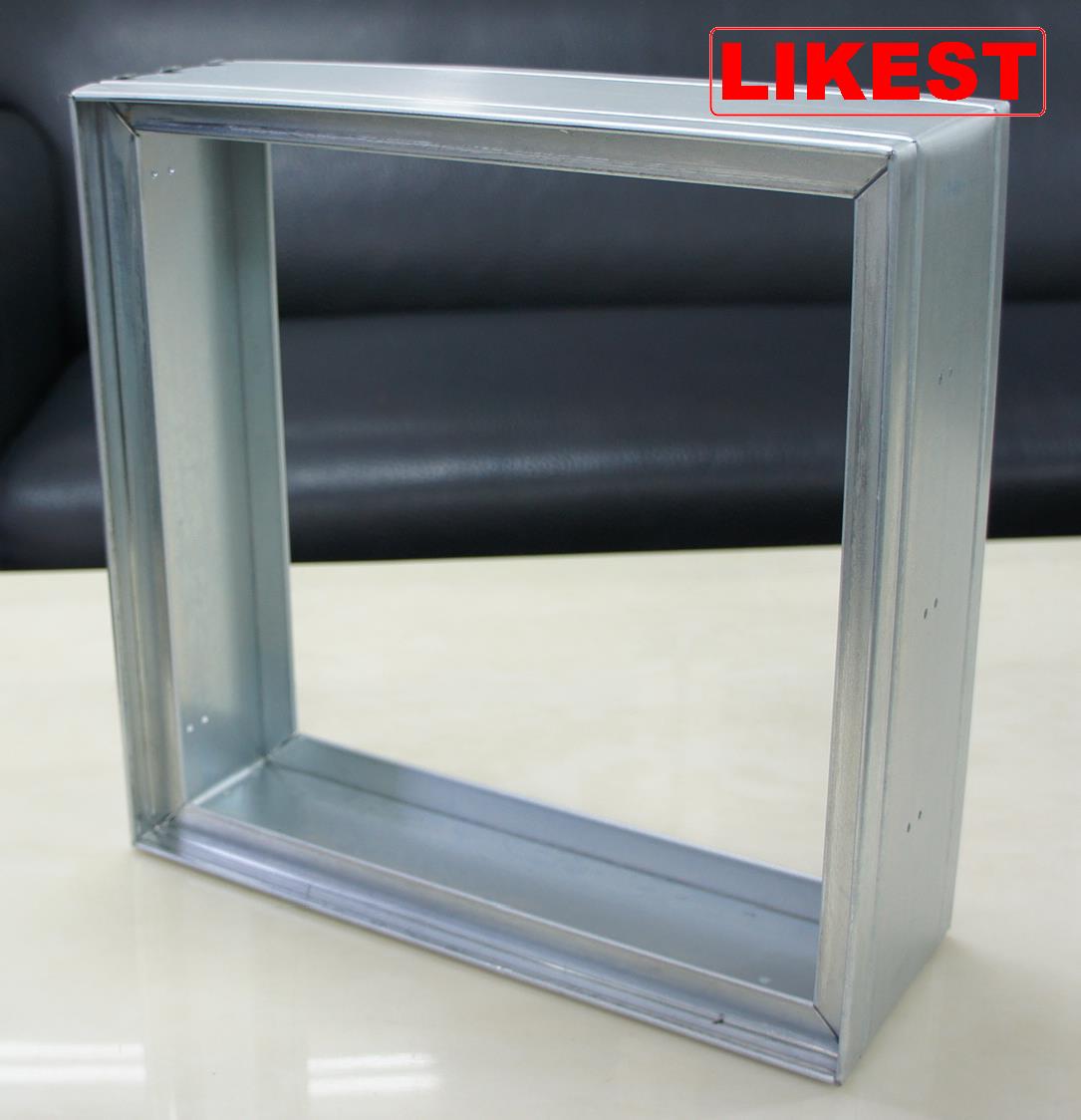

fire damper frame

One piece Frame

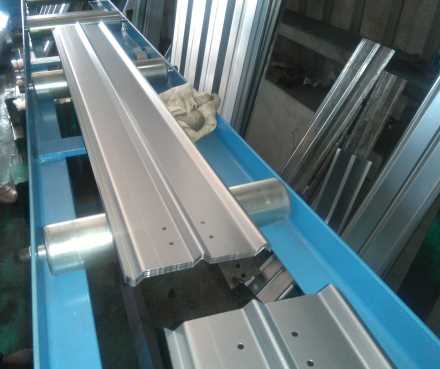

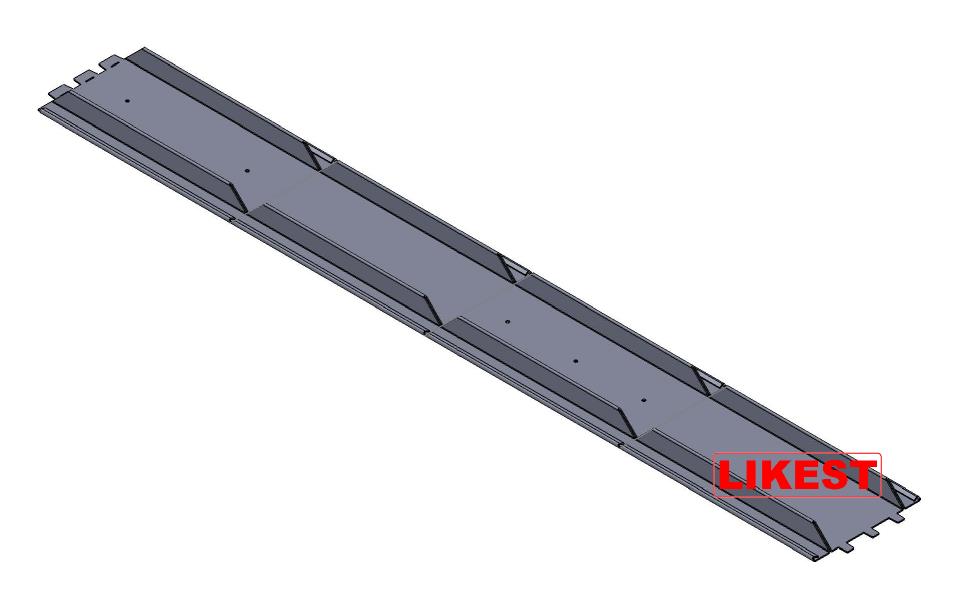

fire damper blade  Roll Forming Machine

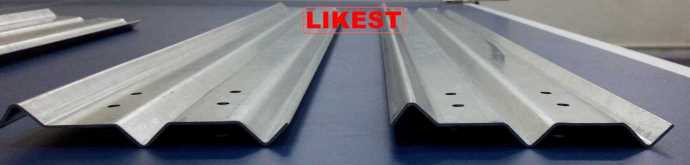

V locking blade roll forming machine

Features:

-One machine can make two width and two thickness sheet with punching.

-Plate thickness : 1.2-1.5 MM

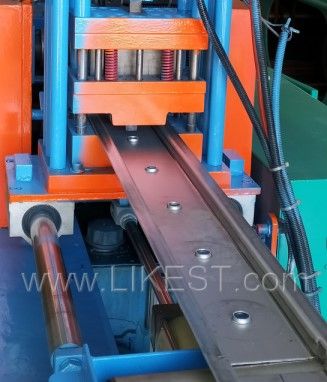

-Incorporate holes on both sides of the blades just before cutting to the required length

-Raw material : Galvanized steel

-Producing process : coil →Roll forming →Punching →Automatic hydraulic cut-off after forming → Finished products.

- For the Volume Control Dampers.

curtain fire damper blade roll forming machine

Features:

Forming speed:18 M / minute.

Forming thickness :1.0 mm. G.I.

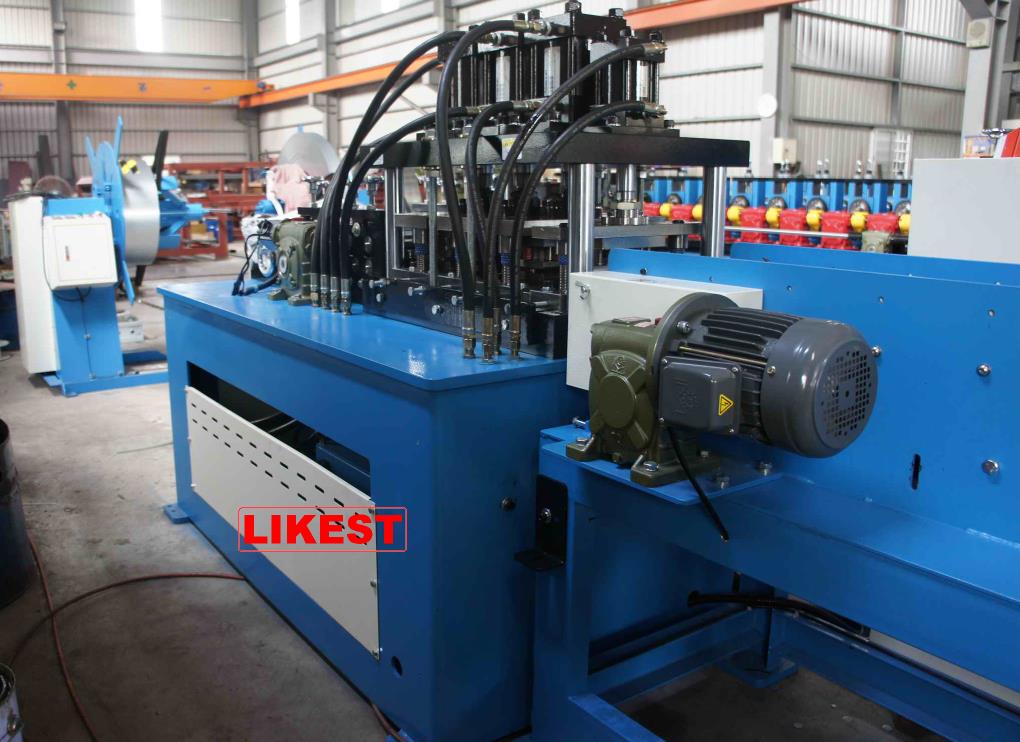

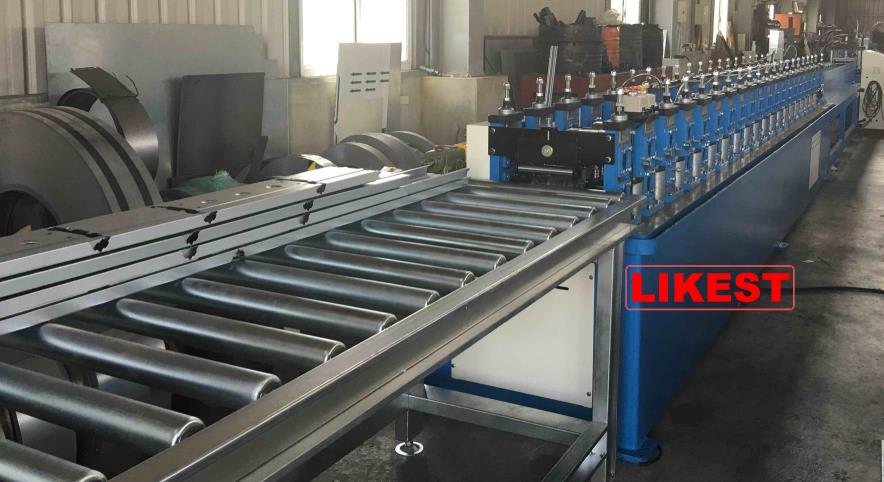

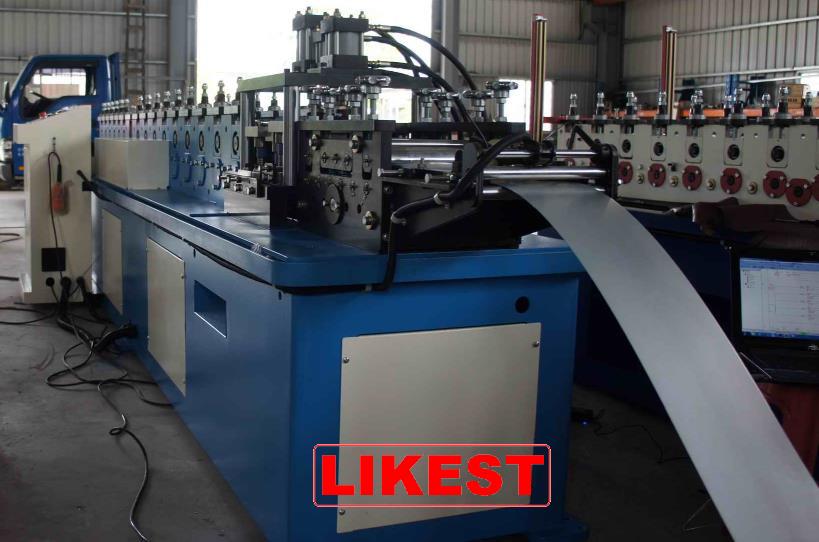

fire damper frame roll forming machine

Features:

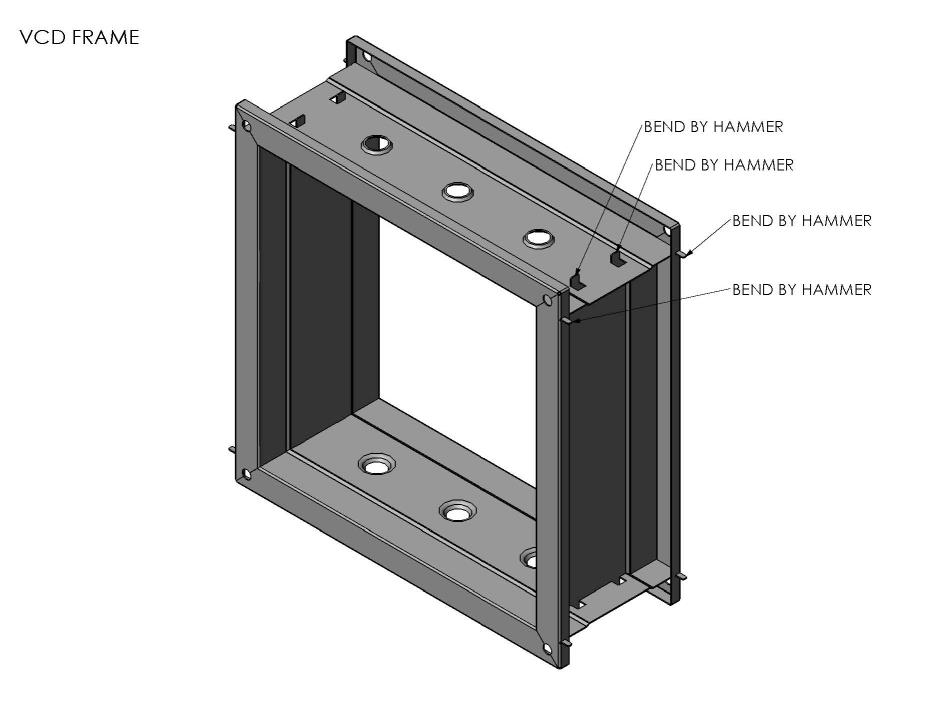

-Damper Forming machine (Frame) is used for fire dampers, volume control dampers.

-One piece Fire Damper Frame

-width adjustable

-Suitable material: GI: 0.8~1.0 mm SS: 0.8 mm

-MIN. SIZE OF FRAME: 200MM*200MM
-MAX. SIZE OF FRAME:1200MM*1200MM

-Producing process: un-coiler (material feeding)→ feeding→notching→punching →shearing→conveyor →forming→run out rack

Features:

-One piece Fire Damper Frame

-width adjustable (2 in 1)

-Suitable material: GI 1.6 mm (thickness)

-Producing process: un-coiler (material feeding)→ feeding→notching A→notching B→punching→shearing→conyver→forming→run out rack

-Feeding speed: 12 M/min.
