CisFun Technology Corp.

Longitudinal Welding Machine

APPLICATION :
Can directly do automatic Longitudinal / Linear welding such as the internal part in the drinking fountain, the inner bucket in the dust cleaner, duct engineering, light decoration, tire's steel ring, various steel pipes, steel bucket, etc...
HMI Touch screen, easy operation, can input the welding length and each welding control parameter.
Precision linear slide rail working with ball screw can secure stable transmission, reduce the breaking rate of the welding piece and upgrade the welding path's quality.
The back-blowing system and the cooling device are equipped inside the spindle to restrain temperature rising.
Can work with TIG/CO2, SAW for automatic welding.
TIG welding can be added with automatic feeding system.

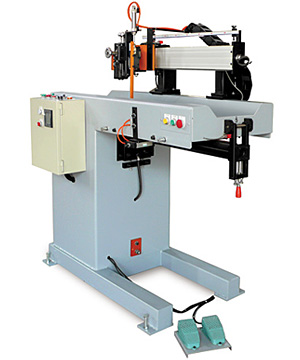

¡@ Longitudinal Welding Machine CFCML
Linear transmission adopts linear slide,
So it features smooth transmission.
Air bag type pressing plate design results in good welding effect.
Can add the feeding equipment.
Can work with CO2/MIG, TIG, submerged arc welding.

¡@
Model No Working Length Workpiece Thickness Input Power
  CFCML-6000 600mm     0.4~10mm     220V
  CFCML-8000 800mm     0.6~10mm
  CFCML-10000 1000mm     0.6~10mm
  CFCML-13000 1300mm     0.6~10mm
  CFCML-16000 1600mm     0.6~10mm

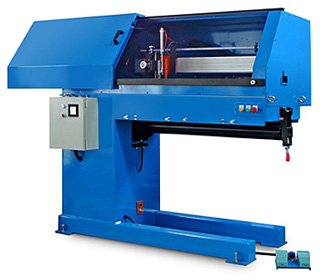

Longitudinal Welding Machine CFCML
Linear transmission adopts linear slide,
So it features smooth transmission.
Air bag type pressing plate design
results in good welding effect.
Can add the feeding equipment.
Can work with CO2/MIG, TIG,
Submerged arc welding.

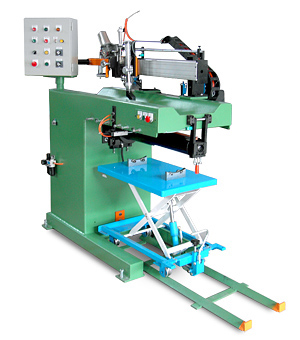

Longitudinal Welding Machine with Hydraulic Trolley
