Cam Type Medical Face Mask Making Machine CF-1200C

- Speed in 1 main machine 120~150 pcs/minute +/- 5%

- One-to-one type ( Full automated  and all in one line )

- with EPC (Edge Position Controller): Easy to feed the fabric materials

- Automatic Mask Making Machine (ALL IN ONE) for 3 Ply Mask (3 layers) Mask and 4 ply Mask (4 layers) Mask on the same machine.



 Please must see our machine video carefully about the difference with the other suppliers.

COMPARISON ITEMS

CISFUN

OTHERS

CHINA

Machine Working Action Part

CAM (no need maintenance and no wear and tear)

Pneumatic Cylinder

Speed in 1 main machine only

120~150 pcs/minute

50~60pcs/minute

Air Compressor

NO NEED

YES (8HP up)

Working power

6KW

>15KW

Factory Floor Space

Small (We make everything ALL IN ONE, so you just need only 1 machine for CF-1200C)

Big (Need 1 main machine to match with 2 or 3 ear band machines)

Consumables

Few

A lot

Assembly & Operation & Maintenance

Easy

Difficult

Maintenance Cost

Cheap

Expensive

Made in

Taiwan

Mix

China

Life time if run it 12-14 hours daily

Long

Short

Machine Price

Reasonable (But you can still Cost Recovery in a month)

Medium

Low

Configuration list of main components

No.

Item

Brand

Note

1

 Motor

 TECO /Taiwan

N/A

2

PLC

Omron /JapanˇBMitsubishi / JapanˇBDelta/ Taiwan

N/A

3

 Bearing

NSK/ JapanˇBSANYCO/Korea

N/A

4

 Line rail

THKˇBPMIˇBCPC/ Taiwan

N/A

5

Remote control

TELECRANE or other same level brand

N/A

6

10 inch Colorful Touch Screen

iBASE/Taiwan

N/A

7

Relay

Omron / IDEC

N/A

8

Motor

Taiwan

N/A

9

 Button

IDEC

N/A

Feature:

weld the ear band by "CAM" : We use the ˇ§CAMˇ¨ Design (Mechanical Linkage which Translates Motion)  to weld the ear band (ear loop). It is Faster than Pneumatic Cylinder Design. We do not use Pneumatic Cylinder on our machine. So it is faster than the other suppliers.

Advantages: Our machine is designed and driven by CAM, not Pneumatic Cylinder. So no need Air Compressor. And the Maintenance is a few cost. And the reliability is higher than the other suppliers machine.

Save Space and Power and Human Cost : Our machine speed is equal the other suppliersˇ¦ total 3 set machines, but you do not need to buy 3 machines and you can still Cost Recovery in a month after using our machine.

simple assembly : Our machine is with different designs, we combine Face Mask Ontology Machine+ Ear loop welding machine (ear band spot welding). So you do not worry about the problem of component damaged and the machine adjustment and machineˇ¦s training after you receive the machine. You just need to do simple assembly after you receive the machine and then you can start mass production.

no need a lot consumables : As we know, the machineˇ¦s design of the other suppliers need a lot consumables. Our machine does not need a lot consumables.

Full automatic : This mask making machine is mainly used for automatic forming of flat masks, driven by the roller after unwinding the whole roll of cloth, and the cloth is automatically hemmed and wrapped. Nose clip whole roll traction unwinding, after cutting to a fixed length, it is introduced/fed into the edging cloth, and two sides are welded to the sealing by ultrasonic waves, and then the ultrasonic side sealing is performed by the welding with 2 pcs welding bars. The mask is conveyed to the rotating earband welding through an assembly line, and the final mask is formed by the ultrasonic welding. After the mask is manufactured, it is conveyed to a flat belt line for collection.

Specifications:

-Production specifications: Standard mask type (Size:175 * 95mm)

-Applicable material specifications:

ITEMs

Feeder Q'ty

Width (mm)

Coil OD (mm)

Barrel ID (mm) Weight

Non Woven Fabric/

Meltblown Cloth

4 175~200 Dia. 600   Dia. 76.2 Max 15kg

Nose clip steel wire covered plastic / pure steel wire / full plastic

1 3-7 Dia. 400  Dia. 76.2 Max 25kg

Earband

4 bags 175*3 (diameter) N/A N/A N/A

Wrapping

4 bags 20 Dia. 455 Dia. 38 Max 10kg

Examples of material selection:

1ˇBPP spunbond PPSB-200mm * 36g (inside of your face)

2ˇBMelt-blown175mmX18g

3ˇBPP spunbond PPSB-175mm * 18g (outside of your face)

4ˇBSuggested Nose Wire: 3.00mm * 0.80mm (Diameter 3~3.8mm)

The above 4 items should be prepared by the buyer.

video:

We test speed : 140~180 pcs/minute in our factory.

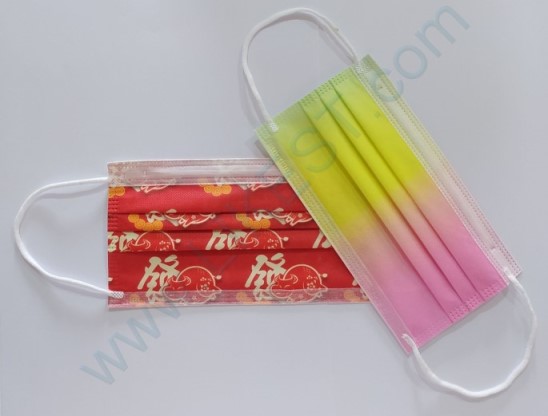

Finished product:

customized Face Masks Taiwan:     Welcome Contact us for pricing

MOQ:2000 PCS
