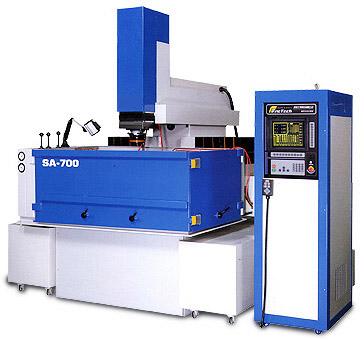

SA SERIES
ELECTRICAL DISCHARGE MACHINES
MODEL: 300/400/500/600/700/1000/1300/2100/2500

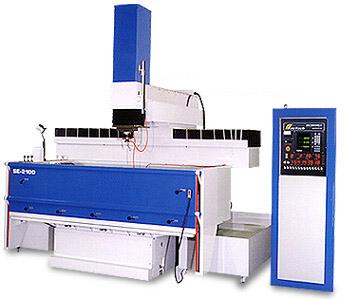

SE series
ELECTRICAL DISCHARGE MACHINES
MODEL: 300/400/500/600/700/1000/1300/2100/2500

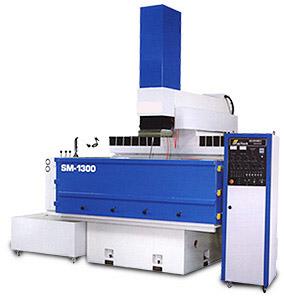

SM SERIES

ELECTRICAL DISCHARGE MACHINES
MODEL: 300/400/500/600/700/1000/1300/2100/2500

SA/SE/SM Series SPECIFICATIONS:
¡@
Model

Unit
300 400 500 600 700
Work Table

mm
600x300 650x350 800x400 950x500 1000x600
Maximum oil depth Work Tank(XxYxZ)

mm
770x500x350 940x580x400 1140x630x450 1470x920x600 1680x900x650
Table Longitudinal Travels(X)

mm
300 400 500 600 700
Table Transversal Travels(X)

mm
250 300 400 500 500
Z Axis
Quill Travel

mm
150 200 200 250/400 400
Backslide Travel

mm
230 300 400 400(MOTOR) -
Worktable "T" Slot(# x P)

mm
3x100 4x70 4x85 5x85 4x130
Max Distance Between
The Table Surface
And Quill

mm
420 450 550 760/960 750/1000/1150
Maximum Electrode Weight

kgs
50 150 200 250 300
Maximum WorkPiece Weight

kgs
700 1000 1500 4000 4000
Machine Weight

kgs
1400 1800 2150 3500 5000

Model

Unit
1000 1300 2000 2100 2500
Work Table

mm
1200x800 1400x900 1000x2000 1000x2000 1000x2500
Maximum oil depth Work Tank(XxYxZ)

mm
1845x1100x650 2080x1270x700 2900x1500x700 2900x1500x700 3400x1555x700
Table Longitudinal Travels(X)

mm
1000 1300 2000 2100 2500
Table Transversal Travels(Y)

mm
600 700 1000 1000 1000
Z Axis
Quill Travel

mm
400/600 450/600 600 600 600
Backslide Travel

mm
- - - - -
Worktable "T" Slot(# x P)

mm
6x130 6x145 6x147 6x147 6x147
Max Distance Between
The Table Surface
And Quill

mm
730/880/1130 960/1110/1260 1250 1350 1500
Maximum Electrode Weight

kgs
300 500 500 500 500
Maximum WorkPiece Weight

kgs
5000 5000 7000 9000 10000
Machine Weight

kgs
7000 8400 12300 13500 18200

¡@
