tube grooving machine

tube grooving machine

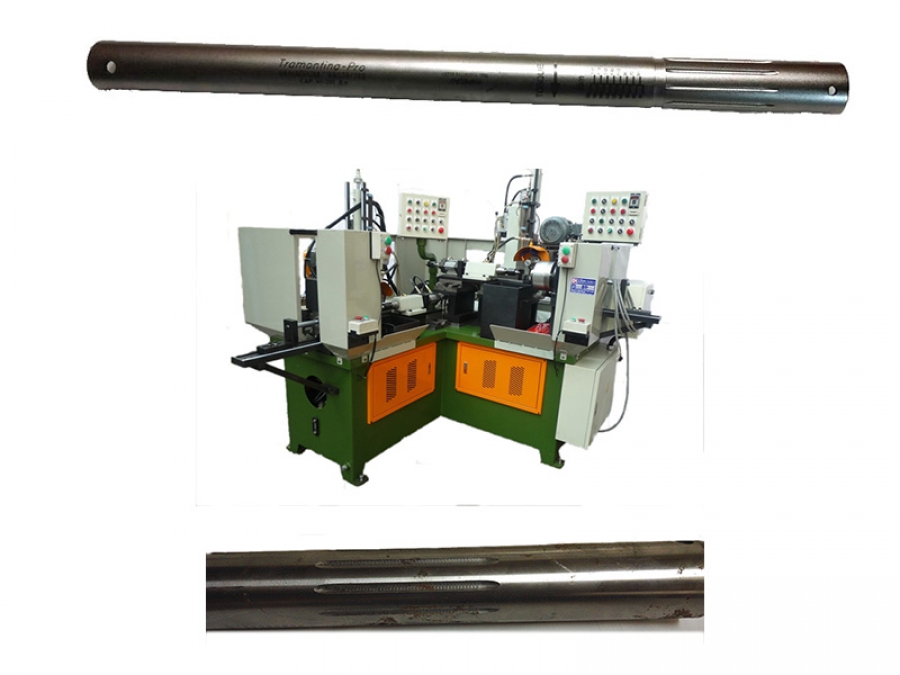

pipe grooving machine

Specifications:

For PIPE

For ROD

Main Power : 5HP

Main Power : 8HP

Spindle Motor (Power: 3HP)

Spindle Motor (Power: 5HP)

Hydraulic System Power: 2HP

Hydraulic System Power: 3HP

Machine size: 1500(L)£A1350(W)£A1650mm(H)

Machine size: 1600(L)£A1400(W)£A1700mm(H)

Weight: about 1450kg

Weight: about 1550kg

Grooving machine : 1 set

Special Design Hydraulic Pump *1 set

Special Design Hydraulic system: 2 circuits : 1 set

Special Design Hydraulic Cylinder: £p50 / stroke 300m/m: 1 set (for slide base)

Special Design Hydraulic Cylinder: £p50 / stroke 30mm: 1 set (for clamping tube)

Clamping Mold: 1 Set

Clamping Mold Fixture: 1 Set

Grooving Tool Spindle Base : 1 Set

Grooving Tool: 1 Set

PLC Type Electrical Control Box : 1 set

Production speed: about 8~10 seconds/piece

¡@

Application:

-PIPE Head Rest

-torque wrench

-torque spanner

-grab handles

-guard rails

-structural supports and braces

metal tube rolling grooving machine
