-- Vacuum Forming Machine --


ˇ@

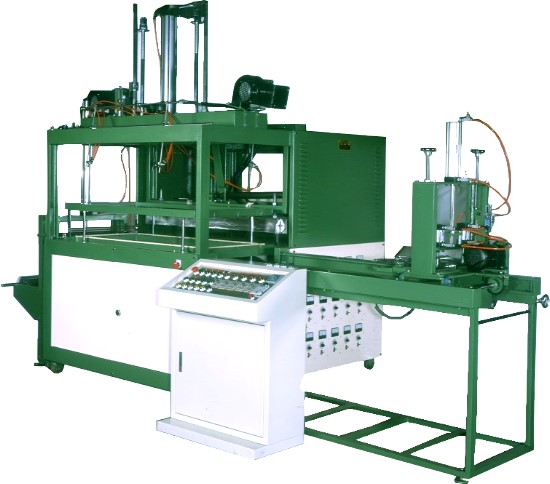

Item No/Type : CS-25
Name : Fully-Automatic Continuous Vacuum Forming Machine
ˇ@
Description : ˇ@
Features:
1. With computerized and automatic PLC system it is easy operated and maintained, less out of order.
2. Motor for puling film is controlled by adapter and can be adjusted freely. It has a stable brake and a material saving feature.
3. Heater with separate controlling has the features of instantly heating, electricity saving and the heat can be evenly distributed With its adjustable and automatic back up device, high security is guaranteed.
4. The cooling water of mould set is controlled separately so to evenly cool the machine.
5. The width of the plastic material can be adjusted easily.
6. Suitable for PVC, PS, PP, PET, PE plastic material.


ˇ@

Model
Specification
CS-23 CS-25 CS-25A
Forming Area 570x1200x2 mm 570x1200 mm 670x1400 mm
Heater Capacity 32 KW 32 KW 40 KW
MAX Forming Depth 200 mm 200 mm 200 mm
Air Compressor 5 HP 5 HP 7.5 HP
Vacuum Pump 5 HP 5 HP 5 HP
Machine Size 3100x3400x2600 mm 2100x3400x2600 mm 2300x3800x2600 mm
