-- L Type Sealing Machine --


ˇ@
Item No/Type : CS-500,600,700

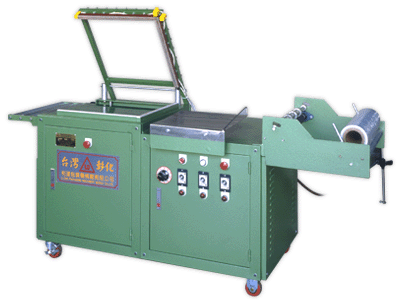

Name : Automatic L Type Sealing Machine
ˇ@
Description : ˇ@
Automatic L type sealing machine:
FEATURES:
1. Suitable for PVC, PE, PP, POF, shrinkage films, and can be used together with shrinking machines.
2. Sealing by the instant heating. Sealing time and temperature are adjustable for different thickness of films.
3. The machine requires the operator to put products into the folded shrink film, and step on the control pedal to cut and seal the film. Packed products will be sent to the film shrinker automatically for shrinkage packaging.


ˇ@

Specifications
Model
CS-500 CS-600 CS-700
Voltage 110V/220V 110V/220V 110V/220V
Motor 1/4HP 1/4HP 1/4HP
Sealing Size(mm) 500x500 600x600 700x700
Sealing Time 1~3 Sec 1~3 Sec 1~3 Sec
Machine Size(LxWxH)mm 1600x850x750 1800x950x750 2000x1050x750
Compressor 1/4HP 1/4HP 1/4HP
Weight (kg) 120 135 150
