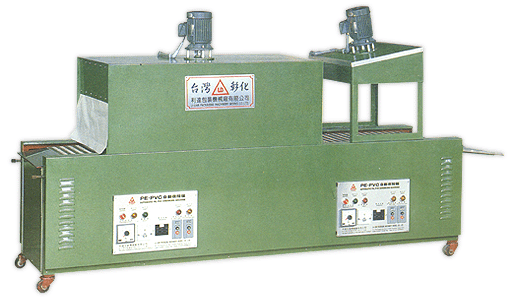

-- Shrinking Packaging Machine --


ˇ@
Item No/Type : LD-56E,57E,58E
Name : PE Shrink Packaging Machine
ˇ@
Description : ˇ@
FEATURES:
1. Heating by infrared radiant, with automatic temperature control, and adjustable speed control.
2. Packing the merchandise by heating of the heat-shrinkage PE films. With the high temperature heating shrinkage, and fast cooling to enable your products well-protect and in good looking. It is more stronger than PVC film and is not easy to be broken.

Applications:
Suitable for the package of heavier products, such as canned food, hardware, beverage which are packed in dozen.


ˇ@

Specifications
Model
LD-56E LD-57E LD-58E
Voltage 220V/380V 220V/380V 220V/380V
Motor 1/4HPx4 1/2HPx1
1/4HPx3
1/2HPx1
1/4HPx3
Heater Capacity 12KW 14KW 16KW
Max. Temperature 250 250 250
Conveyor Speed m/min 3~10 3~10 3~10
Shrinkage Oven Size(mm) 1200x300x150 1200x450x200 1200x600x250
Machine Size (LxWxH)mm 2400x500x950 2400x650x1000 2400x800x1050
Weight (kg) 350 400 450
