-- Auto Blister Edge Folding Machine --


ˇ@
Item No/Type : CS-96,97

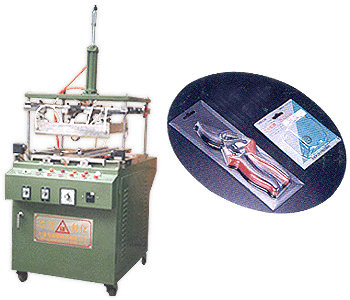

Name : Auto Blister Edge Folding Machine
ˇ@
Description : ˇ@
SPECIAL FEATURE:
To fold the three edges of the formed blister automatically and simultaneously, then insert cardboard to become a kind of hanging card package. Suitable for tools, hardware parts and stationery.
It is adjustable depending on the size of the blister.
Easy operation, fast production and accurate folding edges.
Can be operated by auto or manual. It is safe and convenient for mould testing and continuous operation.


ˇ@

Model
Specification
CS-96 CS-97
Voltage 220V/380V 220V/380V
Heater 600W 750W
Air Compressor 2HP 2HP
Max. edge folding (m/m) 400x500 500x1000
Machine Size LxWxH(m/m) 950x600x1600 1250x700x1600
Weight (kg) 250 300
