AUTO/L-TYPE SEALING & HOT SHRINK PACKING MACHINE

SPECIAL FEATURES:

  1. This machine is designed with automatic conveyance. Work-pieces conveyed to the shrinking machine automatically after processes of sealing & cutting finished.
  2. The sealing & cutting control is by use of instantaneous heating. Speedy sealing & cutting, Beautiful appearance & Electricity saving. Available to change the time for sealing & cutting and temperature required upon the thickness of plastic film.
  3. Sealing Arm made with Automatic Pressure. When operation, place workpiece in the fixed position, push Auto Switch and the sealing arm will automatically down press to complete sealing & cutting processes.

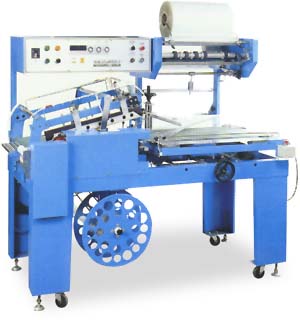

LH-500AS

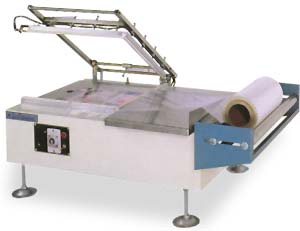

LH-350
¡@

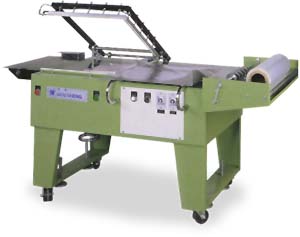

LH-500A

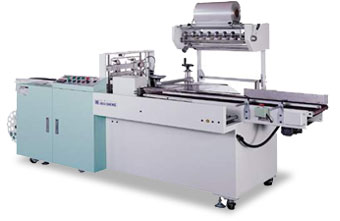

LH-500ASL

¡@

¡@

SPEC

MODEL

 MECHANICAL DIMENSION DIMENSION OF SEALER FRAME POWER ELECTRIC HEATING PACKAGING CAPACITY AIR PRESSURE EXHAUSTION
LH-500AS 1500*850*1400 500L*450W 220V 1 1.3KW 10-20UNITS/MIN 4~6kg/cm2

320.64l/MIN
LH-500A 1700*1000*850 500L*450W 220V 1 1.5KW
LH-600A 1900*1100*850 600L*600W 220V 1 2KW
LH-500M 1700*1000*850 500L*500W 220V 1 1.5KW ¡@
LH-350 1050*600*400 420L*350W 220V 1 1KW
LH-500ASL 3500*1170*1560

¡Û*450W

 220V 3 0.8KW 18 M/MIN

IF YOUR GOODS DIMENSION IS BEYOND ABOVE STANDARD SPECIFICATIONS, WS CAN ALSO DESIGN&MANUFACTURE RESPECTIVELY.

¡@

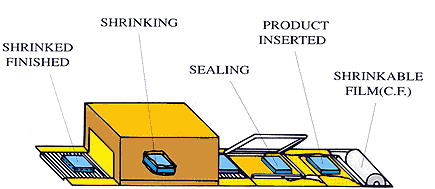

¡´THE OPERATION FLOW DIAGRAM:


PURPOSES:

Applicable to Foods, Stationery, Electronics, Hardware tools, Daily Necessities Which require shrinking & packing.

Available shrinkable film. LLDPE, PVC, OPP, PP & POF.

We can also accept your order if your requirement is beyond our standard specification.

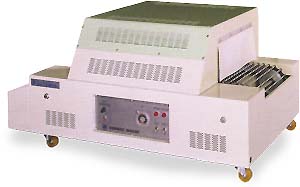

RST-350/150

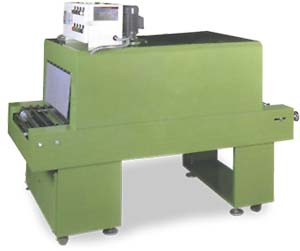

CST-400/200
SPEC

MODEL

 MECHANICAL DIMENSION SHRINK TUNNEL DIMENSION POWER ELECTRIC HEATING CONVEYANCE SPEED CONVEYANCE ROD PITCH
CST-400/200 1500*850*1350 1000*400*200 220V 1 10KW 4-12M/MIN ONE ROD PER

1NCHES
CST-600/300 1500*1050*1450 1000*600*300 220V 1 15KW
RST-350/150 1150*700*550 600*350*150 220V 1 5KW 0-7M/MIN ONE ROD PER

1NCHES
RST-400/200 1350*700*1000 800*400*200 220V 1 6.4KW

IF YOUR GOODS DIMENSION IS BEYOND ABOVE STANDARD SPECIFICATIONS, WS CAN ALSO DESIGN&MANUFACTURE RESPECTIVELY.

¡@
