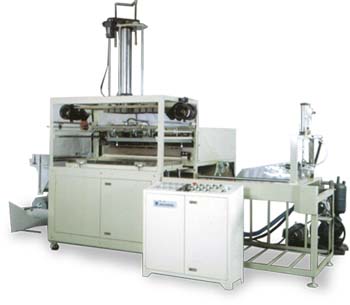

VF-600A
INTRODUCTION TO
AUTO VACUUM SHAPING MACHINE
I. SPECIAL FEATURES:
- The machine is an automatically "heat pressure"
shaping machine. The so-called "heat pressure" shaping is to lead
plastic film to process of shaping by means of "heat" and "pressure".
- The plastic film which is heated and softened
will touch model by vacuum suction and shape then.
- The main cyclic flow in shaping is heating,
shaping, cooling, stripping and charging.
¡@
II. USES:
- Suitable to all products which can be made of
plastic film and in heat shaping.
- Examples of finished products: plastic ceiling,
wainscot, plastic-steel door plate, suitcase, brief artworks, gifts,
advertising board, fruit try, food container, packing box of hardware
tool and the transparent shell used for vacuum shell package, etc.
- Classifications of film: PVC. PS, ABS and PSP.
SPECIFICATIONS: (Unit:
m/m)
| Model
no |
VF-500A |
VF-550A |
VF-600A |
| Width
of Film |
500 |
500 |
600 |
| Max. Shaping Area |
470*1000 |
520*1000 |
570*1000 |
|
Standard Shaping Depth |
130 |
130 |
130 |
| Electrical Heat |
24kw |
24kw |
28kw |
| Air
Compressor |
5HP |
5HP |
5HP |
| Vacuum Pump |
3HP |
3HP |
3HP |

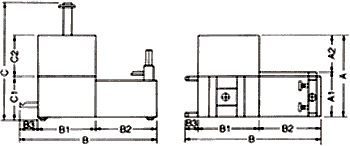

Mechanical Dimension: L(A) =Depth/W(B)=Right side/H(C)
The specifications beyond can be specified.
¡@
| ¡@ |
A |
A1 |
A2 |
B |
B1 |
B2 |
B3 |
C |
C1 |
C2 |
| VF-500A |
2000 |
950 |
1050 |
3000 |
1300 |
1400 |
300 |
2700 |
1000 |
820 |
| VF-550A |
2100 |
1000 |
1100 |
3000 |
1300 |
1400 |
300 |
2700 |
1000 |
820 |
| VF-600A |
2200 |
1050 |
1150 |
3000 |
1300 |
1400 |
300 |
2700 |
1000 |
820 |
|
