WS-8200

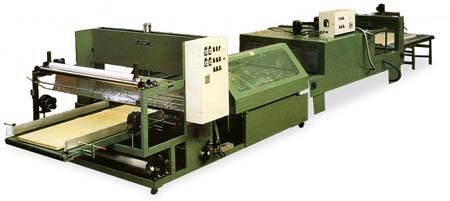

FULL-AUTOMATIC GROUP PE SHRINK FILM PACKING MACHINE
FEATURES:

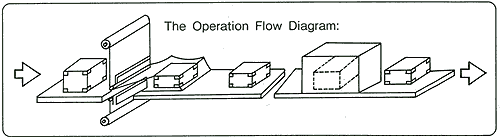

- This machine is an Automatic Packing Machine in processes, automatic conveyance, advance, seal and heat shrinkage.
- This Auto PE/PVC Film Packing Machine is designed for film packing as well as shrinking oversize, articles of complicated shape, counted collectively or packed with case (box).
- The conveyance method of this machine, designed upon the shape and quality of packed item and the requirement, is advance in concerned straight line and 90¢X turning.
- The mechanical structure of seal seat in the second seal section of this machine is designed upon the seal length on both sides of workpiece.
- This machine is suitable for either independent use or to be utilize in automated production line.
Specifications:

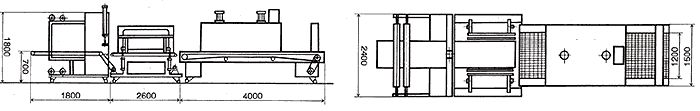

| 1. Mechanical Dimension | 8500mm in length
2400mm in width 1800mm in height |
| 2. Available Goods Dimension | Length-From 400 to 2000mm
Width-From 600 to 1200mm Height-From 50 to 200mm |
| 3. If your goods dimension is beyond our specification range, we can also design & manufacture respectively. | |
| 4. Sealing Way | Triside seal (Thermostatic control) |
| 5. Electric Heating | Heat shrinking machine-60KW |
| 6. Electric Source | 220V 3£p (As specified) |
| 7. Using Air Compression | 6kg/cm2 3001/min |
| ¡@ | (equal to 3HP Air compressor) |
Applicable package goods as follows:
Furniture, Kitchen furniture, Door plank, Sanitary & Bath facilities, Incased goods, Grinding wheel machine, Drilling machine, Boxed Spun Yarn, Toy, Food, Small hand car assembly, Beach Chair, Chair assembly, spring bed, Bicycle, Car parts, Every kind of Electric furniture and so on. We can professionally design & manufacture according to your any kind of products specifications.
| Size of PE FILM for using: | 1. Thickness:0.04-0.08m/m
2.SHRINKAGE proportion |
| Vertical and Transverse
SHRINKAGE FILM
Transverse 30¡ã30%¡EVertical 20¡ã30% |
|
