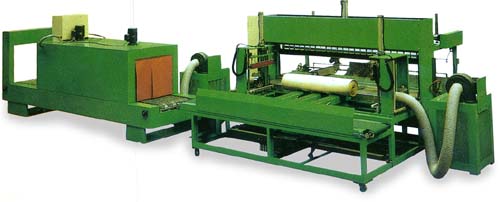

CS-8200NFULL-AUTOMATIC/PE SHRINK PACKING MACHINE FOR CLOTH

FEATURES:

  1. This machine is designed for the film package of rectangular objects enable to improve the complication and difficulty in packing process, and upgrade its packing quality.
  2. Object for using. This machine is suitable for cloth roll, rubber and plastic roll, curtains and other rectangular box, circular roll material, It has the most effective in packing of cloth roll, rubber and plastic roll.
¡@

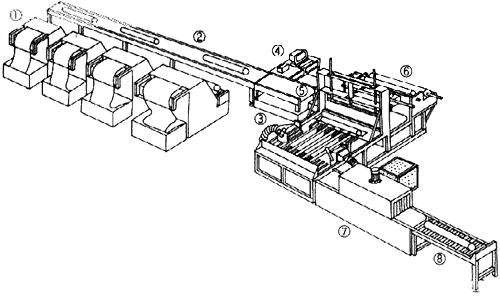

  1. Cloth-examine, rolling machine
  2. Cloth roll conveyor
  3. Electric Scale
  4. Electric scale indicator and printer
  5. Halt-conveyor
  6. Automatic PE film cloth packing machine
  7. Heat shrink machine
  8. Roller conveyor table

FEATURES:

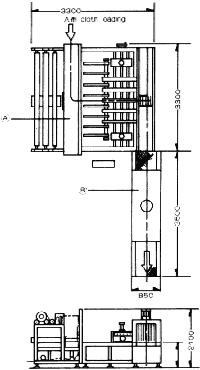

1. Machine Size
Length:6800m/m
Width:3300m/m
Heigth:2100m/m
2.Packing Capacity Maximum Speed:6 rolls/min
3.Packing Scope Circular roll diameter:
Ø100m/m-Ø300m/m
(Ø300m/m made by or der)
Length:38''-60''
Cloth roll (square) size:
Maximum250m/m (Thickness)
4.Sealing Way Triside seal (Thermostatic control)
5.Electric power (1)Main Engine of the packer:7.3kw
(2)Heat shrinkage:32kw
6.Power supply 220v 3Ø(As specified)
7.Using Air Compression 6kg/cm2x500l/min
(equal to 5HP Air compressor)
¡@

¡@

A. Automatic PE Cloth Packer

B. Heat SHRINK MACHINE

You can scheme operation progress according to working surroundings
¡@

Size of PE FILM FOR USING:
(1)Thickness:0.04-0.08m/m
(2)SHRINKAGE proportion

Vertical and Transverse SHRINKAGE FILM
Transverse 30~40%.Vertical 20~30%
