auto Robot Welding

For Cable Ladder

For U Chanel

For Gates

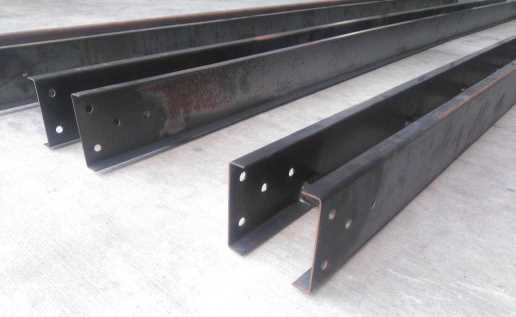

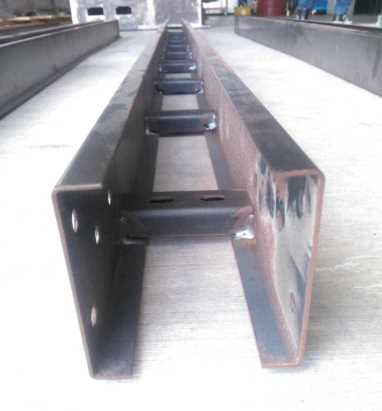

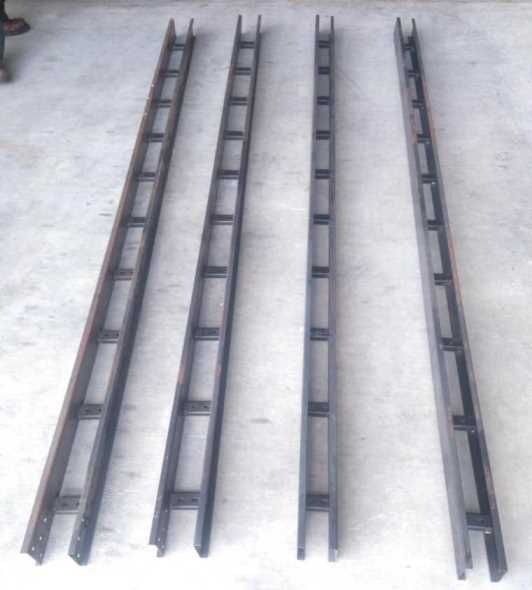

Robot Welding Line For Cable Ladder

Composition of production line

1. OTC ARC WELDING ROBOT ARM: 2 sets

2.  Horizontal type Sliding Structure Robot Arm Slide Table : 6M(L)  1 set

3.   One robotic arm including

  3.1   OTC Welding Machine : 1 set (total: 2 sets)

  3.2   Teach Pendant : 1 set (total: 2 sets)

  3.3   FD-11 ROBOT CONTROLLER for OTC Robot Arm: 1 set (total: 2 sets)

4. Welding Working table size: 100~1000mm : 1 set

5. Controller for Horizontal type Sliding Structure Robot Arm Slide Table: 2 sets

Specifications:

  • Suitable Material: MILD steel, aluminum, stainless

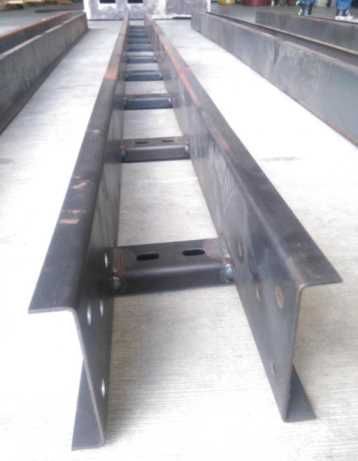

  • Suitable Cable ladder  width : 100~1000mm (by manual air clamping adjust)

  • Welding type : outside & inside welding type

  • Side rail size : 100~200mm rung size : 41*21mm

  • Welding speed : 3min/pcs (3M/pcs pitch 229)

  • Cable ladder pitch : 150,229,300mm (by manual rail & ball screw adjust, time about 3min)

AUTO ROBOT WELDING FOR U CHANEL &BASE

@

OTC mate OiB


6Axis Versatile Industrial Robot Arm for C Channel Back to Back welding or Fencing Extension Arm WELDING MACHINE & POSITIONING WORKING TABLE (WITH 6 SETS OF WELDING CLAMPING JIG/FIXTURE for Angle Type and Curve Type Extension Arm), 3 sets for Angle Type Extension Arm + 3 sets for Curve Type Extension Arm

@

Gantry robot Welding Line For GATES

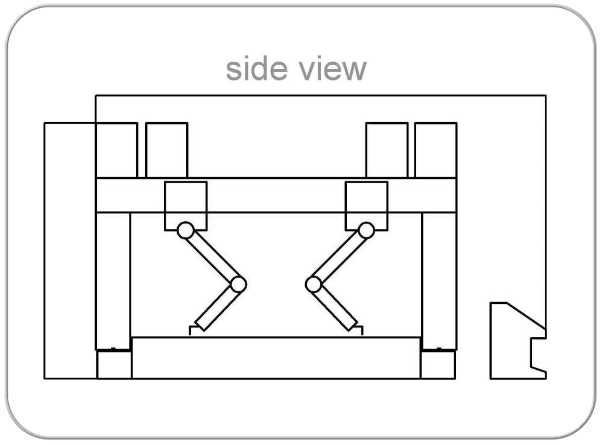

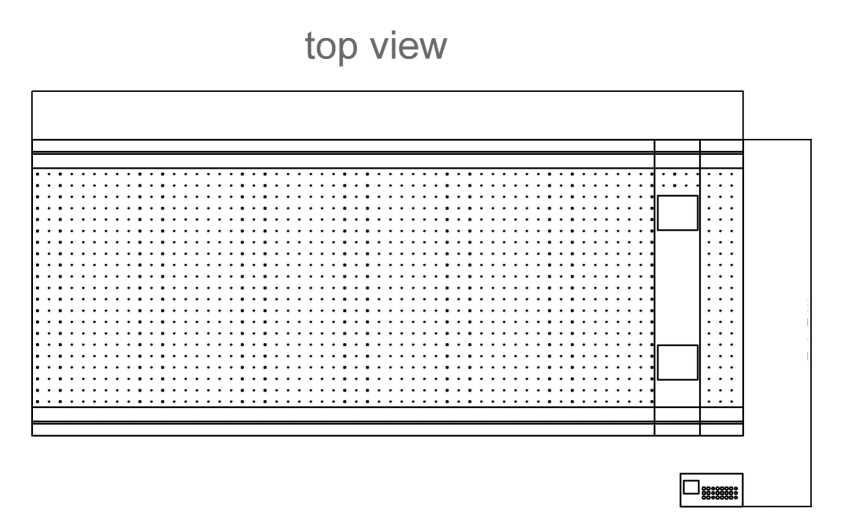

Gantry robot Welding Line  layout

Composition of production line:

@

1.OTC ARC WELDING ROBOT ARM: 2 sets

2.Plano type Gate Structure Robot Arm Slide Table : 1 set

3.One robotic arm including:

  3.1 OTC Welding Machine : 1 set (total: 2 sets)

  3.2 Teach Pendant : 1 set (total: 2 sets)

  3.3 FD-11 ROBOT CONTROLLER for OTC Robot Arm: 1 set (total: 2 sets)

4. Welding Working table size: 12.5M(L) x 4.2M(W) : 1 set

5. Controller for Plano type Gate Structure Robot Arm Slide Table: 1 set

@

Specification:

  • Suitable Material: Carbon Steel, Mild Steel, Aluminum, Stainless Steel, Galvanized Steel

  • Suitable gate size (Maximum): 12M(L) X 4M(W) X 1.5M(H)

  • In this proposal we designed using 2 units of Japan Daihen (OTC) brand Robotic arms both mounted on same Plano Type Gate Structure and fixed on a 12M tracking rail. Under the robots are 2 sets of gate welding fixtures, each 6M in length. Robots are the latest 2017 version FD-V6L Model, with has longer reach to cope with different sizes of cable ladder dimensions (specified on above Technical Description) and each robots has individual Japan OTC brand CO2 MIG welding machine and individual teach pendant for programming.
