ROOFING roll forming
machine |
|
Roof |
|
tile |
|
Double Layers |
¡@ |
|

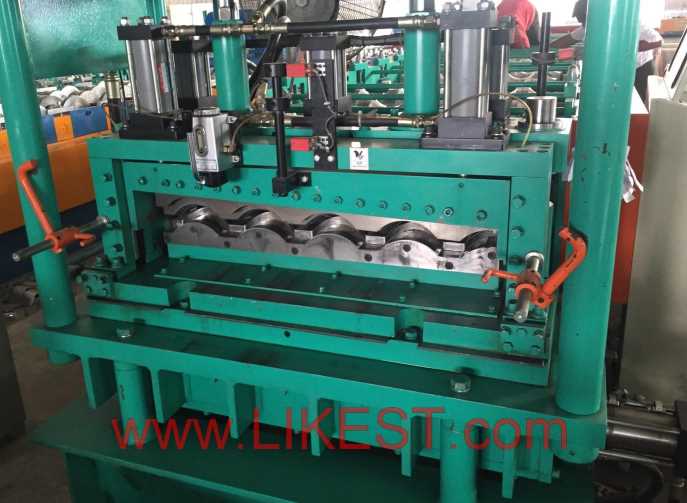

Full Automatic Roofing Corrugated
sheet / Trimdek Roofing Roll forming
Machine |
|
Specifications:
²
MATERIAL THICKNESS : 0.3 ¡ã
0.8 mm
²
MATERIAL WIDTH : 1220 mm ¡ã
1250 mm
²
FINISHED PRODUCT WIDTH : 1000 mm¡ã1050
mm
Forming process:
Decoiler è
Roll forming è
Cut to length
è
Run out rack
composition
of
production line
A. HYDRAULIC
SINGLE HEAD TYPE UNCOILER¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K.¡K 1 set
B. ROLL
FORMING MACHINE¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K1 set
C. HYDRAULIC
AUTOMATIC CUTTING MACHINE¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K 1 set
D. SPECIAL
DESIGN HYDRAULIC SYSTEM FOR MAIN MACHINE¡K..¡K1 set
E. ELECTRICAL
CONTROL PANEL for ROLL FORMING MACHINE¡K.. 1 set
F. RUN OUT
RACK¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K. 1 set
Feature:
We can
according to user requirements, design and manufacture all
kinds of the Corrugated Sheet Roll Former for ROOFING PROFILES:
Corrugated Roofing, Trimdek, Kliplok, Spandek. |
|

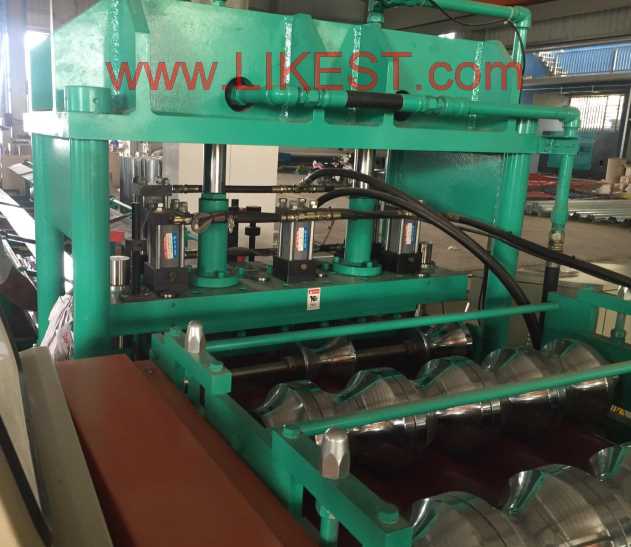

Roofing Tile Roll Forming Machine |
|
Forming Process:
Decoiler è
Roll forming è
Press
è Cut
to length
è
Run out rack
composition
of
production line
A. HYDRAULIC
SINGLE HEAD TYPE UNCOILER¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K.¡K 1 set
B. ROLL
FORMING MACHINE¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K1 set
C. HYDRAULIC
PRESSING SYSTEM¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K 1 set
D. HYDRAULIC
AUTOMATIC CUTTING MACHINE¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K 1 set
E. SPECIAL
DESIGN HYDRAULIC SYSTEM FOR MAIN MACHINE¡K..¡K1 set
F. ELECTRICAL
CONTROL PANEL for ROLL FORMING MACHINE¡K.. 1 set
G. RUN OUT
RACK¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K. 1 set

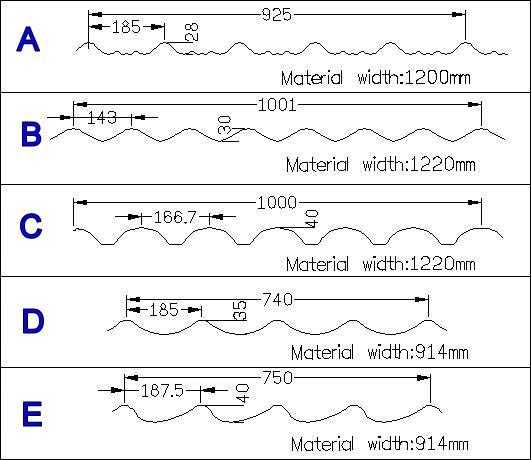

Profile:
|
|

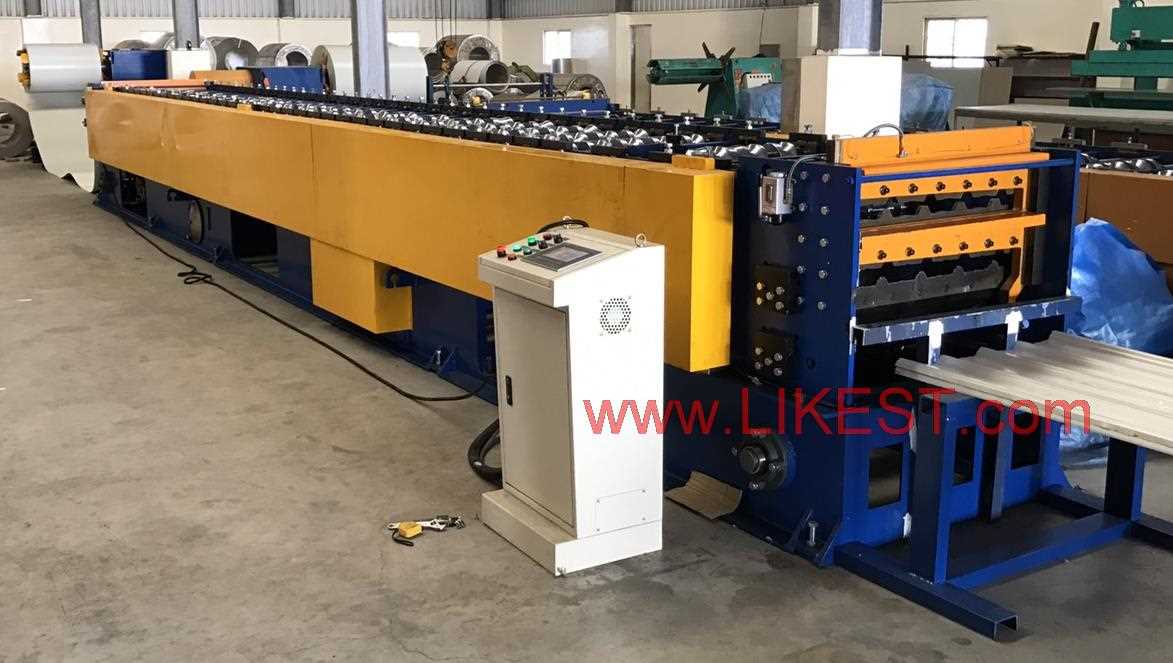

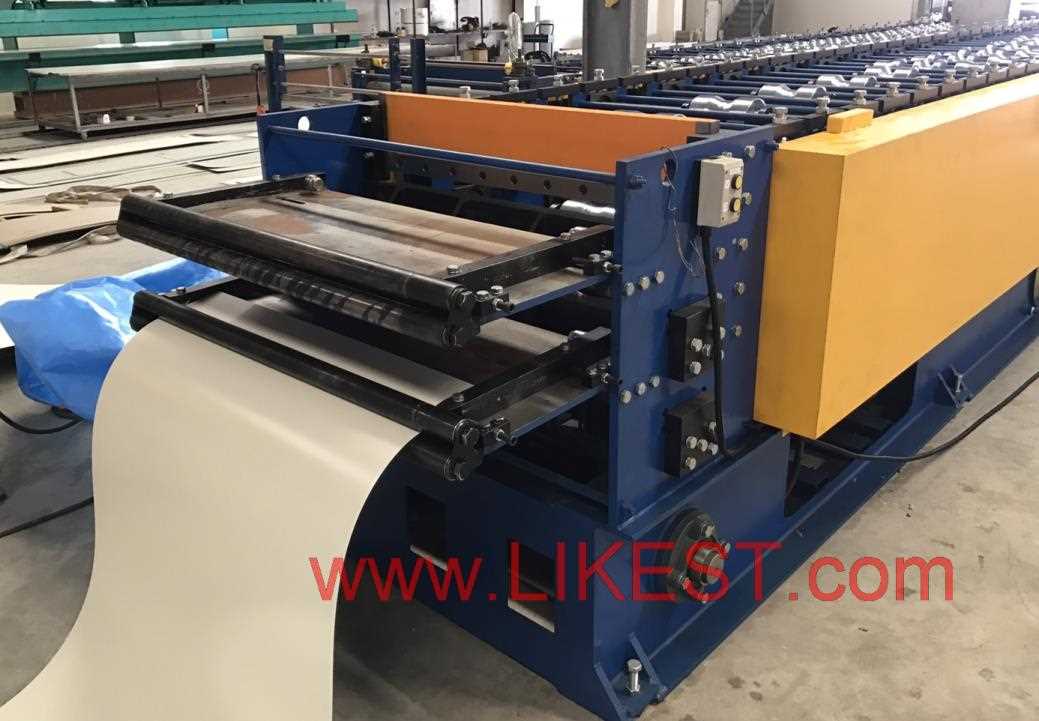

Double layer roofing roll forming machine |
|
Specifications:
²
MATERIAL THICKNESS : 0.3 ¡ã
0.8 mm
²
MATERIAL WIDTH : 1220 mm ¡ã
1250 mm
²
FINISHED PRODUCT WIDTH : 1000 mm¡ã1050
mm
²
One STAND produces one profile at one time.
Forming Process:
Decoiler è
Roll forming è
Cut to length after forming è
Run out rack
composition
of
production line
A. HYDRAULIC DECOILER¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K..¡K.. 1 set
B. FLAT-SHEET
CUTTING ¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K...¡K¡K 2 sets
C. ROLL
FORMING MACHINE¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K..¡K.. 1 set
D. SPECIAL
DESIGN HYDRAULIC CUTTING MACHINE¡K¡K¡K¡K¡K..¡K. 2 sets
E.
SPECIAL DESIGN HYDRAULIC SYSTEM FOR MAIN MACHINE¡K.. 1 set
F.
ELECTRICAL CONTROL PANEL for ROLL FORMING MACHINE¡K.. 1 set
G. PNEUMATIC
TYPE RUN OUT RACK¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K¡K. 1 set
¡@ |
|
|
