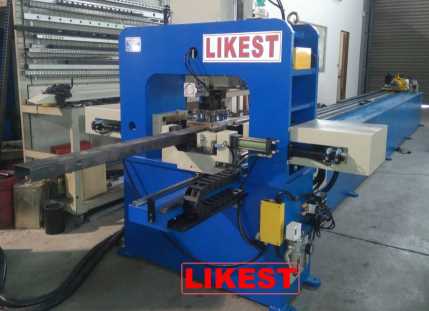

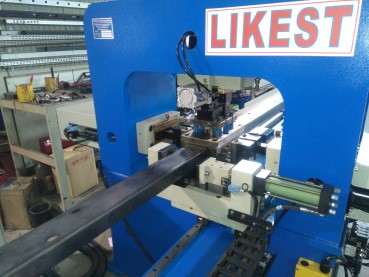

U-Channel punching machine for solar cell stand




  • 17 Tons Hydraulic Cylinder * 3 sets (Top / Left / Right)

  • Three Hydraulic Cylinders Automatic Tube Punching Machine with 3 Punching Heads  (2 Horizontal and 1 Vertical) and Rotation Servo Motor (option).

  • This machine can punch 9 kinds (or 7 kinds or 3 kinds) different holes (or above) on the same profile/channel/tube. Coupled / Combined with a special design patent shifting feature, it is able to punch from 3 to 9 different tool shapes in 3 different directions (vertically and from both horizontal sides).  So you can punch DIFFERENT Hole Size and Shape on UPN Channel or any Profile without change the mold.

  • Option : With Y-Axis [FEED] & B-Axis [Rotate] Servo Motors which can clip the tube & ROTATE the tube to punch the holes in the different angles

  • Option : It allows to punch at the edges of the tube material and leaving practically no leftover or crop waste in the stock material.

  • Option : Automatic Loading and Unloading System

  • With 3 sets Power Press (Punching Device with Hydraulic Cylinder) + Dies + Auto Feeder

  • FULL automatic punching for C-Channel and TUBES

  • NC Digital Dual Cylinder Linear Pipe/Tube Punching Machine (Puncturing Machine with Servo Motor) for Rectangle Tube/Round Tube/Circle Tube/Square Tube/Ellipse Tube/Perforation

  • Punching Capacity: Hydraulic punching machine with 2 Horizontal Heads and 1 Vertical Head, each having maximum power as follows:
    1. Top Vertical Punching Head
    2. Left Horizontal Punching Head
    3. Right Horizontal Punching Head

  • Servo Feed-in Positioner Frame for Material Length: 7000mm (SPECIAL DESIGN OR LONGER TUBES IS WELCOME) for Different variable Lengths of the tubes

  • Punching Types for Holes: Blind Hole, Through Hole, Perforation

  • Станки для пробивки отверстий в трубах и профилях


  1. TFT HMI (Human Machine Interface) Touch Display Control Systems: TFT human machine interface display, touch controllable display setting, digital control systems, servo motor position scaling precision, and modular memory function.

  2. Punching Motion types:

    2-1. Single Punching Operation

    2-2. Irregular Interval Punching (You can set irregular Center to Center distance [pitch] between holes)

    2-3. Regular Interval Punching. (You can set regular Center to Center distance  [pitch] between holes)

  3. Production Capacity: 2 seconds /hole (Single Line)

  4. The machine have an Auto feeding Function for the tubes/profiles/channels. Forward and Backward the tubes is moved by Servo Motor. You can adjust the punching speed and the feeding speed faster. Tube will be clamped by Hydraulically.

  5. For thru punch, the scrap from top hole and scrap from bottom hole will go down to the Scrap-Box.

  6. Operational Function : Jogging/Automatic Functions

  7. Hydraulic Oil System : step-less operation adjustment, hydraulic loops designed with zero load, combined with extremely low frequency oil pump motor, effectively reduced noise, increased motor efficiency and service duration

  8. Whenever the hydraulic oil cylinder is moving downward, the machine is designed with hydraulic difference driving loops rated at high or low RPM. It is also featured with high speed downward moving, low speed processing and hi-speed position resume. It is available to increase the formation stability of work pieces during puncturing. In addition  to increasing the activation speed, it can effectively reduce HP load to save electrical energy.

  9. The electrical control system is designed with human machine interface 150mm (Stroke available for positioning) the mold set is designed with 600mm in depth avail-able for forward and backward 150mm moving accessibility. Our machine is designed with the Italy-made Optic Digital Ruler (LCD display, option) with high precision.

  10. Our machine is adopted with TAIWAN-made servo motor driving devices and the feed-in and receiving speed can be set to high speed and high precision to enhance the productivity.

  11. It is featured with sufficient clamping force of clamping hydraulic cylinders and the position of word pieces is stable and uneasily loose off.

  12. Applications: Square Tube, Rectangle Tube, Ellipse Tube and Round Tube punching.

  13. Servo Feed-in Positioning Frame length :4000mm~7000mm or more (Depend on customer's request)

  14. Machine Body : 1500mm (W)*8200mm (H)*2500mm ;Total Weight :5Ton
