| JS-602U
"U" SHAPE TETRA PACK STRAW PACKING MACHINE |
 |
Features:
- The machine can
perform sharp end cutting on the straws, ensuring all sharp
ends are packed in the same direction.
- All machine speeds
are variable.
- High production
rate of 300-450 pcs/min. (JS-602U)
- Automatic machine
stop in the event of straw jamming.
- Automatic product
counting. Product quantity preset.
- Once the present
value is reached, the alarm will sound.
- All rollers are
manufactured from aluminum.
- Suction device
for sharp end waste.
- The machine is
easy to operate with minimum trouble.
|

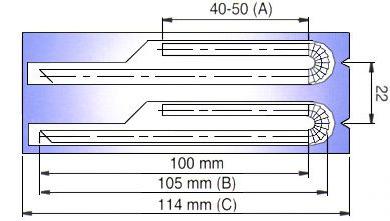

Other lengths are available Please confilm lengths
(B) and (C) when ordering. |
|
|
SHARP END CUTTING
MECHANISM
The machine
can perform sharp
end cutting on the straw without
the need for an additional
machine.This allows sharp ends
of straws to wrap in the same
direction. |
 |
SEALING
WRAPPING MECHANISM
The mechanism
performs
waste suction, pressing
and sealing operations. Copper forming pressure
roller is designed with
20 cavities.
. |
|
| MODEL |
JS-602U |
| Straw
size |
3.8mm
(dia.) x 162mm (Corrugated) |
| Packing
material |
OPP
film x 150 mm width |
| Wrapped
straw length |
105
mm |
| Speed
|
300-450
pcs/min |
| Pitch
between two straws |
21.99
mm |
| Unwind
paper core |
3"
dia |
| Driving
motor |
2
HP
x 4 P + invertor |
| Air
blower |
1/2
HP |
| Sharp
end cutting unit |
1
set |
| Waste
suction device |
1
set |
| FORMING
UNIT |
|
| Copper
forming pressure roller |
1
set (20 cavities) |
| Heater |
1450
W |
| Temperature
controller |
1
set |
| Film
take up roller with vacuum |
1
set (30 cavities) |
| (Material
: silicon) |
|
| Air
cylinder |
4.8
mm (dia.) x 8 x2 pcs |
| Punching
unit |
1
set |
| Motor
for winding |
60
W |
| Auto
counter |
1
set |
| Emergency
stop |
1
pc |
| Total
electricity |
4.1
KW |
| Machine
dimensions |
3750
x
1500 x 1700 mm |
| Machine
weight |
2000
kgs |
| All specifications and design
characteristics
are subject to change without prior notice |
|
