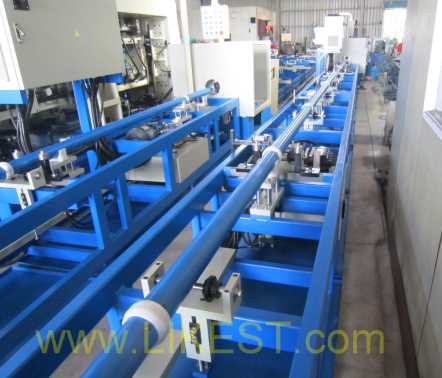

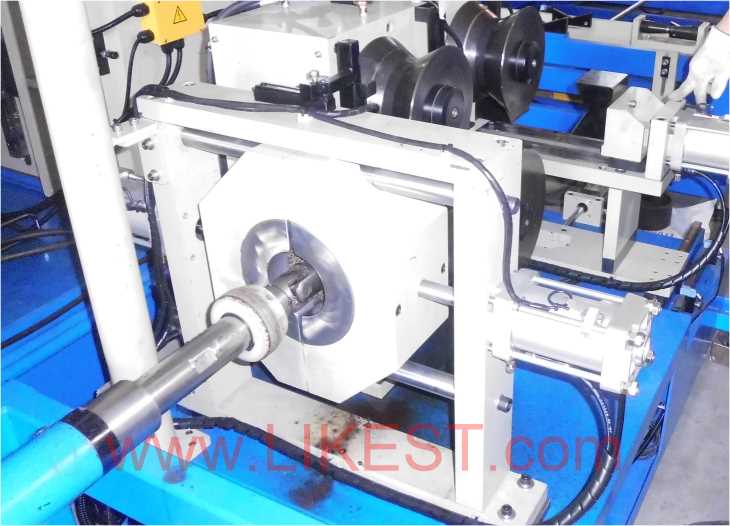

automatic Pipe/Tube deburring machine

CFPBM-40-7

Feature:

1. These machines are suitable for deburring round tubes, elliptical, oval, square or rectangular section tubular bars and rods. The deburring operation takes place on each end of both outside and inside in a single operation. The result of the process is the elimination of burrs getting slightly rounded edges.

2. NC Pipe / tube deburring machine

3. Drill Pipe thread cleaning system

4. Brush deburring machine

Specifications:

1. Air Compressor 20HP *1

2. Air Storage Tank 600L *1

3. Structure: The machine body is designed and welded with the composite assembly with robust and endurable Steel Plate. Main Machine Body is assembled by High Quality Steel Plate

4. Passive Roller *12pcs

5. Roller Holder Base *12sets

6. Active Transmission Roller *4 pcs

7. Transmission Electrical Motor: 2HP (For loading pipe and unloading pipe) : 1 set

8. Steel Brush Wheel Connection Fixture/Jig Joint

9. Automatic PLC Electrical Control Box: 1 set

10. Loading Tube Holder Rack: 12meter: 1 set

11. Unloading Tube Holder Rack: 12meter: 1 set

12. Steel Brush Transmission Motor: 10HP *1set

13. Inner Tube Steel Brush Transmission Spindle

14. Holder/Supporter*1set

15. Standard Tool Box : * 1 set

16. Diagram of Hydraulic System (English Version)

17. Component List (English Version)

18. Electrical circuit diagram (English Version)

19. Operation Manual (English Version)

Applications :

Oilfield Services Industry
