Beams,Flats & Angles-Punching and Shearing/Cutting Machines

 Станки для пробивки отверстий в трубах и профилях / станок для перфорации трубы

single Cylinder Tube Punching Machine

Dual Cylinders Tube Punching Machine

Specification (SPECIAL DESIGN IS WELCOME)

1. The machine have an Auto feeding Function for the materials. Forward and Backward the materials is moved by Servo Motor. You can adjust the punching speed and the feeding speed faster.

2. Punching Motion types:

   2-1. Single Punching Operation

   2-2. Irregular Interval Punching (You can set irregular Center to Center distance between holes)

   2-3. Regular Interval Punching. (You can set regular Center to Center distance between holes)

3. Operator Interface Terminals (HMI: Human Machine Interfaces) > Configured HMI Systems (Configured Industrial Panel with LCD, Touch screen [Touch TFT LCD Screen])

4. Controller: NC (Numerical Control), Automation

5. Production Cycle: within 1 second (The other factory conditional Punching need 6 seconds above)

6. Positioner: Servo Motor, with MEMORY SAVE POSITIONS function.

7. Electric Power: 7.5HP

8. Max. Stroke Length:150mm (Stroke Length can setting the position)

9. Throat Depth: 600mm

10. Table Adjust Distance (Front-Back): 150mm (SPECIAL DESIGN IS WELCOME)

11. Servo Feed-in Positioner Frame for Material Length: 3000mm (SPECIAL DESIGN IS WELCOME) for Different variable Lengths of the materials

12. Material Feeder/Bar Feeder/Feed-in Length: 2000mm (SPECIAL DESIGN IS WELCOME)

13. Punching Unit Dimension (Apr.): 1300*700*200mm (L*W*H) SPECIAL DESIGN IS WELCOME

14. Machine (Net Weight): 6800 kg

15. Hydraulic Punching Pressure: 50Ton/100Ton  (SPECIAL DESIGN IS WELCOME)

16. Special Punching Function:

Features

• Punching and shearing systems for flats and angles

• FT human machine interface display ,touching controllable screen setting, digital control systems, servo motor positioning dimension precision, attached with modular memory functions.

• Structure: The body frame is designed with the composite assembly with robust and endurable spare parts.

• Operation Function: Jogging/automatic Functions

• Engineering Motion Classification:1、single punching operation, 2、irregular interval punching ,3、regular interval punching

• Oil Hydraulic System :step-less operation adjustment ,hydraulic loops designed with zero load ,combined with extremely low frequency oil pump motor ,effectively reduced noise , increased motor efficiency and service duration

• Whenever the oil cylinder is moving downward , the machine is designed with featured like low RPM. It is also featured with high speed down ward moving ,low speed processing and hi-speed position resume so that it is available to increase the formation stability of work pieces during puncturing.

• The electrical control system is designed with the human machine interface .The distance adjustment is designed with scaling positions, start distance marks, low speed position marks, and low extremity position .it is available for precise and comprehensive operation.

• Hydraulic Cylinder Stroke 150mm （Stroke available for positioning）the mold set is designed with 600mm in depth available for forward and backward 150mm moving accessibility .Our machine is designed with the Italy –made digital scale (LCD Display) with high precision.

• Application :Angle steel ,grooved steel and flat steel cutting(45°)and  puncturing

• Servo Position Frame Length :3000mm Feed –in Frame Length:2000mm (Standard)

• Body:1500mm (L):6500mm （W）:2000mm （H）Total Weight: 6.8T

Applications (SPECIAL DESIGN OR BIGGER PRODUCT SIZE IS WELCOME)

Our Tube Punching Machine can save UNLIMITED punching programs to USB Disk. And our Tube Punching Machine is suitable for the Frames, Supermarket Shelving, Department Stores, DISPLAY SYSTEM, Supermarket Display Racks, Fencing and Handrails, Form work, SCAFFOLDING, outdoor play equipment (ladders) project, Furniture for Home / Kids folding deck chair / beach chair , Shop fitting, Furnace, TV-brackets, Furniture production, Stand in the Kitchen Accessories, Pallet Rack Systems, Cantilever Racks, Pushback Racks, Supermarket Racks, Pallet Rack Systems, Gas Burner, Automotive Industry (Dashboard), Radiators, Furniture, parts of the sofas (beds), Electrical Power Transmission Poles (Tubular Poles and Lattice Poles),Towers (Telecommunication Lattice Towers and High Tension Power Transmission Towers), Supermarket Shelving, Shelving System, Working with stand in the supermarket, Construction industry, the Office Furniture, robust and safe Shop fitting solutions, Frame, playground equipment, Table Leg, Table type, Department Stores, Plant Shelves, Scaffolding (Ring Lock & CUP Lock), Display Stand, Tours, Frame Systems, Props, Accessories, Horse stalls, Supermarket Shielding, Mobile Shelving System, Schools (tables and chairs), Poultry Building System, Cable Tray, the part of V.C.D. (Volume Control Damper) for Central, Decorative Shelf and Hanging Systems and its components, Bed, Ladders, Truck Body Builders, Metalworking Industries Manufacturing for Automotive Manufacturing, Gas Stove, Power Energy and Electrical Wire Distribution, Solar System, Racking and Shelving and base of your Custom Signs, Electronic Displays, Resorts & Casinos, Outdoor Media and Repairs & Maintenance, High Volume and different purpose Punching for Square Tube / Rectangle Tube / Round Tube / Circle Tube / Ellipse Tube / Perforation and much more.....so you can expand your business to many fields.

Plates-punching and cutting machines for Telecom Tower, Mast, Monopole, BTS Shelter, OF Cabling, Transmission Tower Structural Members Manufacturing Plant, MOBILE SHELVING SYSTEM, Bed, Furniture, Scaffolding (Ring Lock & CUP Lock, Tours, Frame Systems, Table type, Props, Accessories), LADDERS, truck body builders, display stand, metalworking industries manufacturing for Automotive Manufacturing,Gas Stove, power energy and electrical wire distribution, Racking and Shelving and base of your Custom Signs, Electronic Displays, Resorts & Casinos, Outdoor Media and Repairs & Maintenance, high volume and different purpose punching for Rectangle Tube/Round Tube/Circle Tube/Square Tube/Ellipse Tube/Perforation and much more......

For 12meters length materials (Beams, Flat Iron & Angle Steel....), application for Electricity Tower/Electricity Pole/Electrical Tower/BTS Tower/Lighting Pole/Transmission Tower Structural Members Manufacturing Plant, Metal Scaffolding Making Forming Machine......

Round Tube:               1"~6inch (25.4 ~150mm) Square Tube:              25*25~106*106mm(1"~4.17inch) Rectangle/Oblong Tube:                 20*40~75*130mm Ellipse Tube:                 20*40~75*130mm	Electricity Tower/Electricity Pole		Racking and Shelving Systems	RACK SYSTEM
	Metal Scaffolding Making Forming Machine		Fence/Fencing/Windows	Ladders

Optional Punching Die/Tooling/Mold for punching machines:

1. Single Vee Press Brake

2. Multi-Vee Press Brake

3. Angle Bending: 102*9mm

4. Rectangular Notcher

5. Vee Notcher: 145*145*10mm (Side x Side x T)

6. Pipe Notcher

7. Flat Bar Shearing: 150*16mm

8. Angle Shearing: 100*100*10mm (Side x Side x T)

9. Round Bar Shearing/Cutting: Dia. 32mm

10. Square Bar Shearing: 32/32mm

11. Channel Shearing: 102*51mm

12. Largest Hole: Dia. 160mm*3

13. Notching & Holes Punching on Steel Angle

Special Requirements Mould/Tooling/Mold is WELCOME

Angle Iron Shearing/Cutting/Bar shearing	Flat Plate Iron (Flat Bar) Shearing/Cutting	Channel Shearing/U Beam Iron Shearing/Cutting	Punch Hole for Angle Iron/Flat Plate Iron
Punch Hole for U Beam	Triangle (45 degree) Shearing/Cutting/Notching	Rectangular Notcher

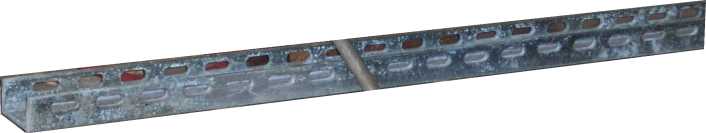

Punching Samples:

Punching Machine Operation:
