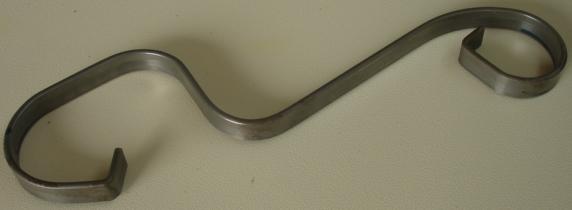

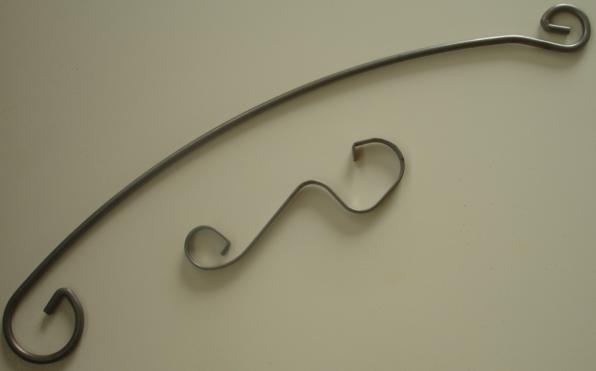

CNC Bend Wire Forming Machine CS-100 NEW

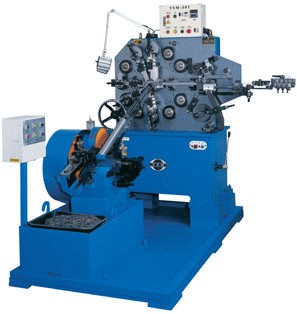

CF-30TT Automatic Forming Machine with Thread Rolling Machine
|
MODEL |
CF-30T + Thread Rolling Machine |
|
Length of Wire Feeding |
200mm |
|
Hardness of Wire (CARBON) |
80(CARBON) |
|
Wire Size |
0.6-3.0mm Maximum of 6.5mm available |
|
Processing Speed |
200 springs per minute |
|
Slide Power |
1500kg |
|
Motor Rating |
3HP / 3.7KW |

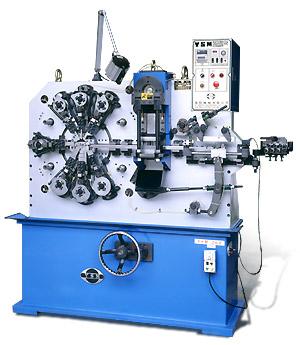

| CisFun-CNC-L26T
suit all kinds of strips and wires and it can produce all kinds of springs,
electron, electric appliances and parts of machine. To use the slide and
press to proceed process things. Even parts or spring are complex that
CisFun-CNC-L26T process just one
time. It keeps the traditional machines' advantage. It combines with computer and servo. It has been controlled by three axes. So length of wire feeding is unlimited. CisFun-CNC-L26T's range of production is wide. |
 |
 |
Gardening - Flower Stands - Furniture, Gates, Fences
|
MODEL
|
CisFun-CNC-L26T | |
| Breed processing | Wire Size (Wire Diameter) | 0.6-2.5mm |
| Width of Strip wire | 30mm | |
| Thickness of Strip Wire | 0.3-1.2mm | |
| Hardness of wire | 80(CARBON) | |
| Length of wire Feeding | No Limit | |
| Processing Speed | 200 pcs/min | |
| Pressure | Punching Pressure | 8.5 TON |
| Slide Power | 1.5 TON | |
| Processing Type | Slide Type | 37 mm |
| Press Processing Type | 12 mm | |
| Power | Cam Axis | 4.5HP(3.5KW) |
| Feeding Axis | 2.0HP(1.5KW) | |
| Press | 4.5HP(3.5KW) | |
| Coil Heat | 0.5HP(400W) | |
| Machine | Appearance Size | 2250x780x1800m/m |
| Weight | 2500kg | |
|
 |
 |
| MODEL | CisFun-L26T |
| Length of wire Feeding | 200mm |
| Hardness of wire | 80(CARBON) |
| Wire Size | 0.6-2.5mm |
| Width of Strip wire | 30mm |
| Thickness of Strip Wire | 0.3-1.2mm |
| Punching Pressure | 8500kg |
| Processing Speed | 200rpm |
| Slide Power | 1500kg |
| Motor Rating | 5HP/3.7KW |
| Packing Dimensions | 1680x990x1900 m/m |
| Gross Weight | 1500kg |
