FEATURE |
|
•No:UB-001 •Foot Valve -- FIP •Stainless steel spring •Tapered stainless steel screen and cap •Non-corrosive delrin stem guide •Bronze/Brass body •Forged brass & bronze poppet •Abrasion-resistant neoprene O-ring •Machined exterior •200 WOG •Size:1/2"~4"(3"~4" Bronze body only) |
|
 |
FEATURE |
|
•No:UB-003 •Foot Valve -- FIP x MIP •Stainless steel spring •Tapered stainless steel screen and cap •Non-corrosive delrin stem guide •Bronze/Brass body •Forged brass poppet •Abrasion-resistant neoprene O-ring •Machined exterior •200WOG •Size:1"x 1/4" ¡@ |
|
 |
FEATURE |
|
•No:UB-007 •In-Line Check Valve •FIP X FIP •Stainless steel spring •Non-corrosive delrin stem guide •Bronze/Brass body •Forged brass & Bronze poppet •Abrasion-resistant neoprene O-ring •Machined exterior •200WOG •Size:1/2" ~ 4"(3"~4" Bronze body only) •Can be used in both vertical and horizontal •postitions. ¡@ |
|
 |
FEATURE |
|
•No:UB-008 •In-line Check Valve •FIP x FIP •Stainless steel spring •Non-corrosive delrin stem guide •One 1/8" NPT tapping on inlet •Bronze/Brass body •Abrasion-resistant neoprene O-ring •Machined exterior •200WOG •Size :1"&1/4" ¡@ |
|
 |
FEATURE |
|

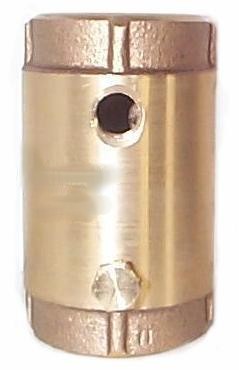

•No:UB-009 •In-line Check valve •FIP x FIP •stainless steel spring •Non-corrosive delrin stem guide •One 1/8" NPT tapping on inlet and on •1/4"NPT tapping on outlet •Bronze/Brass Body •Forged brass poppet •Abrasion-resistant neoprene O-ring •Machined exterior •200WOG •Size:3/4"~1 1/4" ¡@ |
|
|
|
FEATURE |
|
•No:UB-010 •In-line check valve •Control Center •FIP x FIP •Stainless steel spring •Non-corrosive delrin stem guide •Bronze/Brass body •Forged brass poppet •Abrasion-resistent neoprene O-ring •Machined exterior •200WOG •Size:3/4"~1 1/4" ¡@ |
|
 |
FEATURE |
|
•No:UB-011 •In-line Check Valve •FIP X MIP •Staninless steel spring •Non-corrosive delrin stem guide •Bronze/Brass body •Forged brass poppet •Abrasion-resistant neoprene O-ring •Machined exterior •200WOG •Size:1"x1" & 1"x 1 1/4" ¡@ |
|
 |
FEATURE |
|

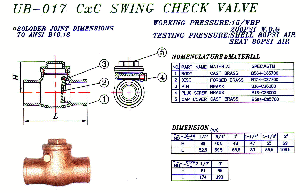

•No:UB-017 •Swing Check Valve •Solder ends •Bronze/Brass body •Forged brass disc •200WOG •Size:1/2"~3" |
|
 |
FEATURE |
|
•No:UB-018 •Swing Check Valve •Thread ends •Bronze/Brass body •Forged brass disc •200WOG •Size:1/4"~4" |
|
 |
FEATURE |
|
•No:UB-018A •Swing Check Valve •Thread ends •Brass body •Rubber seated •200WOG •Size:1/2"~4" |
|
 |
FEATURE |
|

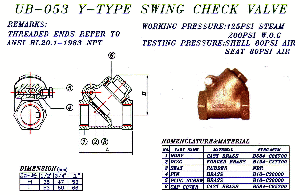

•No:UB-053 •Swing Check valve •Y pattern •Thread ends •Brass body •Rubber seated •200WOG •Size:1/2"~1" |
|
 |
FEATURE |
|

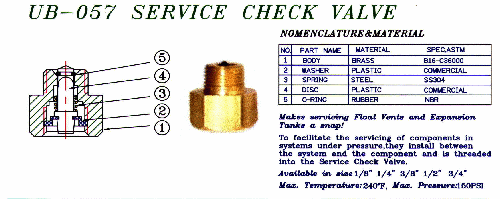

•No:UB-057 •Service Check Valve •Spring loaded •Bress body •150psi •Size:1/8"~3/4" |
