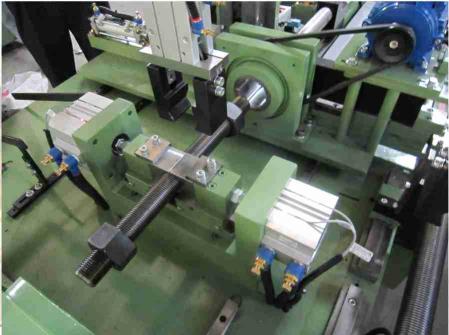

screw nut bolt
/ EPDM /PVC washer assembly machine |
|
nut tapping machine and
packaging system |
|
Screwdriver
SERIES |
|
Screwdriver Making Machine |
|
|
bar stud
series
|
 |

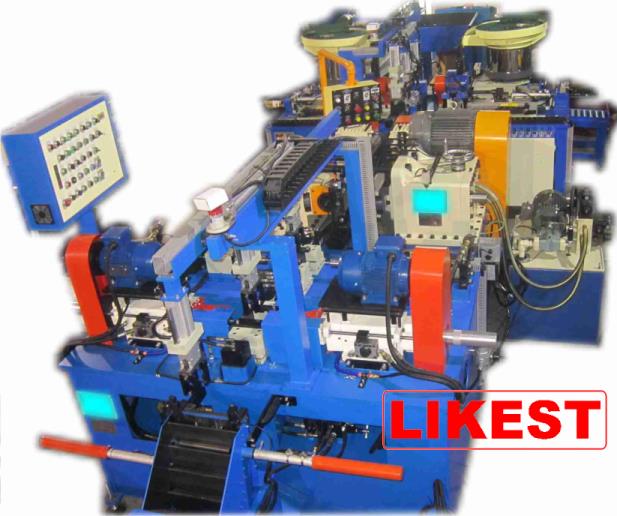

stud making marking
/ nut assembly / packaging system
    |
 |

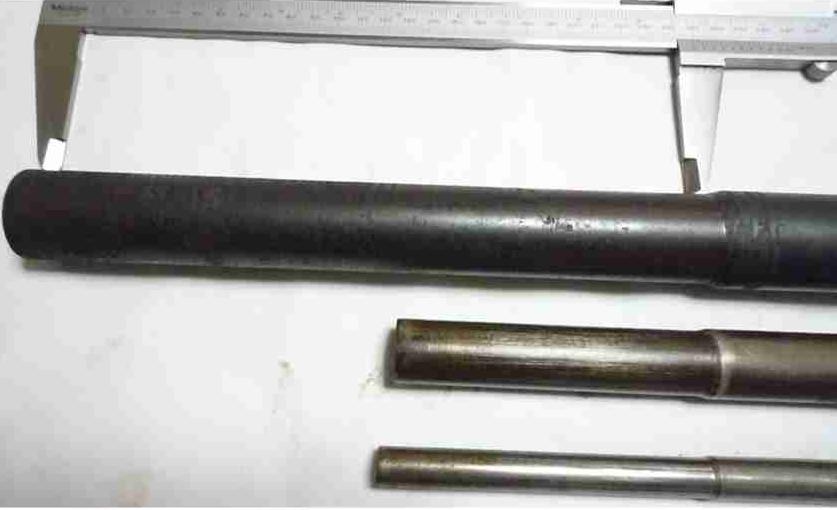

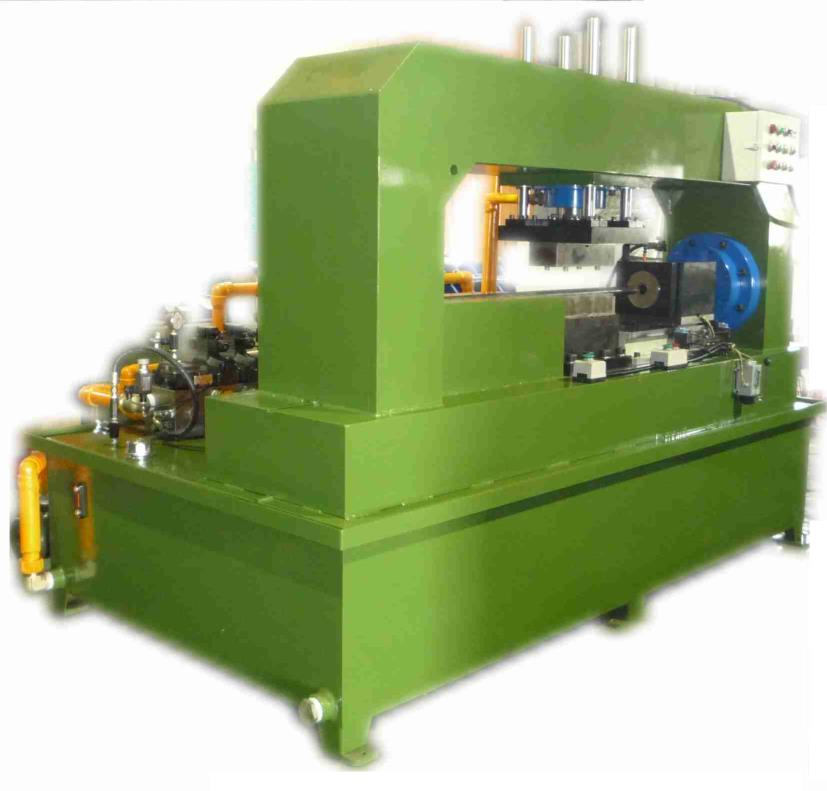

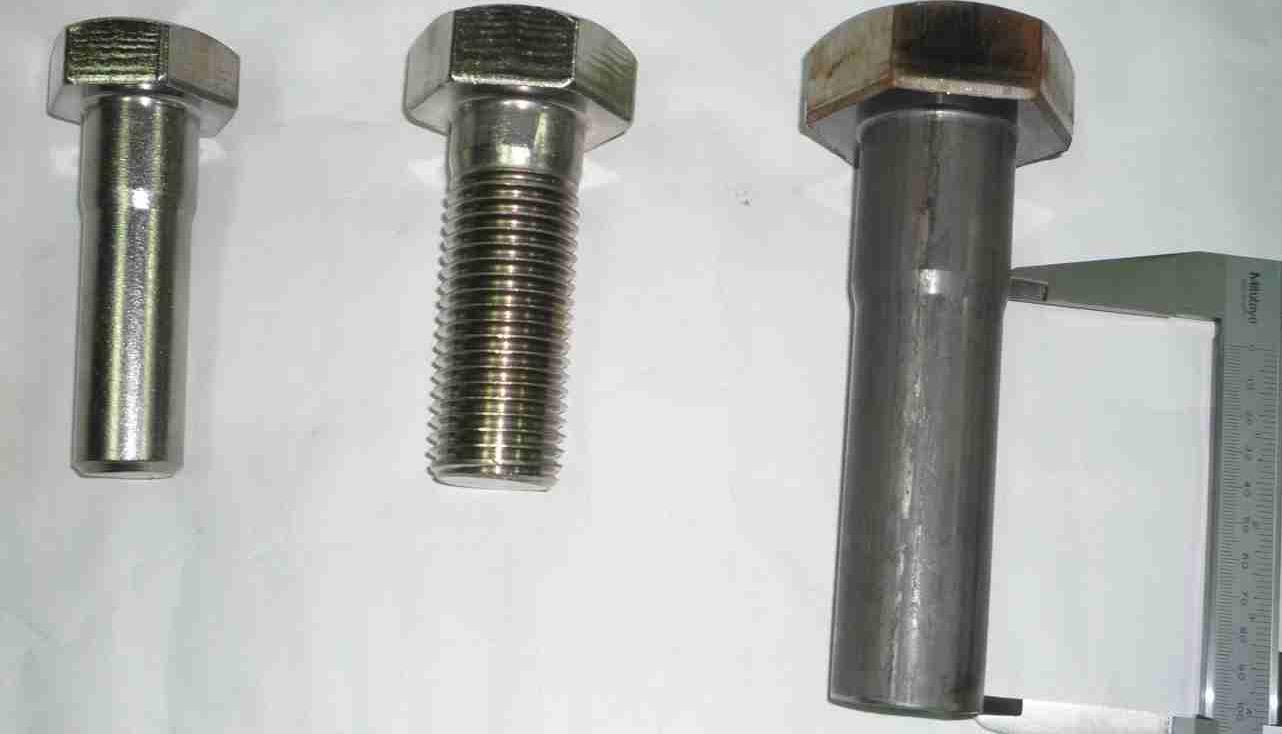

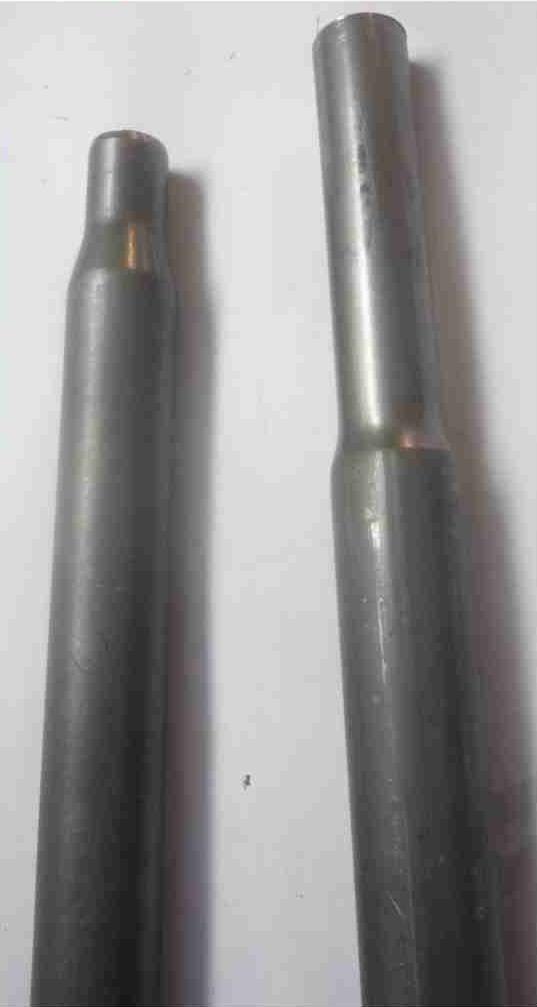

bar
stud bolt diameter reducing machine
|
 |

  |
|

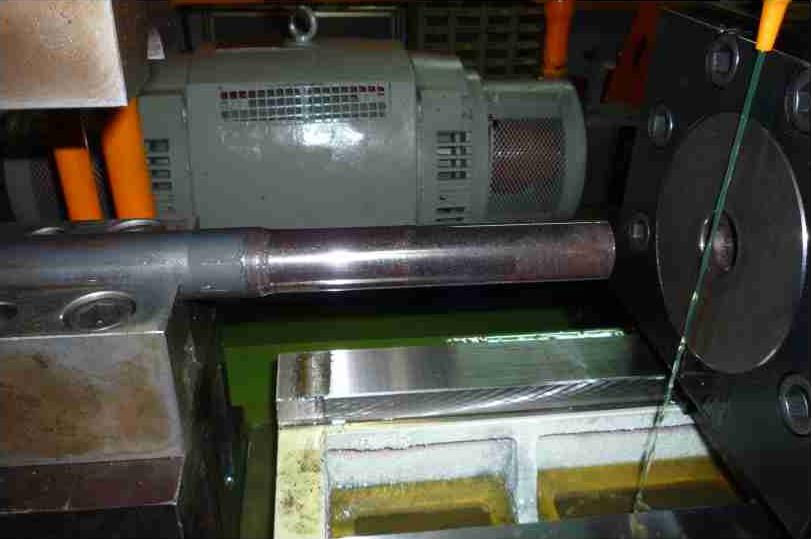

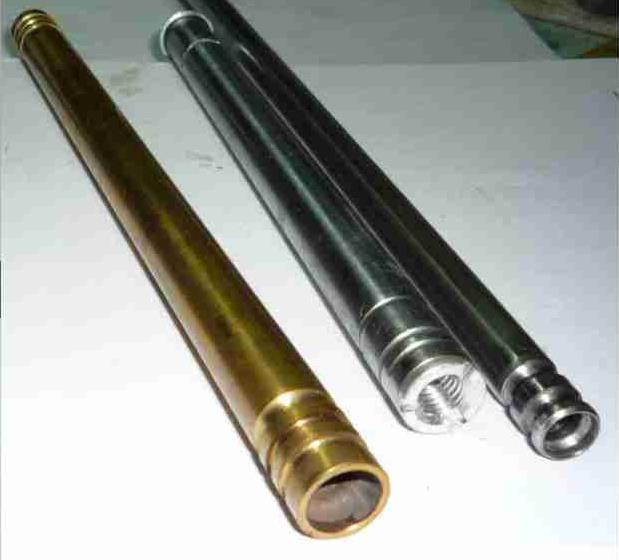

bar necking machine/pipe necking machine/tube necking
machine |
|
 |

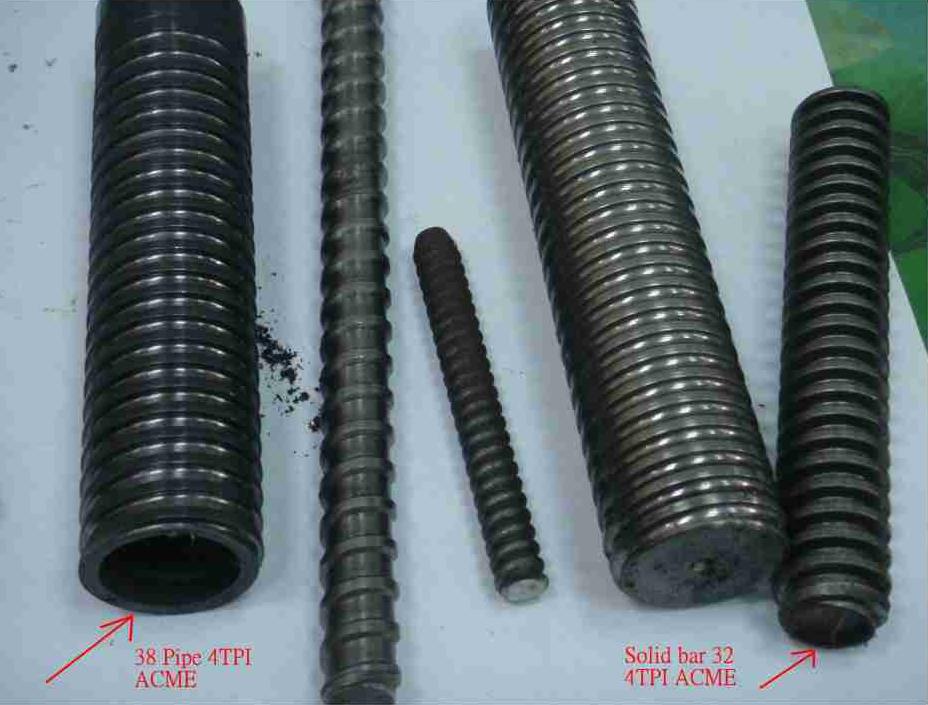

threading
rolling machine
 |
 |

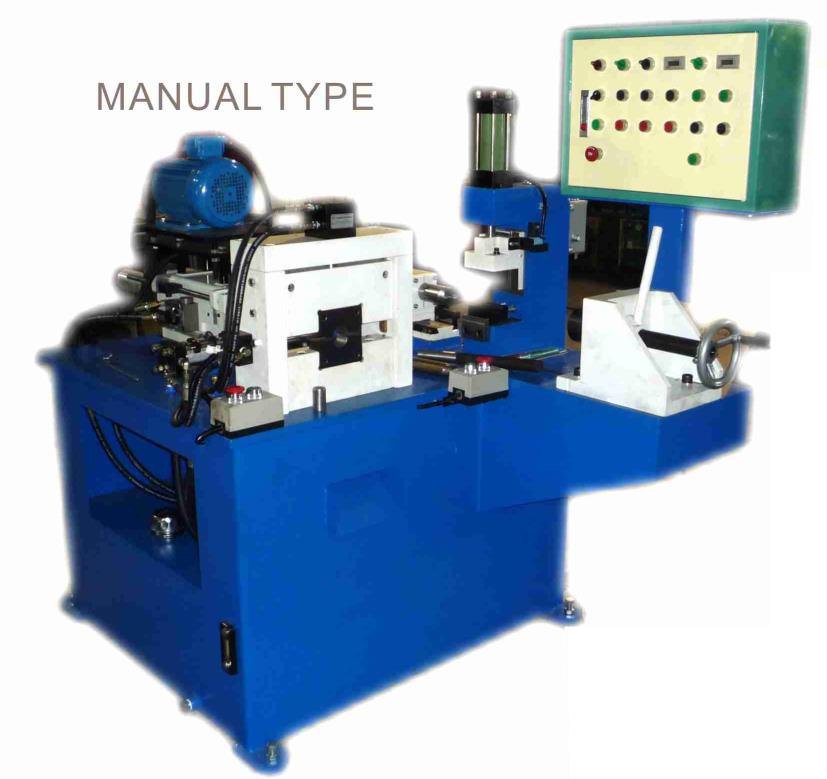

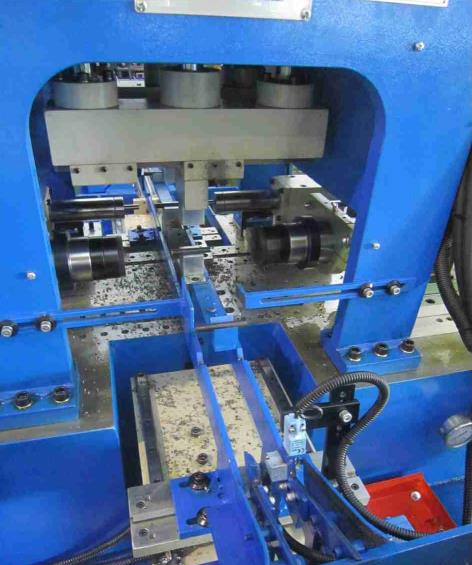

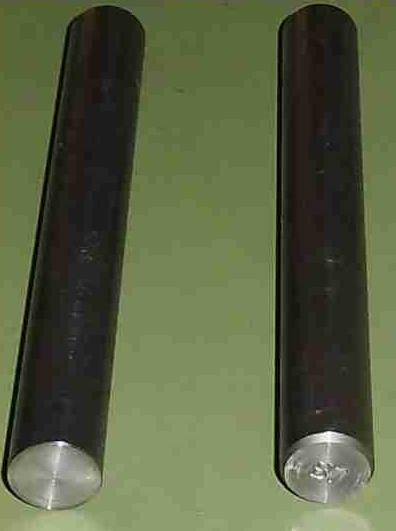

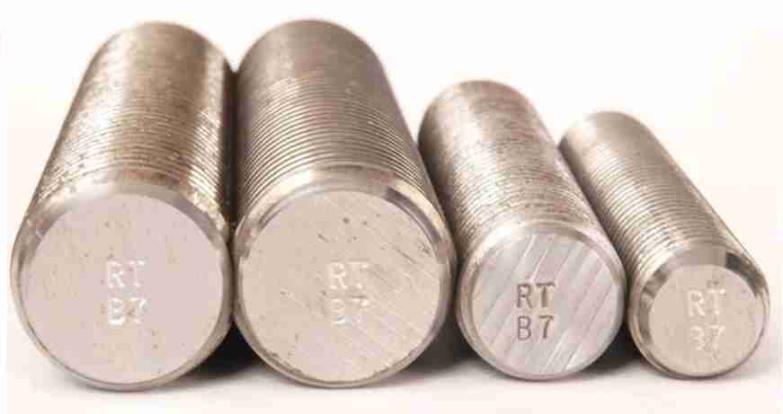

stud bar
chamfering and marking

|
 |

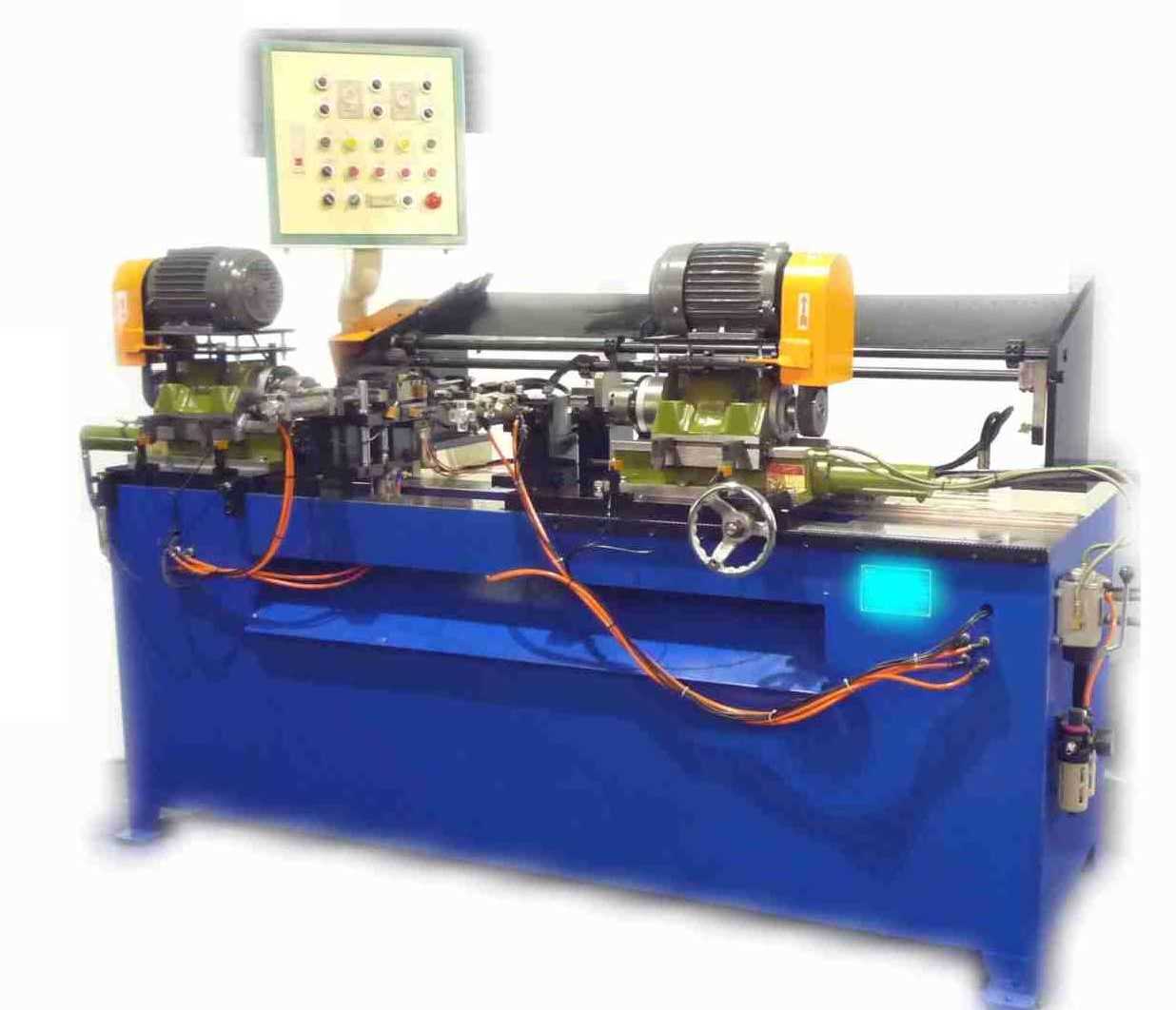

dual sides
chamfering machine
 |
 |

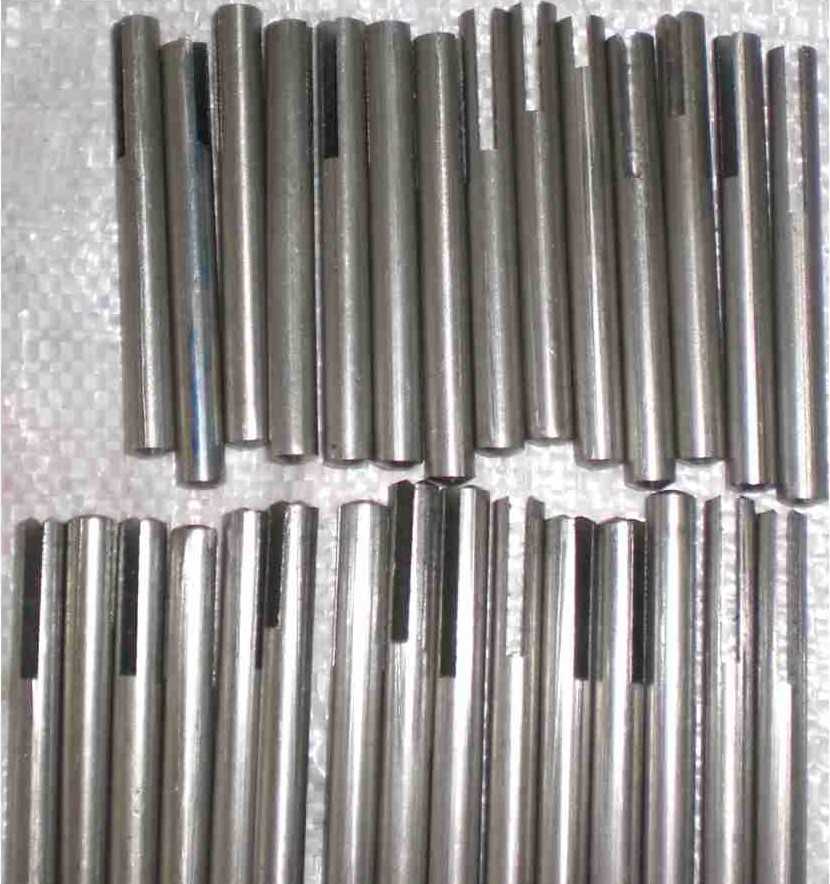

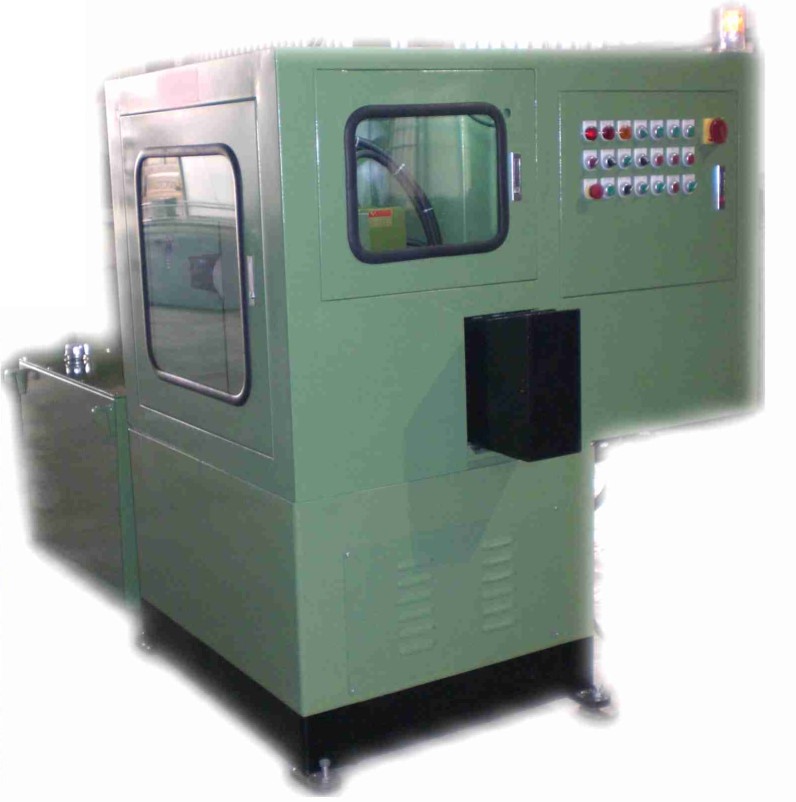

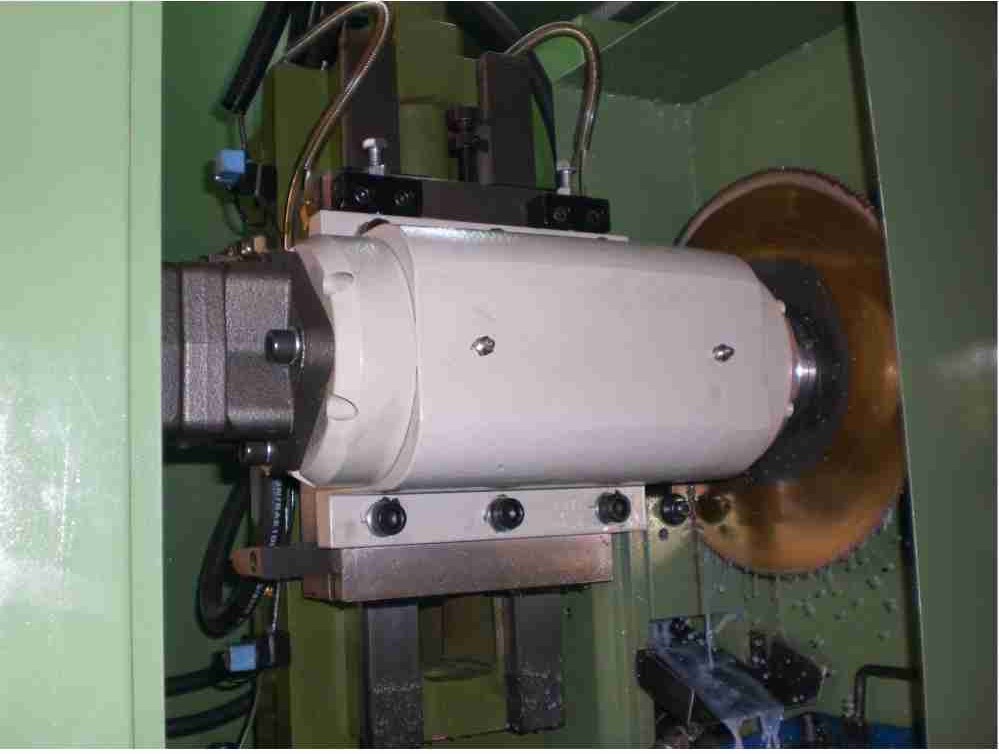

bar
end /stud /bolt /tube end slotting grooving cutting
machine
  |
|
bolt / screw SERIES |
 |

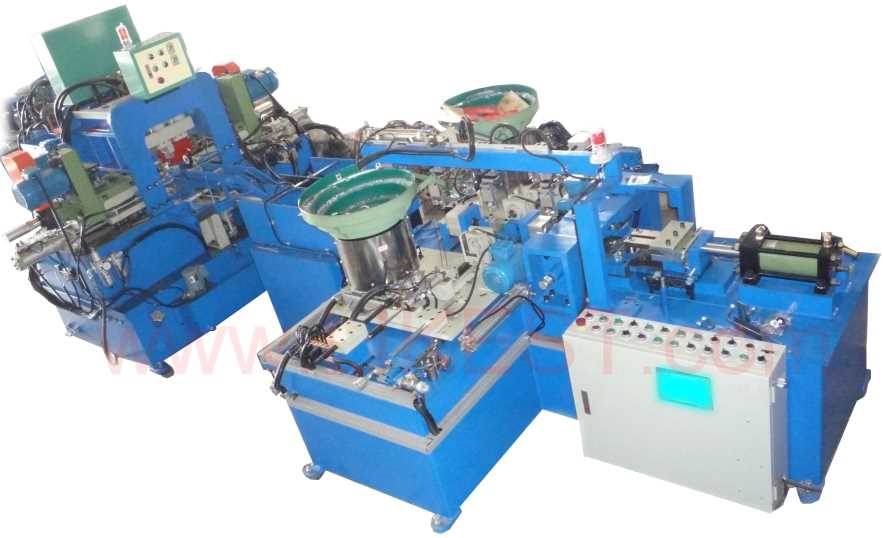

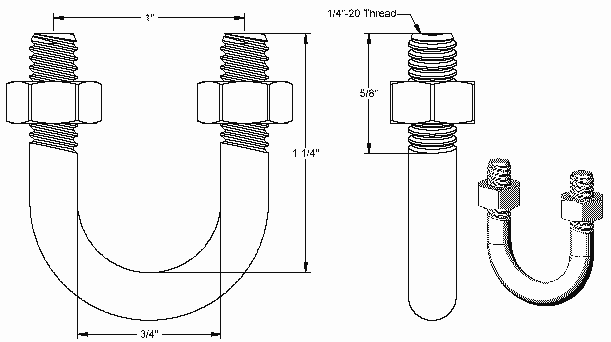

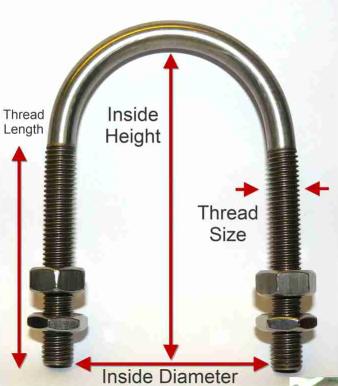

AUTOMATIC u
bolt making and nut assembly machine
 |
 |

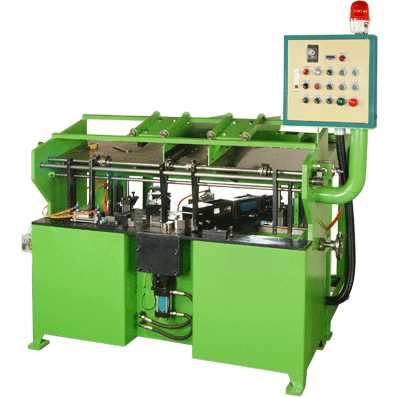

u bolt bending
machine
 |
 |

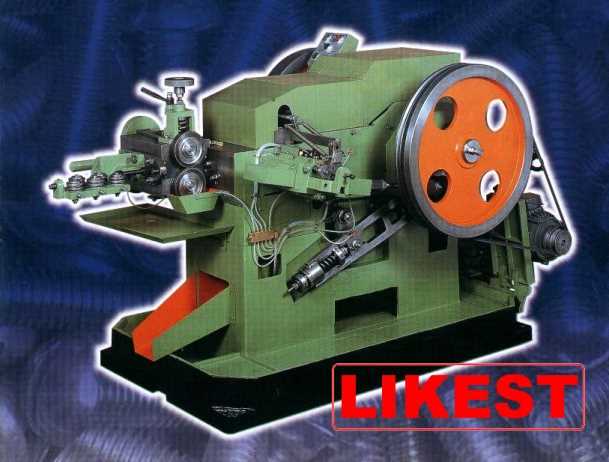

bolt / screw heading
machine
|
model |
Blank dia. max. (mm) |
Blank length max. (mm) |
stroke(mm) |
blanks per/min. |
die dia.(mm) |
cut-off die dia.(mm) |
punch due(1st,mm) |
punch due(2nd,mm) |
motor (HP) |
| CFYH-050 |
3 |
25 |
40 |
200-230 |
20 |
13.5 |
18 |
18 |
1 |
|
CFYH-100 |
4 |
32 |
60 |
180-200 |
34.5 |
15 |
26 |
24 |
2 |
| CFYH-150 |
5 |
38 |
64 |
180-200 |
34.5 |
19 |
31 |
31 |
2 |
|
CFYH-150 |
5 |
52 |
80 |
130-160 |
34.5 |
19 |
31 |
31 |
2 |
| CFYH-150 |
5 |
64 |
92 |
130-160 |
34.5 |
19 |
31 |
31 |
2 |
|
CFZH-200 |
6 |
76 |
120 |
100-120 |
45 |
25 |
36 |
36 |
3 |
| CFZH-200 |
6 |
102 |
150 |
80-100 |
45 |
25 |
36 |
36 |
5 |
|
CFZH-250 |
8 |
102 |
160 |
70-85 |
60 |
28 |
42 |
42 |
7.5 |
| CFZH-250 |
8 |
152 |
210 |
60-70 |
60 |
28 |
42 |
42 |
7.5 |
|
 |

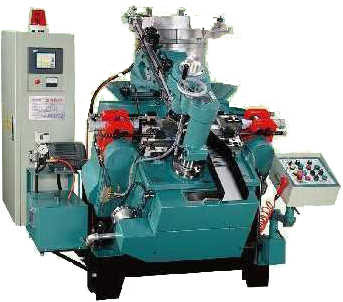

bolt / screw High Speed Pinch
Pointer
|
Model: CF-1300
|
Suitable for max. M5(3/16") screws
160W*190D*165H cm
Small model |
|
Model:
CF-2100 |
Suitable for max. M6(1/4") screws
170W*210D*165H cm
General model |
|
Model:
CF-2500L |
Suitable for max. M10(3/8") screws
210W*328D*230H cm
Heavy duty model |
|
 |

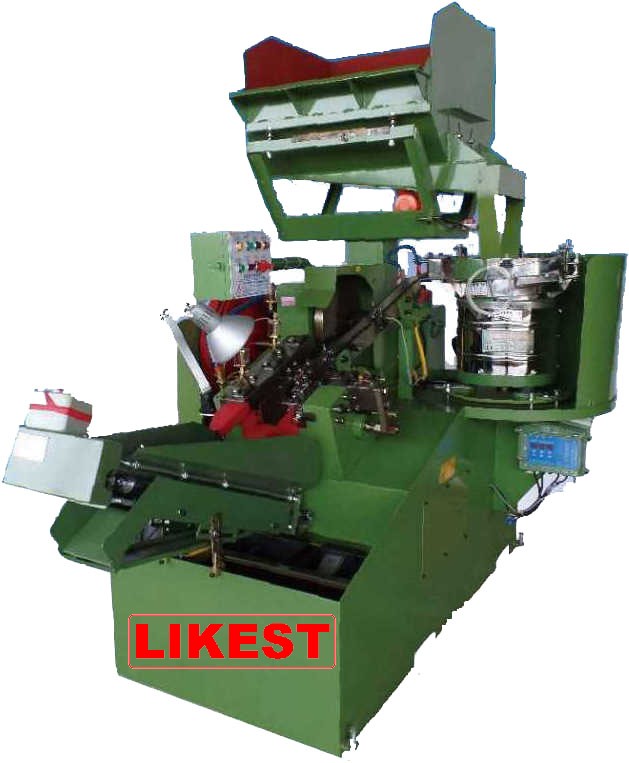

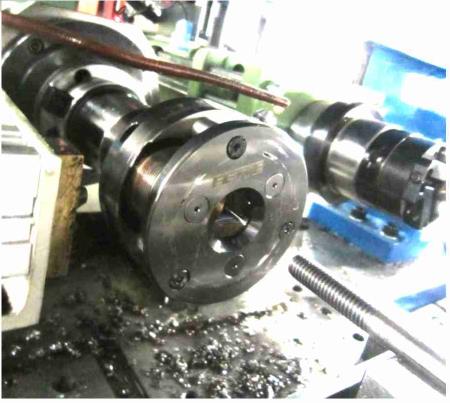

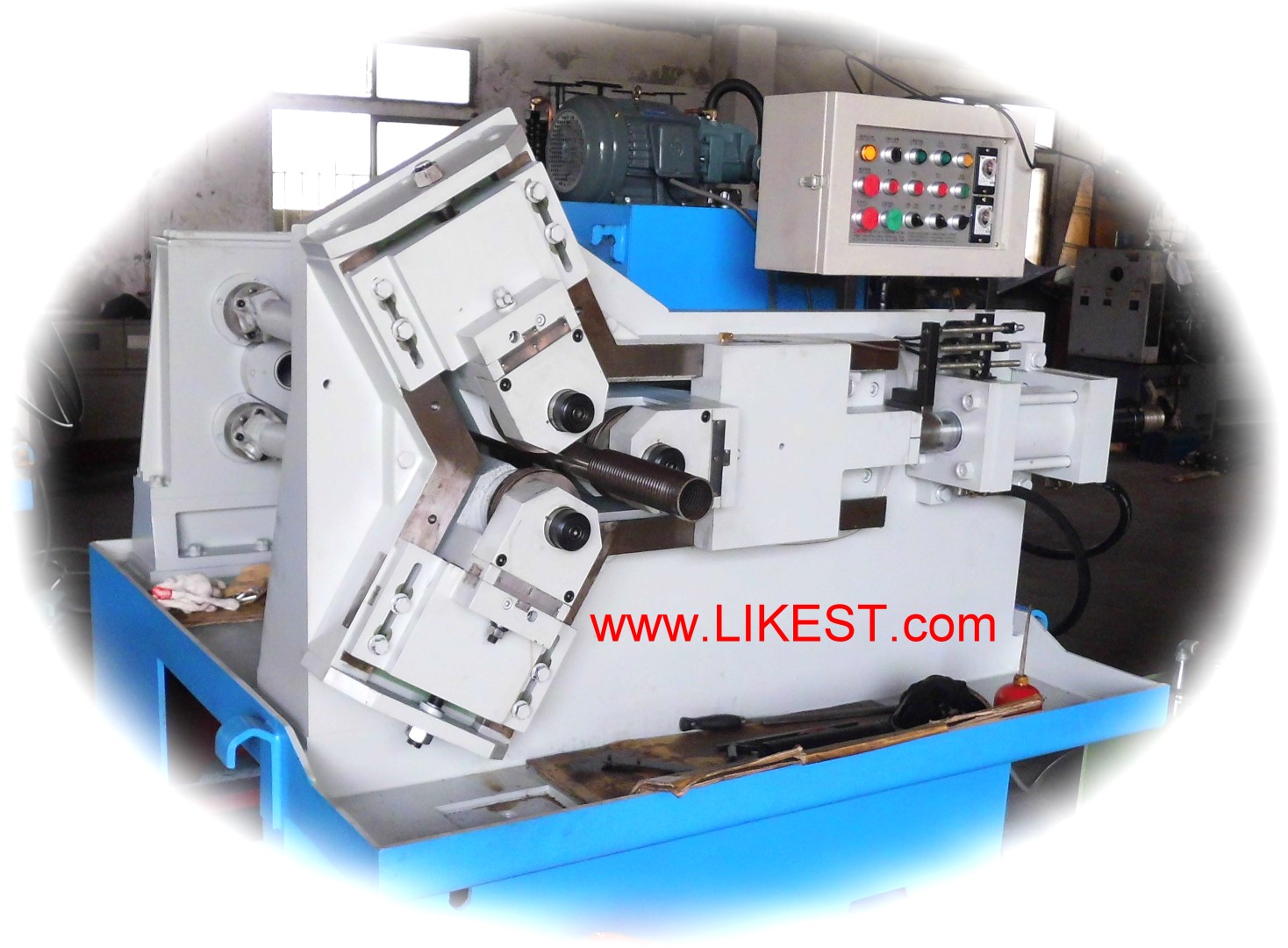

bolt / screw threading rolling
machine
|
model |
threading length (mm) |
threading dia. (mm) |
thread specifications (mm) |
production speed (pieces/min) |
motor (HP) |
| CF-15470 |
47 |
2-5 |
75*90*25 |
240-280 |
3 |
|
CF-155500 |
55 |
2-6 |
90*105*25 |
240-280 |
3 |
| CF-15650 |
65 |
2-6 |
90*105*25 |
210-240 |
3 |
|
CF-15850 |
85 |
2-6 |
90*105*25 |
160-200 |
5 |
| CF-2050 |
133 |
2-8 |
108*127*25 |
160-180 |
7.5 |
|
CF-2060 |
165 |
2-8 |
108*127*25 |
150-170 |
10 |
| CF-2560 |
165 |
2-9 |
127*140*25 |
100-120 |
10 |
|
CF-2580 |
217 |
2-9 |
127*140*25 |
80-100 |
10 |
| CF-30100 |
260 |
3-10 |
150*165*25 |
60-70 |
15 |
|
CF-30120 |
320 |
3-10 |
150*165*25 |
50-60 |
20 |
|
 |

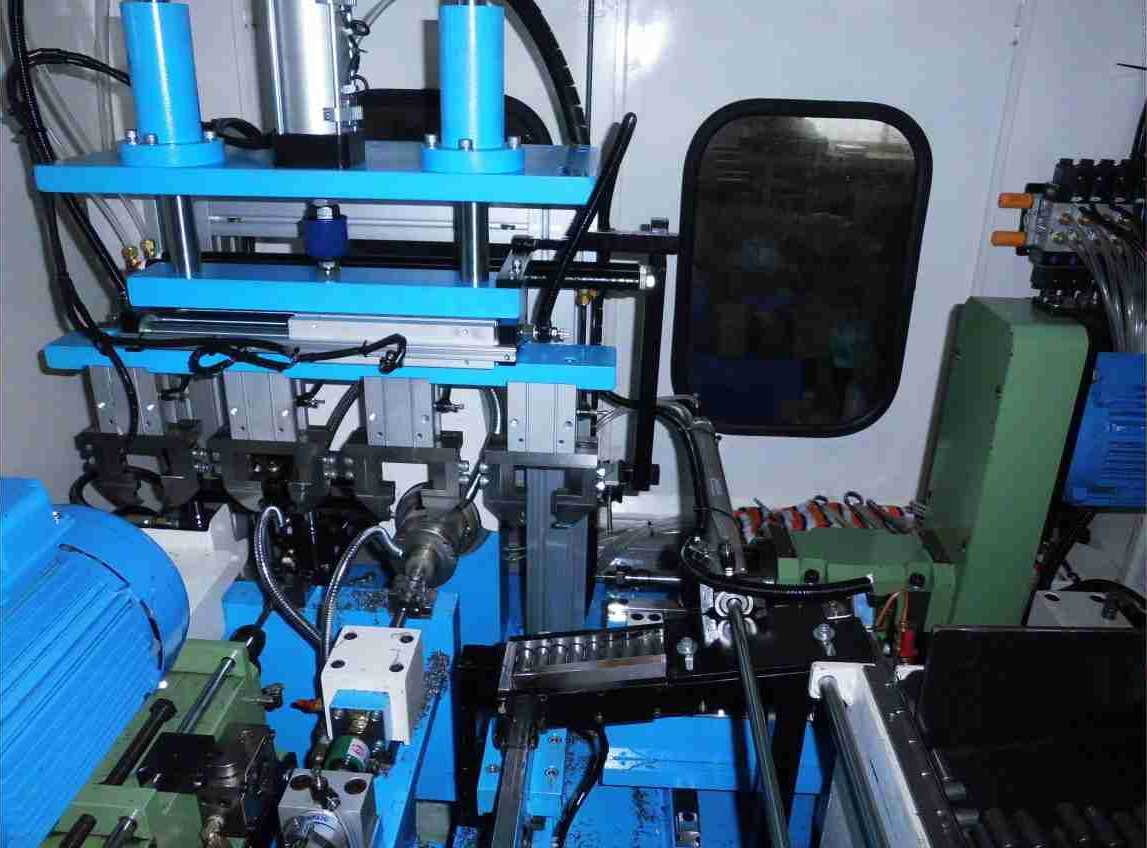

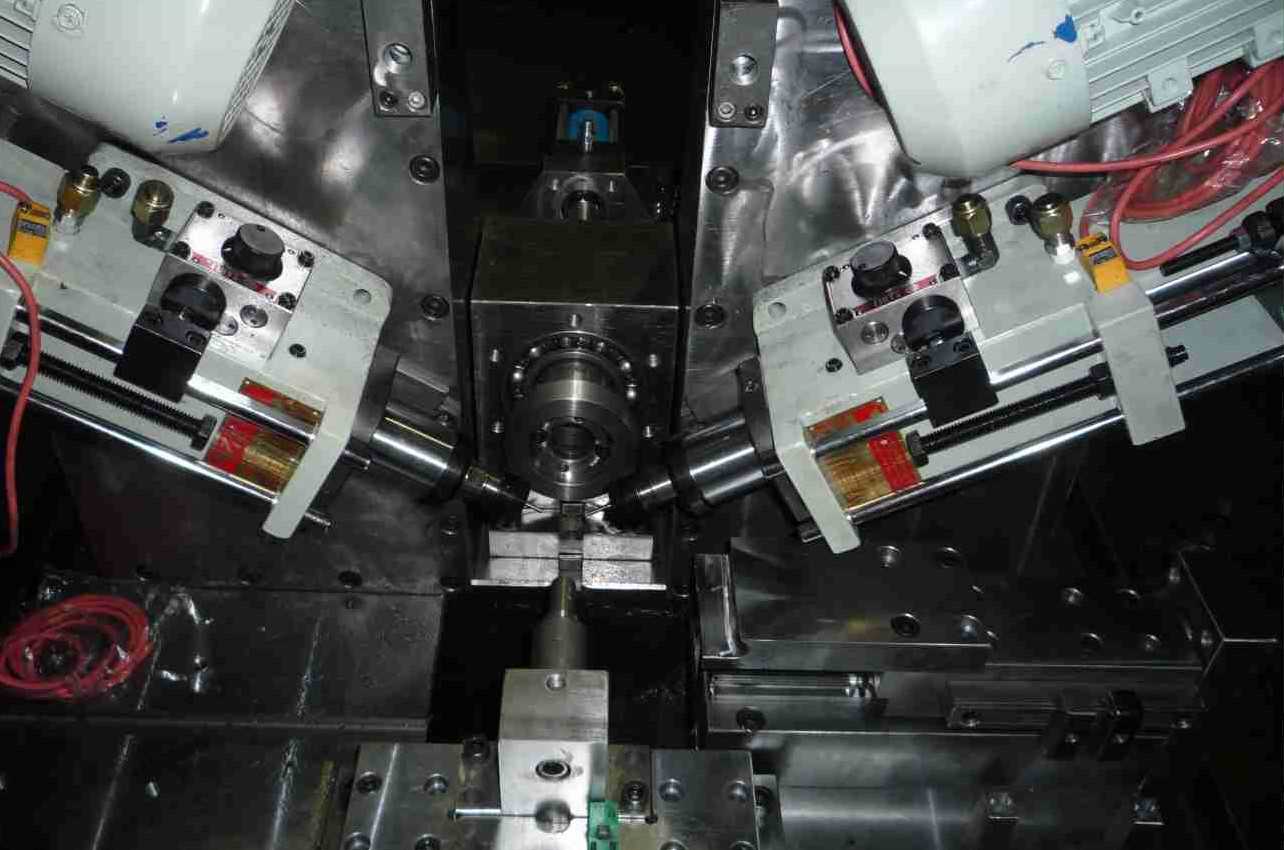

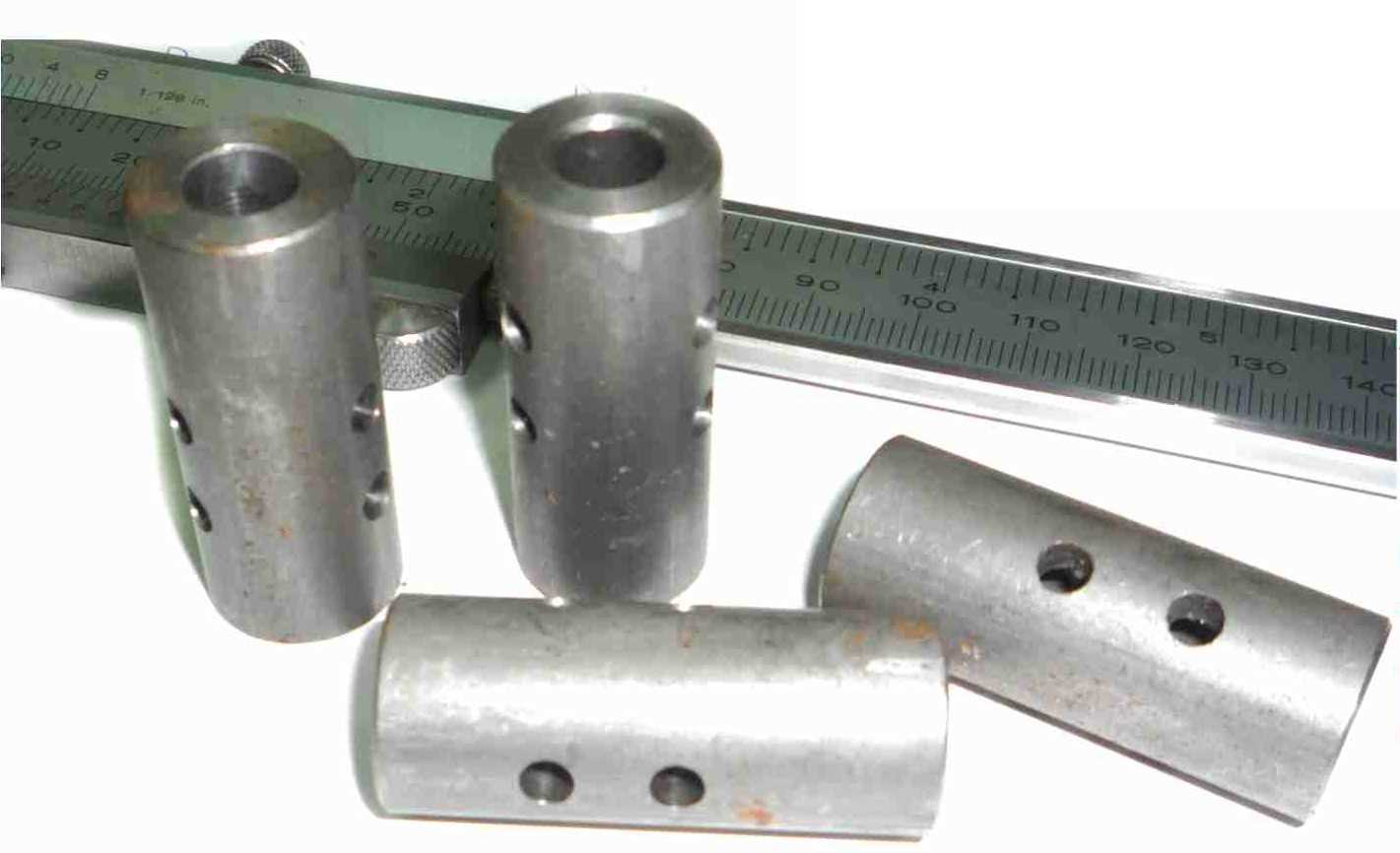

auto multi spindles
bolt/screw/tube/bar/stud drilling machine
 |
|
nut series |
 |
auto multi
spindles special tapping machine
for special nut, non-standard hex
nut, round nut or square nut. available from m3 to 350.
|
|
assembly Series |
 |

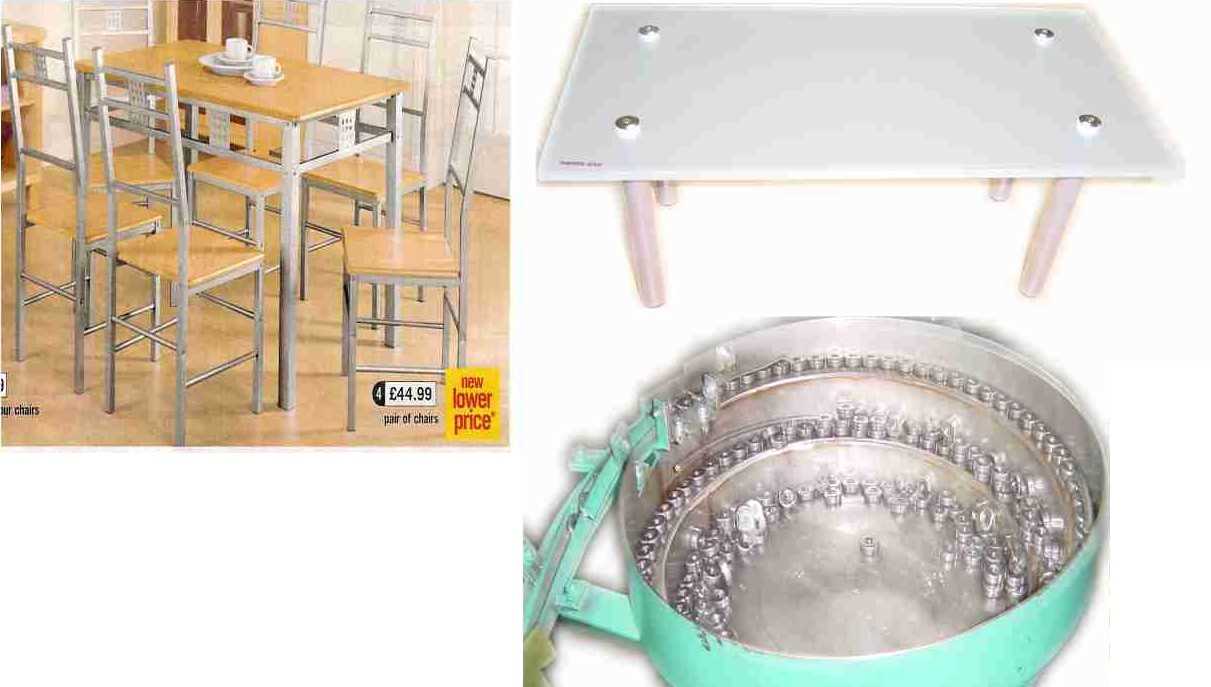

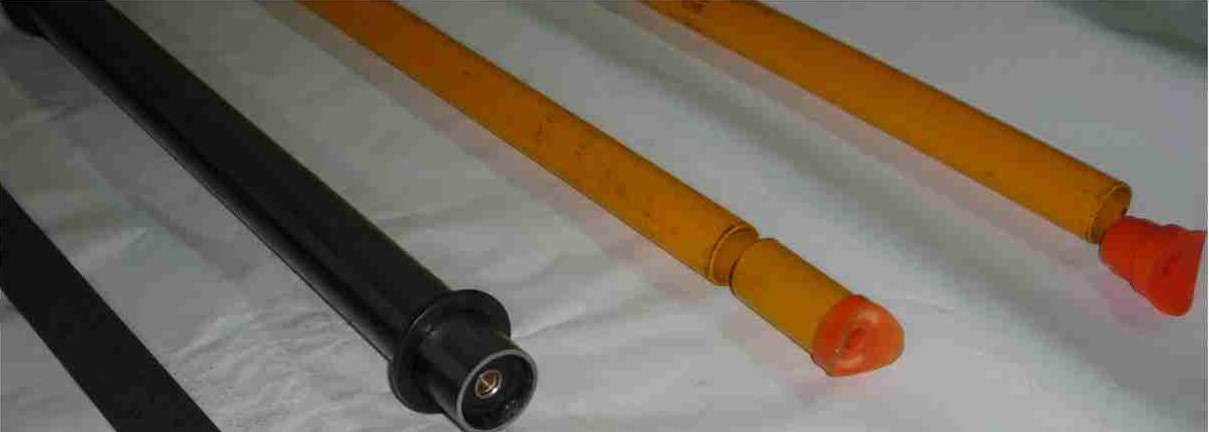

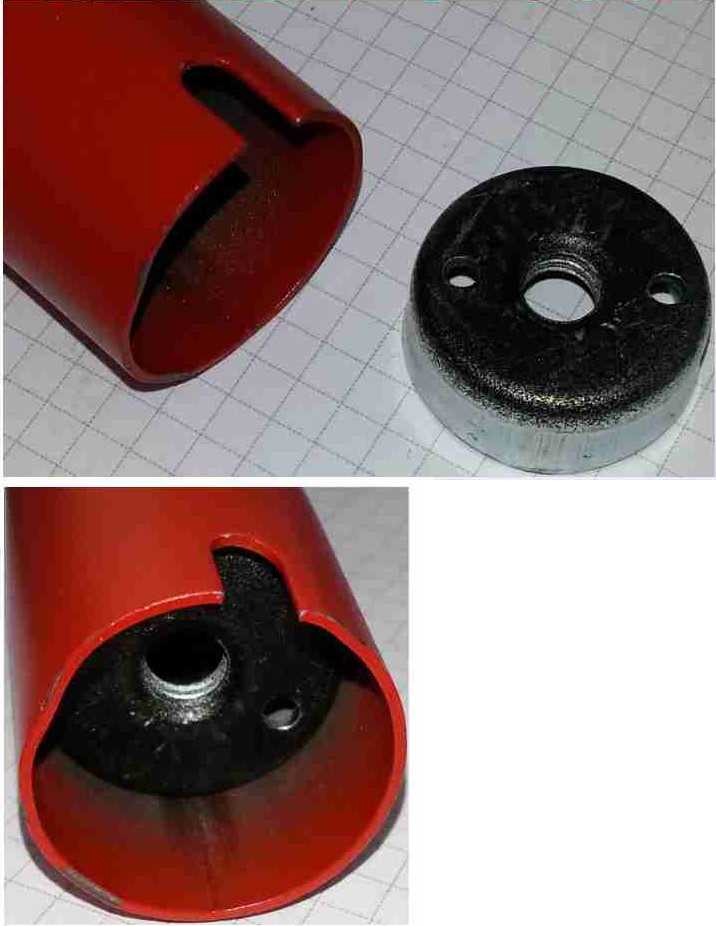

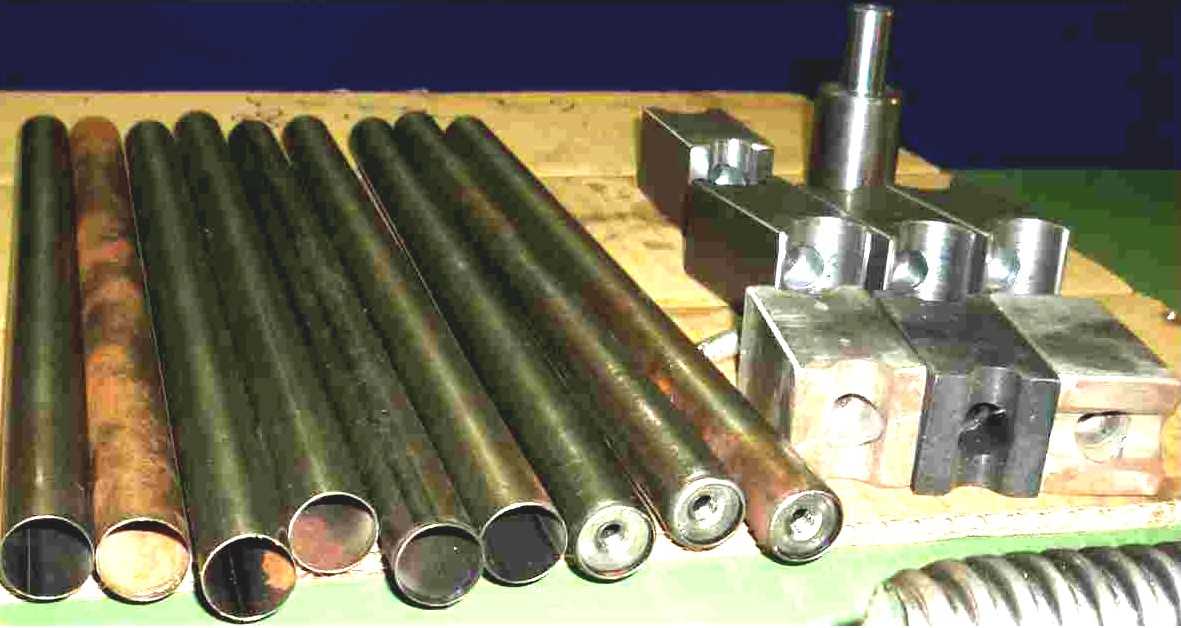

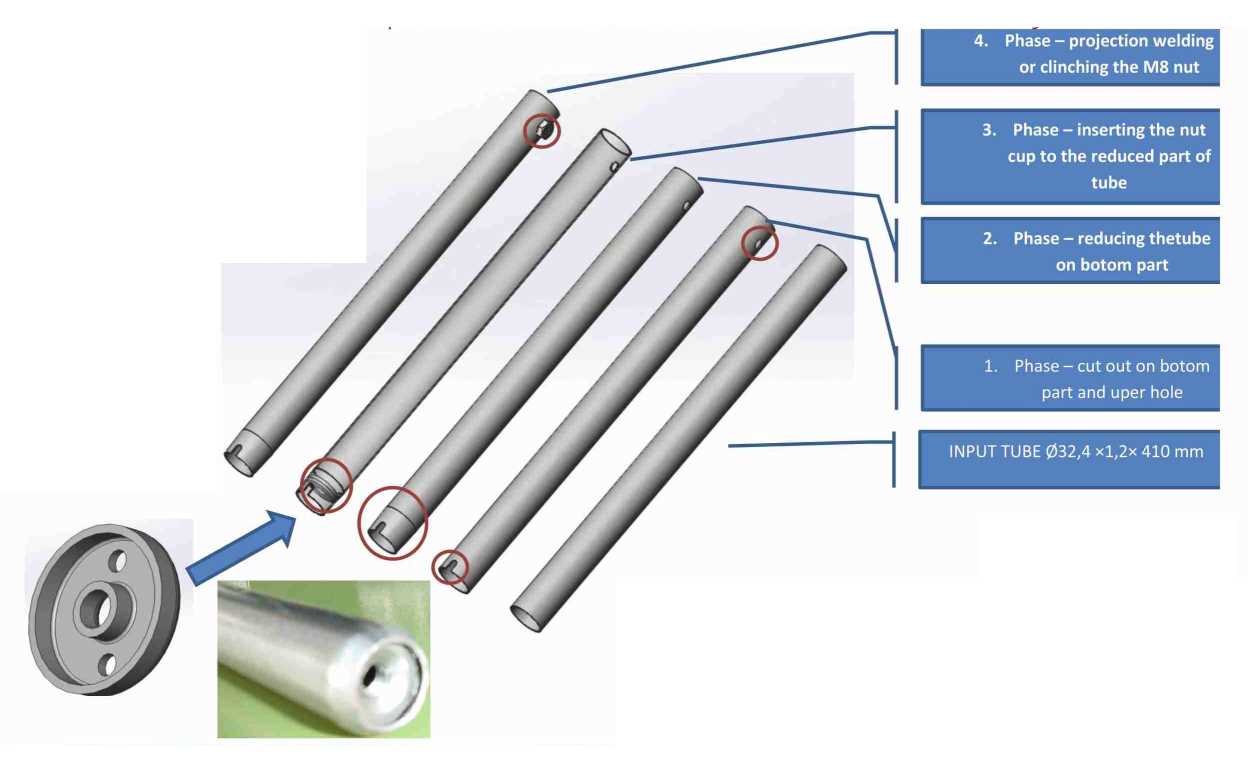

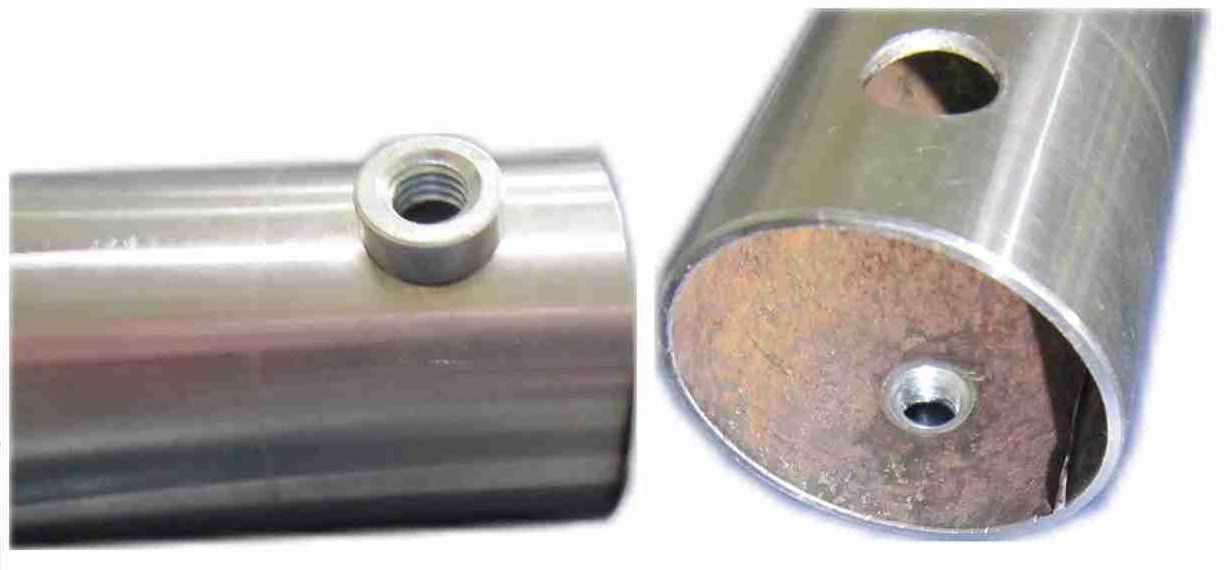

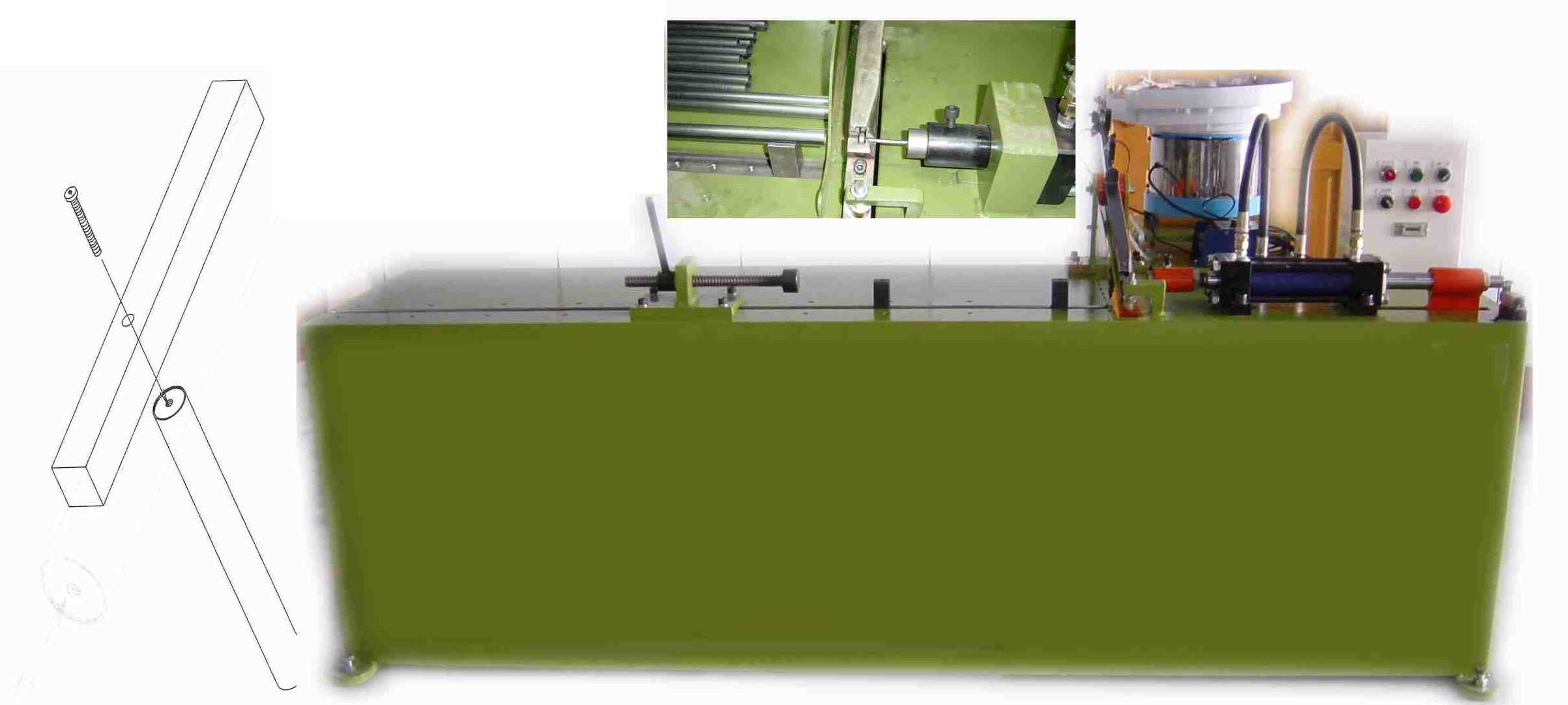

nut
insert to tube pipe machine (nut and tube assembly machine)

|
|
 |

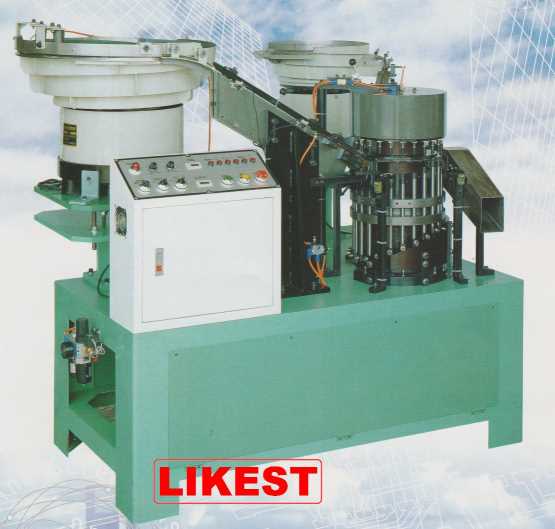

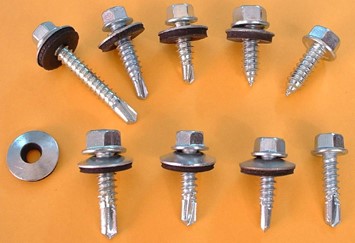

screw nut bolt
/ EPDM /PVC washer assembly machine
|
SCREW LENGTH
(MM) |
SPEED
(PCS/MIN) |
control |
power |
 |
|
16-95 |
250-450 |
program logical
control |
1kw(inverter) |
-
Available for EPDM, PVC, Rubber and Bonded Washer Assembly.
-
Easy to change toolings to assemble different sizes of screws or washer.
-
The continuous assembly mechanism works fast and steady.
-
100% Sorting device for unassembled screws or washers.
-
The machine will stop automatically when the screws and washers feeding
is too late, then restart running automatically when the tracks are full of
screws and washers.
-
Almost no machine parts wear out after long term operation. Save time
and money.
|
 |

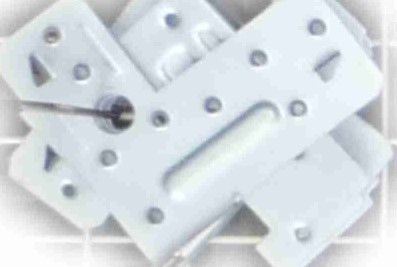

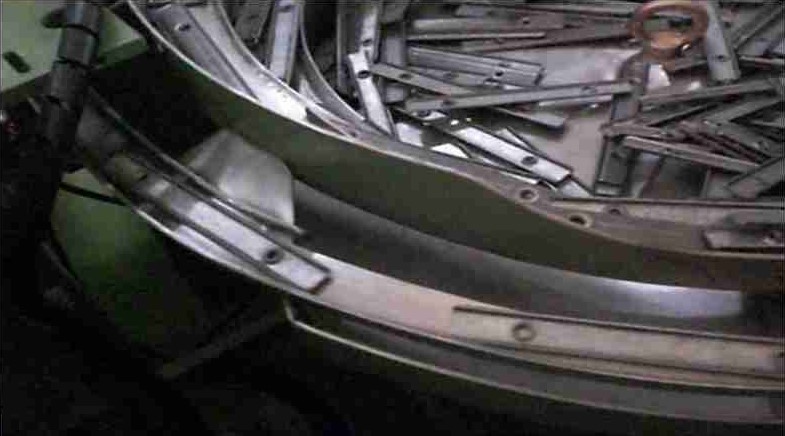

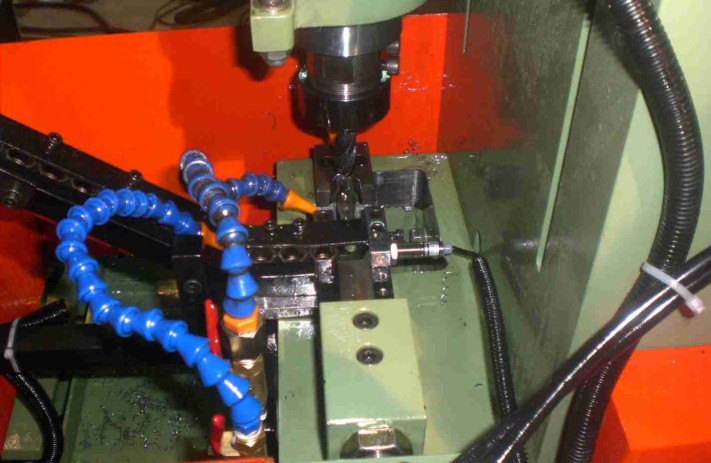

auto
multi spindles nut tapping machine and packaging system

for metal parts / bar
/ stud / bolt / screw / tube |
|

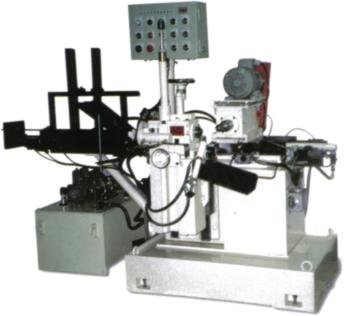

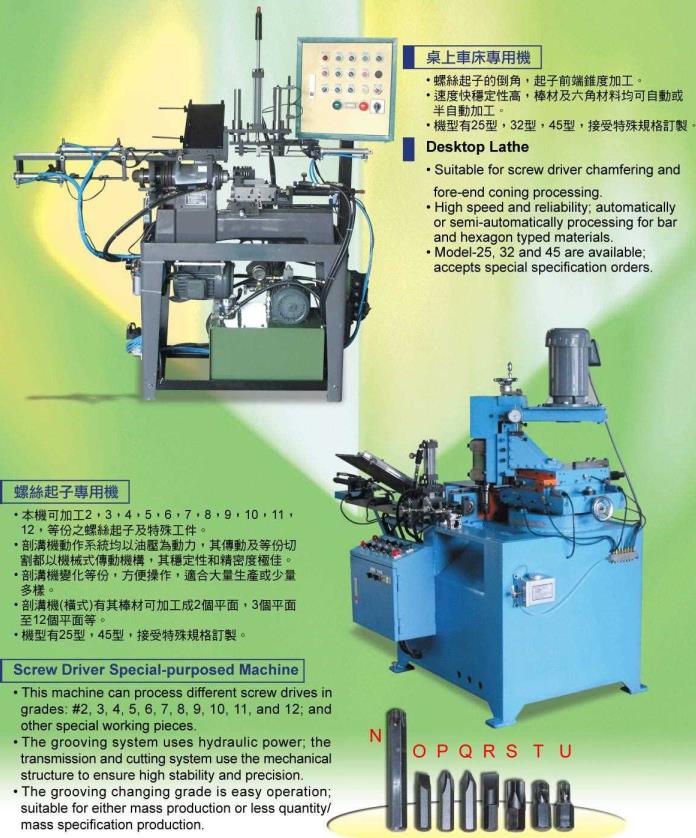

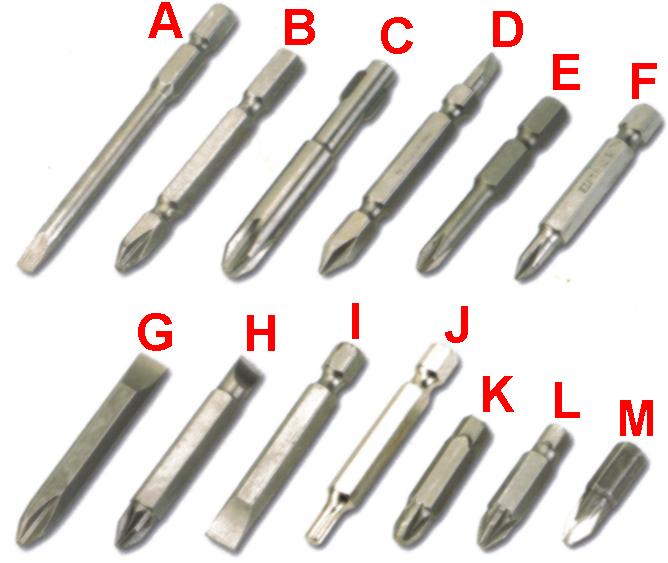

Screwdriver Making Machine |
 |
Traditional Screwdriver Making Machine (Double ended/Single
Ended)  |
 |
CNC Multipurpose Screwdriver Making Processing Machine
(Double ended/Single Ended)

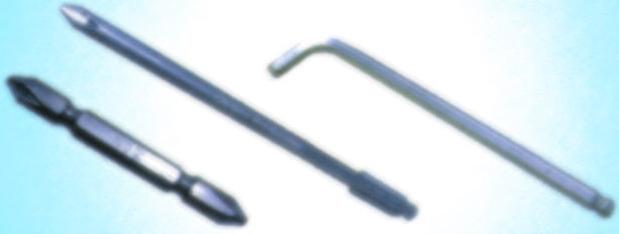

Designed for one-cycle
single/double-sided processing of screwdrivers, bits, and L-handle wrenches.
Make multi-products in the same machine.
Functions: Workpieces==>Turning==>Slotting==>Letter
Imprinting==>Wing==>Shaping==>L-Shaping==>One-Cycle Single/Double-Sided
Processing
Advantages:
1. One features multifunction, saving labor, and processing space and time.
2. Handles processing of small-volume, large-variety high-grade products.
3. Stable processing quality, easy to operate even for novice operators.
 |
|
Application:
|
self tapping screw
|
machine screw
|
hex nut |
spring lock washer
|
screw (all kinds of allen, hexagonal in varying,
steels, ropes and measures)
|
|
nuts
|
heavy hex nuts ASTM A194 2H
|
hex Structural bolts A325
|
shear connectors |
screw (all types of plugs in various entries, ropes,
steel and measures) |
|
self-drilling screws
|
Rivets
|
hexagonal w
|
screw for metal sheet |
stainless steel products (Hexagon head bolts, hexagon
socket head) |
|
nut (G2 y 2H) |
Steel Nails |
|
Brass Nails |
retaining rings (for shafts, for bores, washers for
shafts) |
|
pressure washer |
heavy square nuts |
all kinds of screws |
Galvanized Iron Nails |
hex nut (hex, locknut, t nut wing nut) |
|
washer area |
Anchors |
Nut setters |
Bit tips |
tapping screws (flat head phillips, pan head, dry
wall, klat) |
|
allen (hexagon socket head, cap screws) |
hexagonal screw (G2 y A325) |
washer (flat, spring lock, F436)
|
|
|
|
