automatic u bolt making machine



Features:

1. One straight line feeding operation direction among multi-stations, such as chamfering, thread rolling, bending. This machine can save operators, working space and loading / un-loading time and create the best benefit.

2. Automatic Loading from the Bar/Stud Storage Tank, then Automatic Move to chamfer both ends at the same time from 1 clamping transferring operation.

3. Bar/Stud Loading and Bar Unloading automatically Clamping from middle of the steel rod supported, and both ends with a special design live clamping threading tools rotate drive. The steel rod no rotate, the threading tools rotate to cut.

Process:

Automatic Loading => Chamfering => Double heads Threading => Bending => Automatic Unloading

Specifications:

1.We make the U Bolt Making Forming Machine (Full Automatic Production Line), Double end studs Making Forming Machine, SCREWS and Special-Purpose Hardware Processing Machines / Secondary process machine to Create a New Perspective for the Hardware Industry.

2. SPM for Auto Parts, Stud, Bolt, & Fastener

3. Automatic Movement System: to move the steel rod from Bar Storage Tank to Chamfering Station.

4. Processing Time: about 6~8 seconds/pc

5. Thread Size: M12~M32

6. 1~2 Operators.

Video:

APPLICATION : threaded rod for utility pole, Petrochemical Stud Bolts and Nuts



e-catalogue:

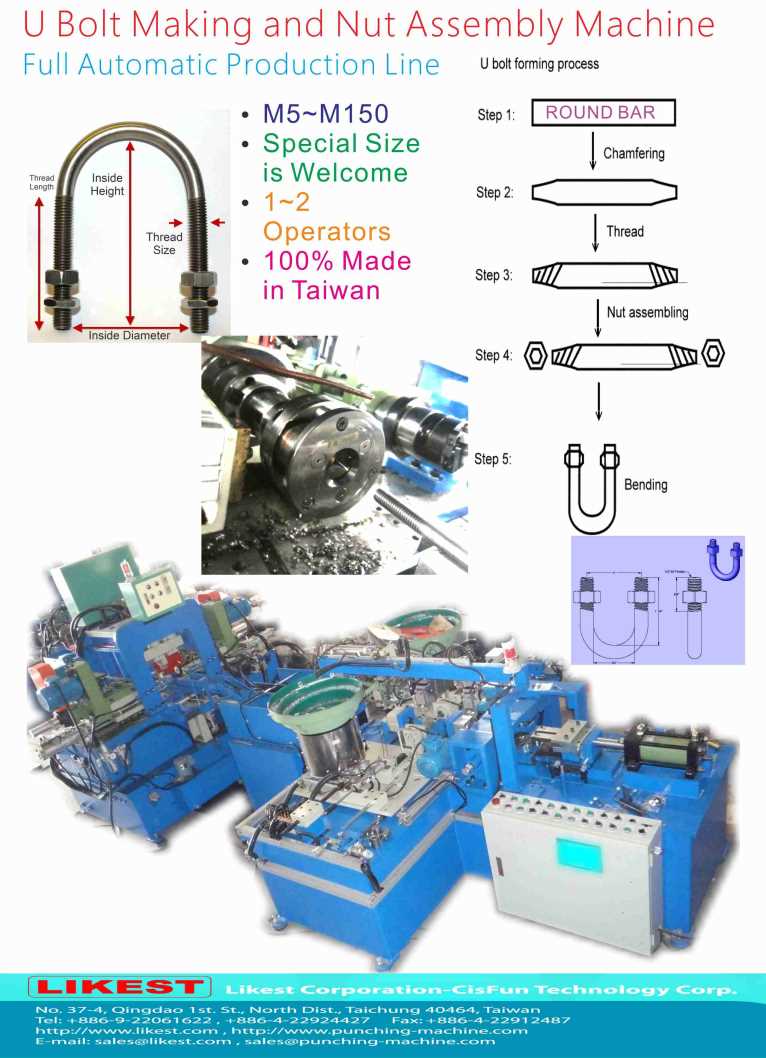

u bolt making and nut assembly machine

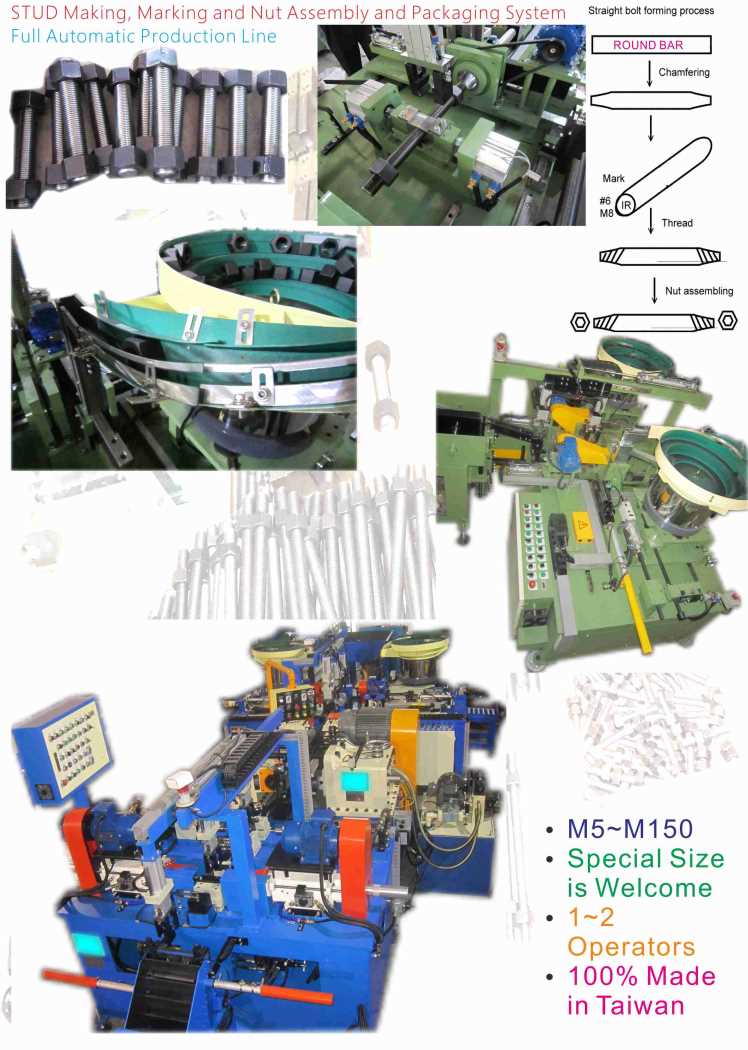

stud making marking and

 nut assembly and packaging system

bar stud bolt diameter reducing machine / bar necking machine / pipe necking machine / tube necking machine/threading rolling machine

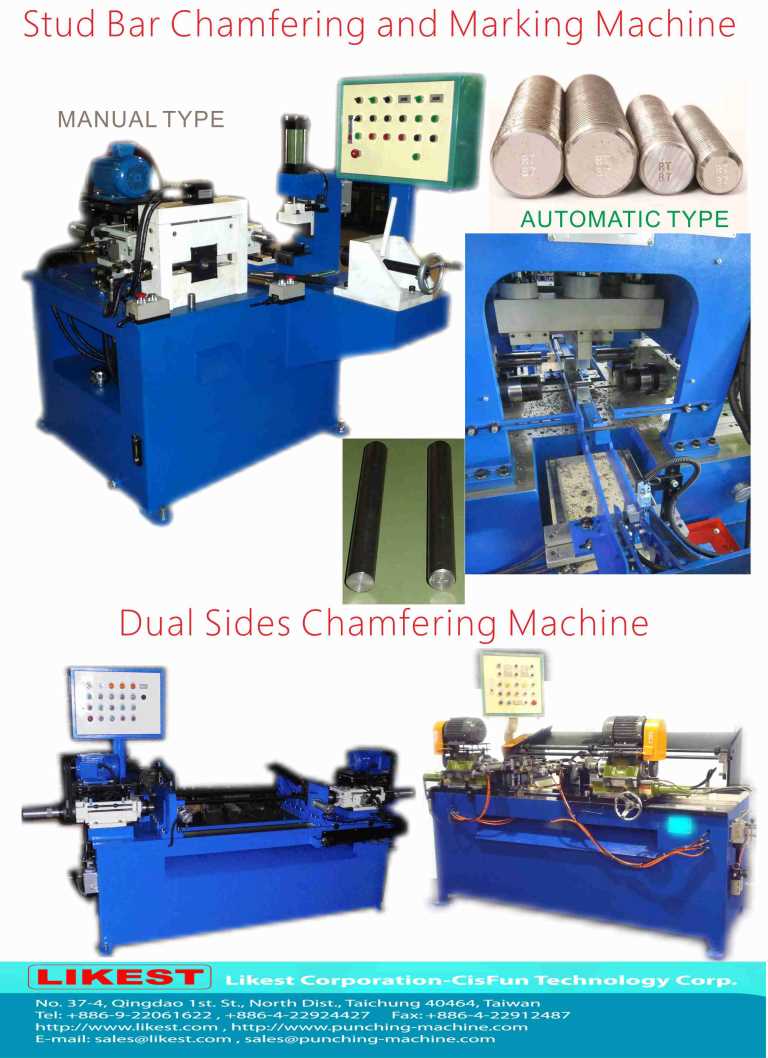

stud bar chamfering & marking machine

dual sides chamfering machine

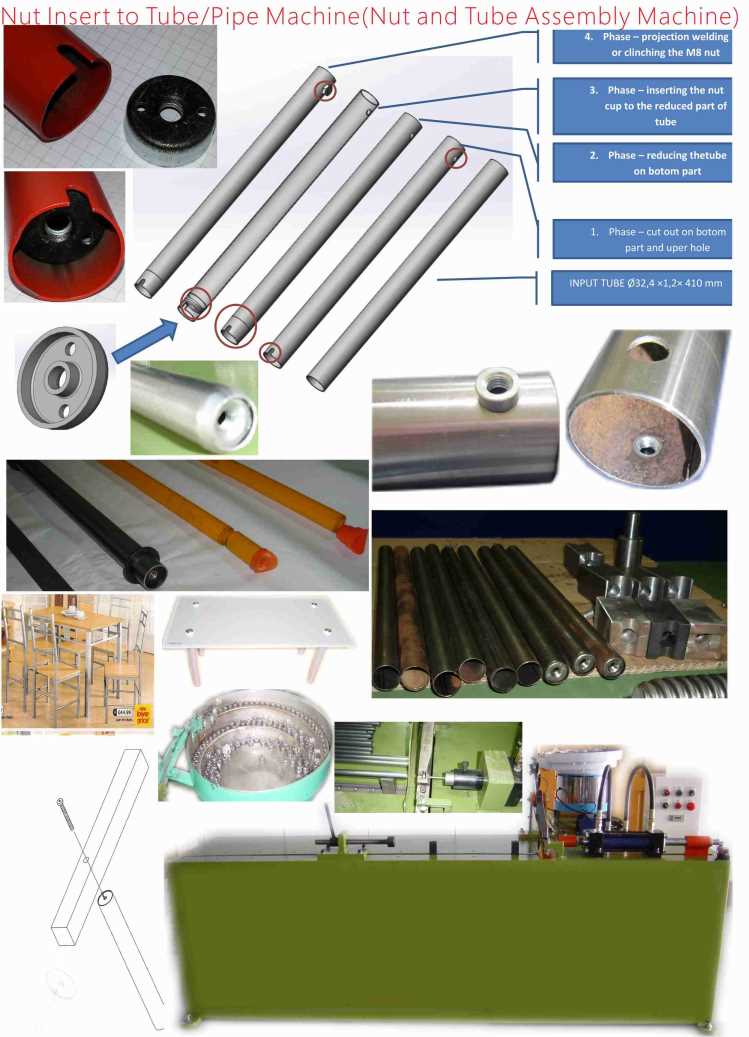

nut insert to tube pipe machine

(nut and tube assembly machine)

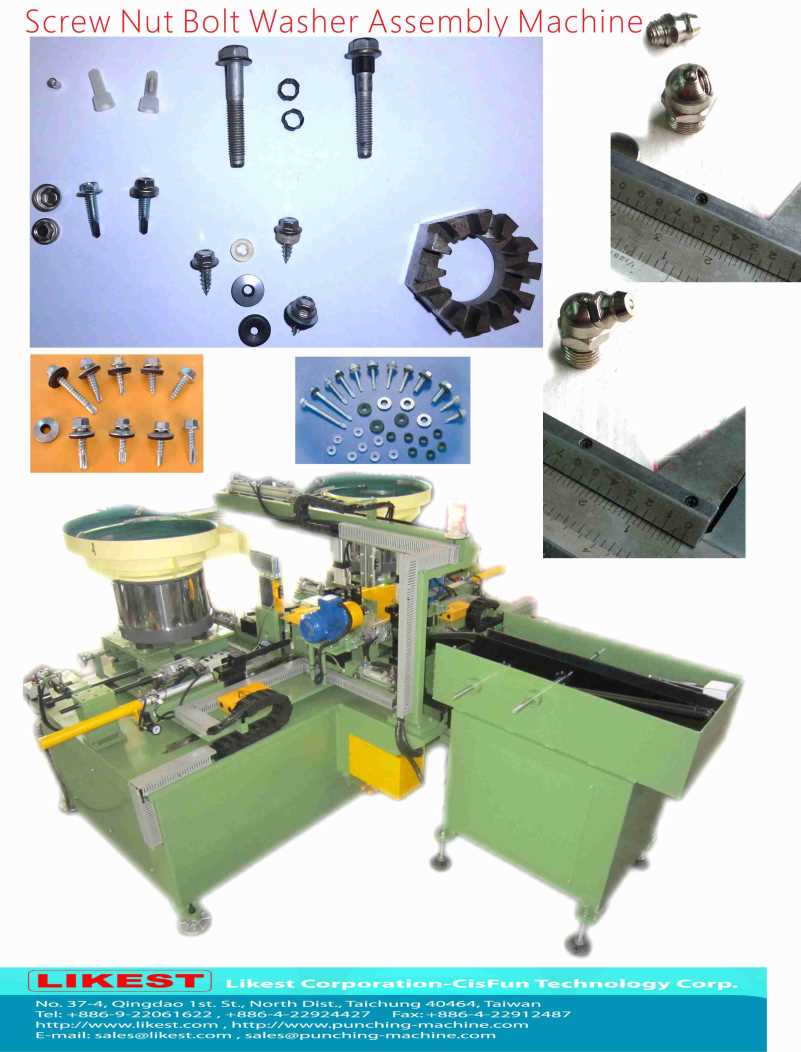

screw nut bolt washer clinch strux assembly machine

¡@
