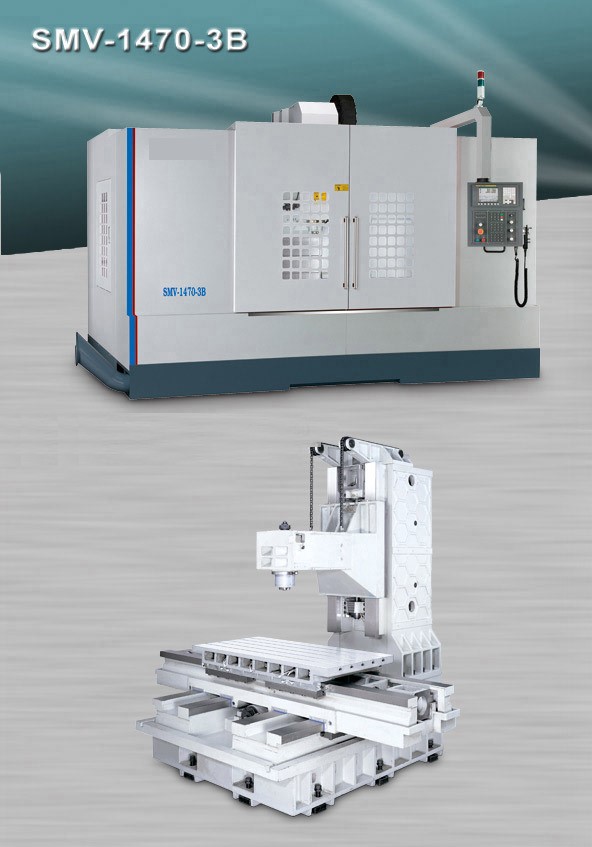

| Standard Accessories |
| BT/CAT/DIN-40 |
Standard Spindle 8000rpm (Belt Driven) |
| Electrical Cabinet with Heat Exchanger |
Spindle Coolant Nozzle System |
| RS232 Interface |
Spindle Air Blast |
| Fluorescent Work Light |
Lubrication System (proportional pressured) |
| Alarm Lamp |
Auto Interrupt & Power Off System |
| Tool Box & Tools |
Portable Hand Wheel |
| Leveling Blocks & Bolts |
Operation Manual, Maintenance Manual |
| Fully Enclosed Splash Guard |
CNC Manual |
| Rigid Tapping |
Test Report In CD Format |
| Optional Accessories |
| Spindle Belt Drive (rpm)(50 Taper) |
6000 |
| Spindle Direct Drive (rpm)(50 Taper) |
6000 |
| Spindle Belt Drive (rpm)(40 Taper) |
10000, 12000 |
| Spindle Direct Drive (rpm)(40 Taper) |
10000, 12000, 15000 |
| Spindle Built-in |
24000, 30000 |
| Spindle Motor Upgrade |
Available |
| Spindle Oil Coolant System |
Available |
| 4th Axis (Rotary Table) |
Available |
| 4th Axis Preparation |
Available |
| Air Gun System |
Available |
| ATC - Carousel Type |
BT/CAT/DIN-40/50 16 Tool |
| ATC - Swing ARM Type |
BT/CAT/DIN-40/50 24 Tool |
| Chip Conveyor System |
Belt Type / Scrapper Type |
| Chip Conveyor System |
Internal Type |
| Coolant Through Spindle (CTS) |
15 - 20 bar |
| Flushing System + Water Gun |
Available |
| Linear Scale |
Heidenhain LS |
| Oil Skimmer / Separator |
Available |
| Tool Probe |
TS-27R , NC4 |
| Transformer |
35KVA |
| Workpiece Measurement Device |
MP12 , OMP40 60 |
| Z/F Gear Box |
Available |
| Technical Specifications |
| Travel (mm) |
| X-axis |
1400mm |
| Y-axis |
700mm |
| Z-axis |
650mm |
| Spindle Nose To Work Table Surface |
150 - 800mm |
| Work Table |
| Table size (L x W) |
1500 * 600mm |
| T-Slot |
5 * 18 * 115mm |
| Maximum Table Load |
1500 kgs |
| Maximum Traverse Speed |
| X-axis |
24m / min |
| Y-axis |
24m / min |
| Z-axis |
24m / min |
| Position Accuracy |
| X, Y & Z |
*+/-.005mm |
| Repeatability Accuracy |
| X, Y & Z |
*+/-.002mm |
| Guide Way (Box Way) |
| X-axis |
2 x Captain Turcite-B |
| Y-axis |
4 x Captain Turcite-B |
| Z-axis |
2 x Captain Turcite-B |
| Lubricating System |
Oil Cooled |
| Lubricator |
2 x Lubricator WAY LUBE 68 |
| Spindle |
| Spindle Taper |
40/50 |
| Spindle Motor |
11 KW (standard) - 15 & 18 KW (optional) |
| Other |
| Air Supply Required |
6Kg / square cm |
| Power Supply Required |
35 KVA |
| Machine Weight |
8000 kgs |
| Machine Dimension For Shipping |
390*232*256cm (40'HQ) |
