Item
No/Type : CS-24A

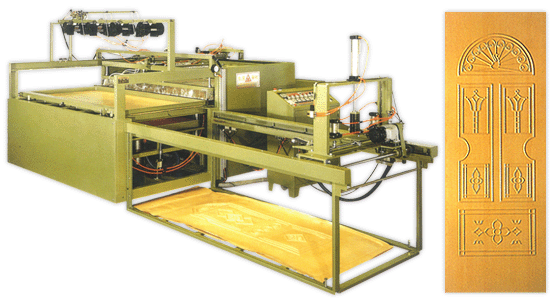

Name : Fully-Automatic Vacuum Forming Machine
ˇ@
|
|
| Description : |
ˇ@ |
| THE SPECIAL FEATURE OF
CS-24A: |
| 1. |
The heaters are
micro-controlled by separated teams. Same temperature, fast heating.
When turn off the power, the heater stove will return back
automatically, with high safety. |
| 2. |
Material feeding is
controlled by computer, with accurate feeding length, stable brake
without vibration and save material. |
| 3. |
The cooling water of mould
seat is controlled by several stages, keeping the same cooling
affect, to make the products with good quality. |
| 4. |
To adopt movable water
spray, same spraying within the range without drops. |
ˇ@
Model
Specification |
CS-24A |
| Model |
Single
mold set |
| For min.
area(mm) |
940x2200 |
| For min.
material |
PVC, PET,
PP |
| Heater |
90KW |
| For min.
speed |
2PC/min |
| Motor |
1/4HPx4 |
| Vacuum
pump |
5HP |
| Air
compressor |
7.5HP |
Machine size LxWxH(mm) |
6200x2800x1600 |
| Weight
|
1500kg |
| Subject to change without prior notice. |
|
|
