| -- Vacuum Forming
Machine -- |
|
ˇ@ |
Item
No/Type : CS-26, CS-27

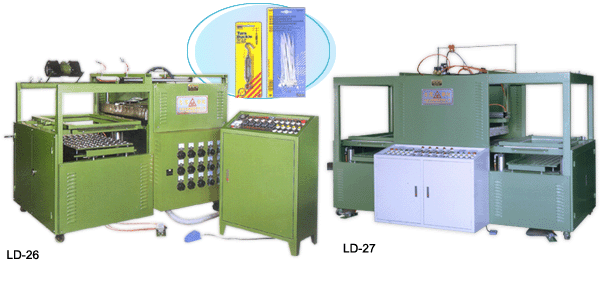

Name : Single cycle Automatic Vacuum Forming
Machine
ˇ@
|
|
| Description : |
ˇ@ |
| Features: |
| 1. |
With computerized and
automatic PLC system it is easy operated and maintained, less out of
order. |
| 2. |
Suitable for the forming of
PVC, PS, PP, PET, PE, plastic material, Fully automated except
pulling film by labor. |
| 3. |
Can cover clear film on the
cardboard for skin package. |
| 4. |
Suitable for hardware, daily
necessities, and electronic accessories. |
ˇ@
Model
Specification |
CS-26 |
CS-27 |
CS-24A |
|
Forming
Area |
570x1000mm |
570x1000mm x2
Forming
Areas |
940x2200mm |
| Heater
Capacity |
25KW |
25KW |
90KW |
| MAX
Forming Depth |
200mm |
200mm |
- |
| Air
Compressor |
3HP |
3HP |
7.5HP |
| Vacuum
Pump |
3HP |
3HP |
5HP |
| Machine
Size |
2000x1700x1650mm |
3000x1700x1650mm |
6200x2800x1600mm |
Special specification is available as
per customer's requirement.
CS-24A is specialized for producing plastic embossed doors, catalog
is available for reference. |
|
|
