| -- Hydraulic
Cutting Machine -- |
|
ˇ@ |
Item
No/Type : CS-74

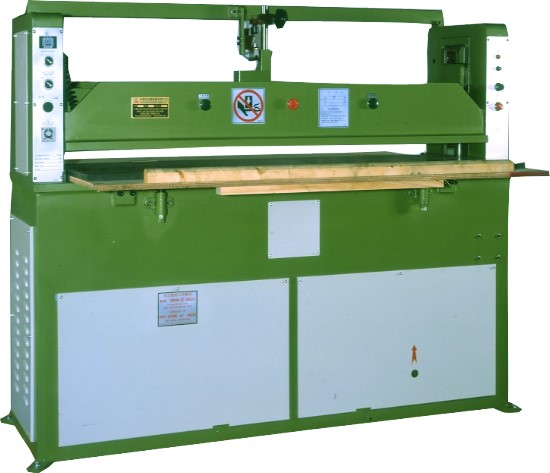

Name : Hydraulic Plane Cutting Machine
ˇ@
|
|
| Description : |
ˇ@ |
| Features: |
| 1. |
The cutting point can be
adjusted and cutter can be swiftly switched.
Hydraulic cutting can be operated either manually or with foot
pedal. |
| 2. |
Foot pedal can be adjusted. |
| 3. |
Suitable for plastic,
clothing, leather, cutting. |
ˇ@
MODEL
SPECIFICATION |
CS-74 |
| Cutting
Area (m/m) |
1560x450 |
| Stroke |
5-100m/m |
| Pressure |
25TON |
| Motor |
5HP |
| Machine
Size (m/m) |
1800x850x1600 |
| Machine
Weight |
1500kgs |
|
|
