Spring nut / nut tapping machine

PRODUCT :

Features:

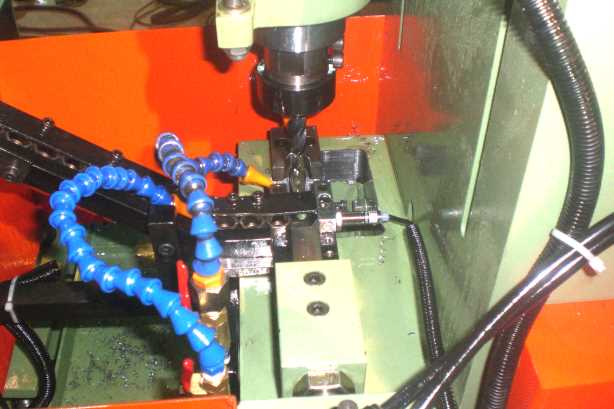

Auto Multi Spindles Nut Tapping Machine.
Tapping machine cuts the threads on the nut of different sizes, including special forms of fasteners.
Suitable for small batch production.
You can adjust the speed and correspondingly change the performance of the hardware.
Tapping machine is able to put a thread on hexagon, square, nylon nuts and bolts with flange.

Specifications:

-Maximum Tapping capacity: M36*4.0
-Automatic feed guiding tray : 1 set
-Automatic Vibrating Bowl Feeder (for nut feeding): Bowl Diameter 500mm
-Pneumatic cylinder (for push the nut to do tapping)
-Jig/Fixture
-Threading guiding socket (Thread Inserts)
-Tapping Spindle : 1 set -

APPLICATION :

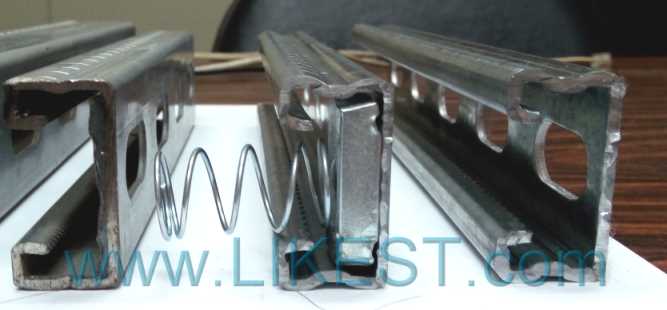

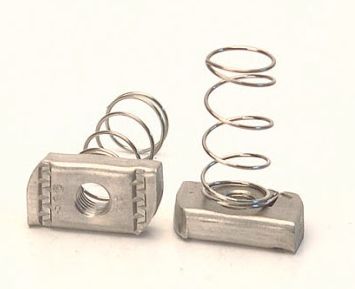

*Spring Nut

*Special nut
*Round nut
*Square nut
*Non-standard hex nut

Hex Nuts, Anchor nuts for special purposes, Caste nuts, Hex low nuts, Hex low castle nuts, Lock nuts, Lock check nuts
Knurled and collar nuts with flange, Wing nuts, Screwed Plugs, Wheel nuts,
Hex low castle nuts, Hex low nuts, Hex Nuts, Hexagon castle nuts, Hexagon nuts with flange,
Square weld nuts, Square nuts, Square low nuts, Lock nuts,

¡@
