pipe/tube
Thread Rolling Machine

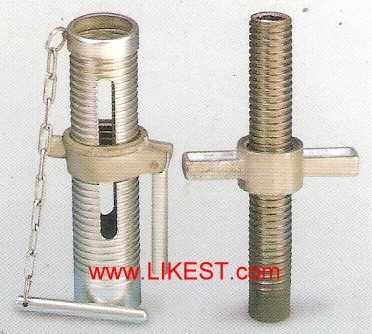

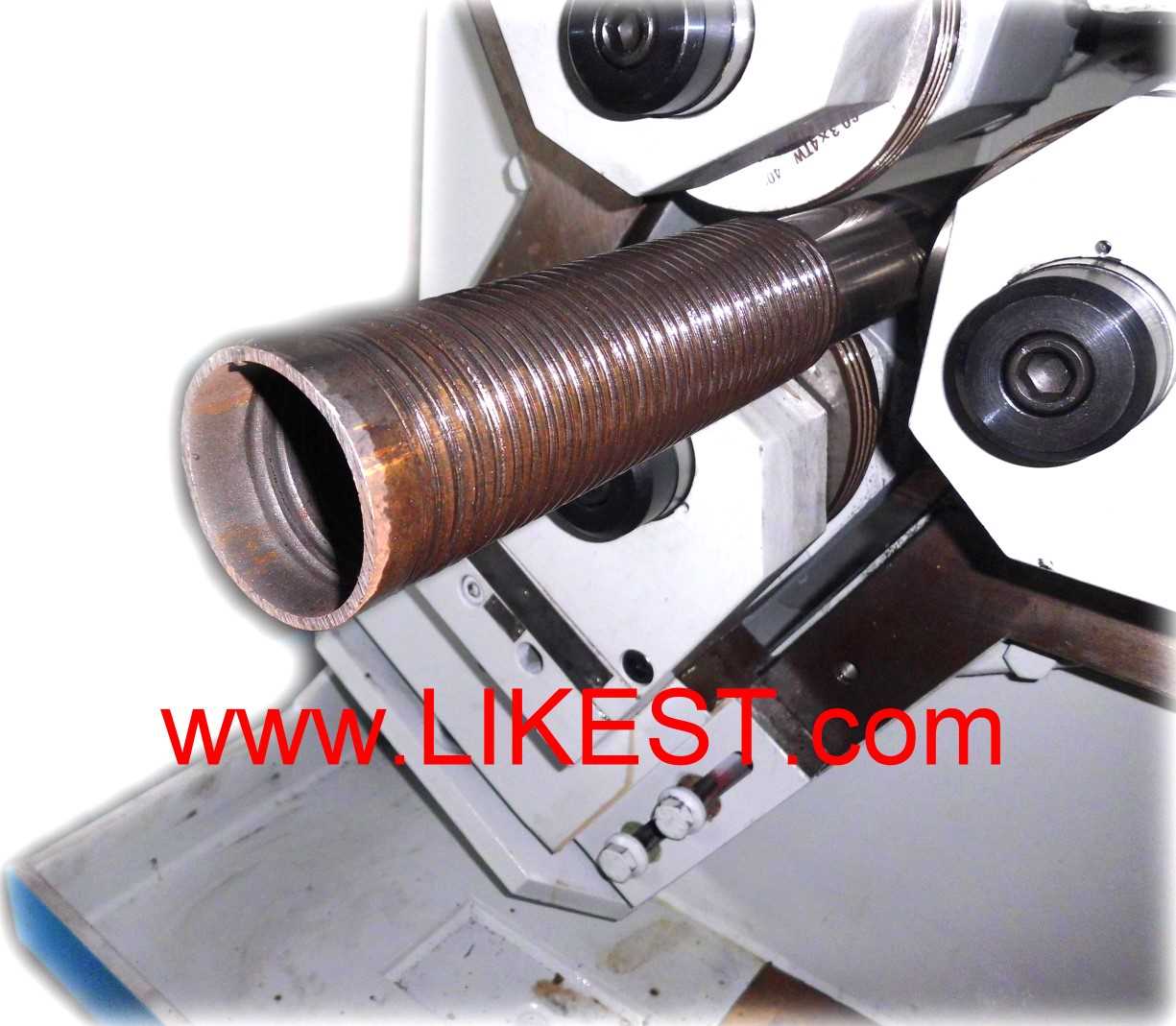

1.Three-die type Thread Rolling Machine
loading system.
2.High concentricity.
3.Suitable for mass production, saves
time and increases work efficiency.
4.Scaffolding thread rolling machine.
  |
Specifications:
|
ITEM |
MODEL |
CF-150A
|
CF-300A
|
CF-600A
|
|
Thread Work Range |
Max. diameter (mm) |
30 |
60 |
90 |
|
Min. diameter (mm) |
8 |
15 |
22 |
|
Max. length (in-feed) (mm) |
40 |
50 |
70 |
|
Max. length (thru feed) |
Free |
Free |
Free |
|
Pitch |
0.5-2.5mm 40-11TPI |
0.75-3.0mm 32-8TPI |
0.75~3.0 mm 32~8TPI |
|
Motor |
Main. Motor (kw) |
1.5 |
3.75 |
7.45 |
|
Hydraulic motor (kw) |
0.75 |
1.5 |
5.6 |
|
Coolant motor (kw) |
0.1 |
0.1 |
0.1 |
|
Roller Dies |
Max.O.D.(mm) |
75 |
125 |
150 |
|
Max.I.D. (mm) |
25.4 |
40 |
54 |
|
Thickness (mm) |
20,30,40 |
25,30,50 |
70
|
|
Spindle distance (mm) |
Max. |
100 |
200 |
200 |
|
Min. |
40 |
75 |
75 |
|
Output |
Pcs/min |
10-30 |
6-30 |
6-30 |
|
Floor Space (mm) |
L x W x H |
770 x 1050 x 1150 |
1050 x 1300 x 1300 |
1350 x 1300 x 1460 |
|
Weight (kgs) |
N.W/G.W |
520 / 570 |
1200 / 1260 |
3000 / 3200 |
|
|
 |

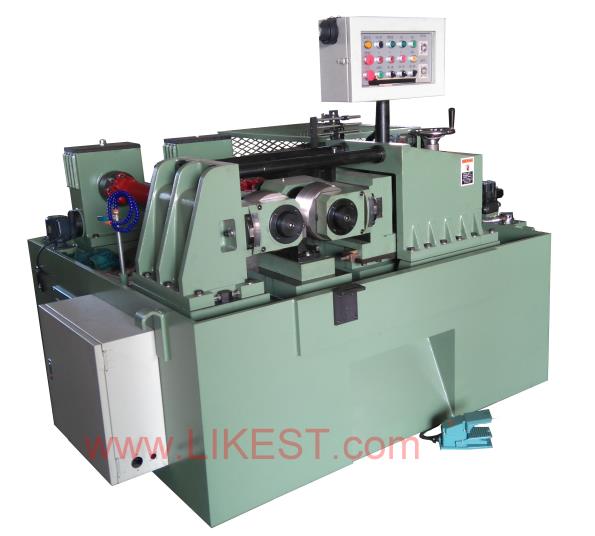

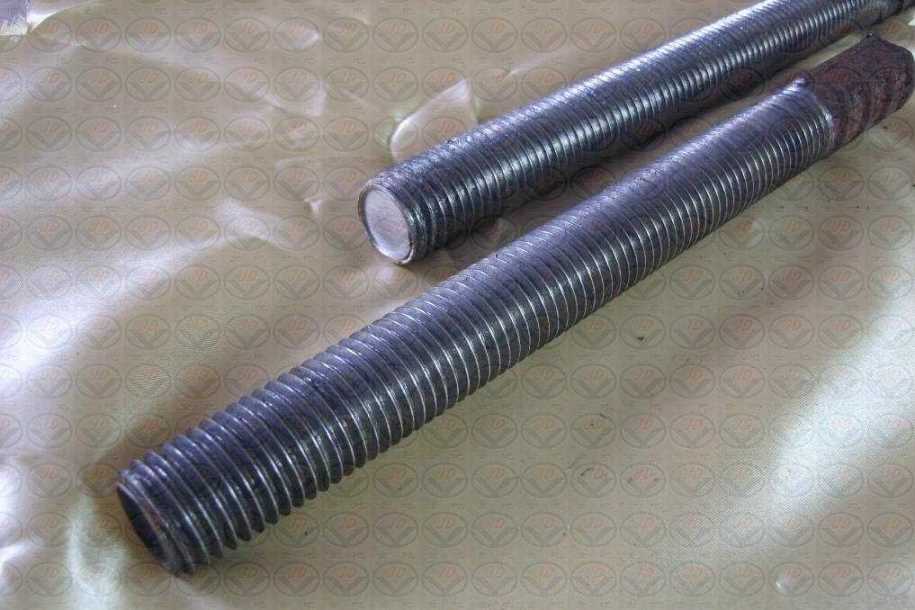

Bar/Rod Hydraulic Thread Rolling
Machine

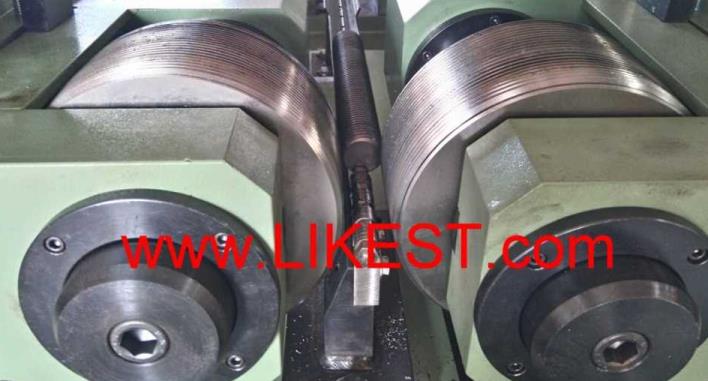

1.Two-Die Cylindrical Thread
Rolling Machine
2.In-feed and thru-feed capability
3.Quick setup.
4.Hydraulically actuated left-hand head
5.Direct drive
motor/gearbox assembly
6.AC inverter variable speed
spindle drive
7.Round
Bar Thread Rolling Machine
 |
Specifications:
|
ITEM |
MODEL |
CF-300 |
CF-3100 |
CF-30T(CAM) |
CF-500 |
CF-500S |
|
Workpiece
(in-feed) |
Max.diameter (mm) |
25 |
16 |
2 |
50 |
70 |
|
Min. diameter (mm) |
6 |
2 |
10 |
6 |
6 |
|
Max.Length (in-feed,mm) |
70 |
|
28 |
150 |
150 |
|
Pitch (mm) |
0.9-4.0 |
0.4-1.75 P |
0.5-1.5 P |
0.9-4.0 |
0.9-4.0 |
|
Workpiece (thru-feed) |
Max.Diameter (mm) |
30 |
16 |
|
60 |
70 |
|
Min. Diameter (mm) |
6 |
2 |
|
6 |
6 |
|
Max. Length |
No limit |
|
|
No limit |
No limit |
|
Pitch (mm) |
0.9-4.0 |
0.4-1.75 P |
|
0.9-4.0 |
0.9-4.0 |
|
Die |
Speed Range |
30-60RPM |
54 RPM |
32 RPM |
30-60RPM |
15-52RPM |
|
Max. O.D. (mm) |
150 |
100 |
100 |
178 |
190 |
|
Bore Diameter (mm) |
54 |
50.5 |
50.5 |
54 |
70 |
|
Width (mm) |
70 |
30-40 |
30 |
70-150 |
150 |
|
Center distance of Dies spindle |
Max. (mm) |
150 |
130 |
115 |
175 |
250 |
|
Min. (mm) |
120 |
90 |
94 |
135 |
145 |
|
Max. Rolling Pressure |
20 Tons |
4 Tons |
|
40 Tons |
40 Tons |
|
Main Spindle Motor |
5HP,6P |
2HP |
|
10HP,6P |
15HP,6P |
|
Hydraulic Motor |
5HP |
2HP |
1HP |
7-1/2HP |
7-1/2HP |
|
Coolant Pump |
1/8HP |
1/8HP |
|
1/8HP |
1/8HP |
|
Output (pc/min) |
6-35 |
30-50 |
32 |
4-35 |
4-20 |
|
Machine Net Weight (Approx :kgs) |
1100 |
480 |
280 |
3000 |
3000 |
|
Machine Dimension (LxWxH :mm) |
1100x1500x1150 |
14005x940x910 |
800x470x730 |
1870x1580x1320 |
1980x1560x1700 |
|
|
 |

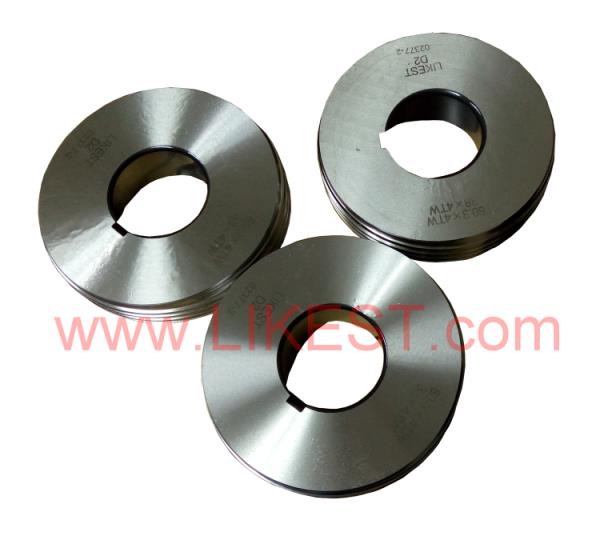

Thread rolling die
We are highly acknowledged
organization engaged in presenting a remarkable range of
thread rolling tools, thread roller dies, flat thread
rolling dies, thread rolling flat dies, winter thread roll.
We also produce the thread
rolling dies for other brands thread rolling machines. Your
special specifications and requirements are very welcomed.
Feature:
1.Easy to fix
2.Optimum performance
3.Quality tested |
|
Application :
1.Suitable for pipes processing.
2.Suitable for connections, artificial
lamp electric tubes and the tubes of decorations processing.
3.Material of building.
4.Scaffolding
Three Roll Thread Rolling Machine
5.thread forming machine & prop drilling machine
6.Fully
Automatic Scaffolding Thread Rolling Machine
7.Scaffolding Pipe Thread Rolling
Machine
8.Scaffolding
Prop Threading Machine For Prop Nut
|
 |
automated rebar threading
machine

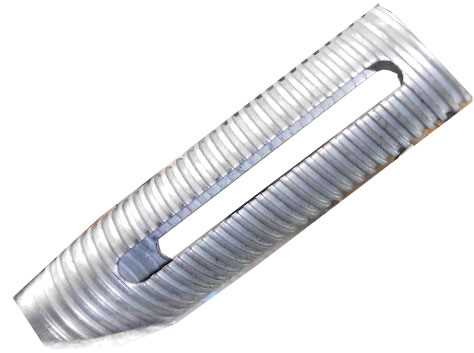

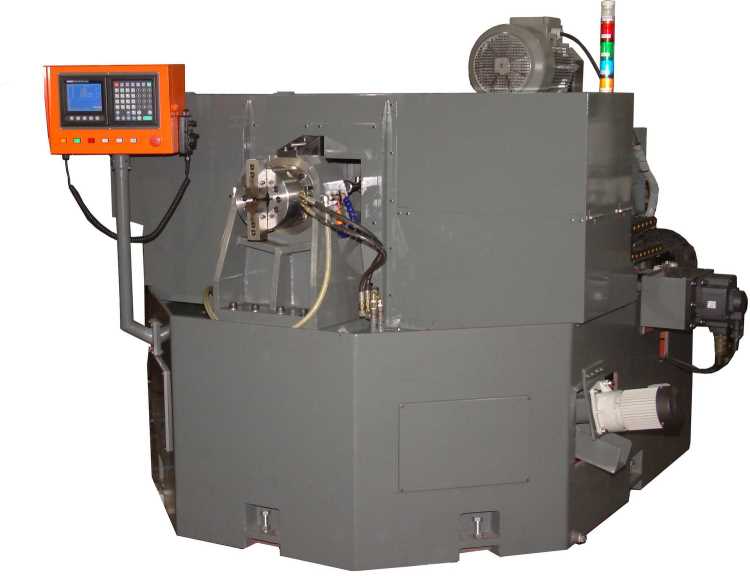

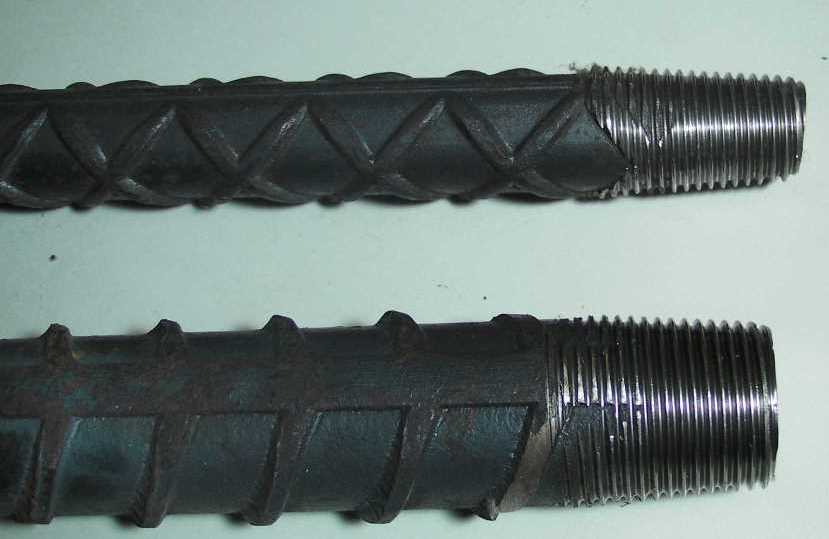

1.This machine threads the ends
of rebar used during the construction of buildings and other
concrete structures.
2.We supplies a wide
assortment of Rebar Threading Machines as per the
requirement of the clients. These threading machines, widely
used in various industrial applications, are preferred for
their better service life and high tensile strength. They
are convenient to install and require low maintenance cost.

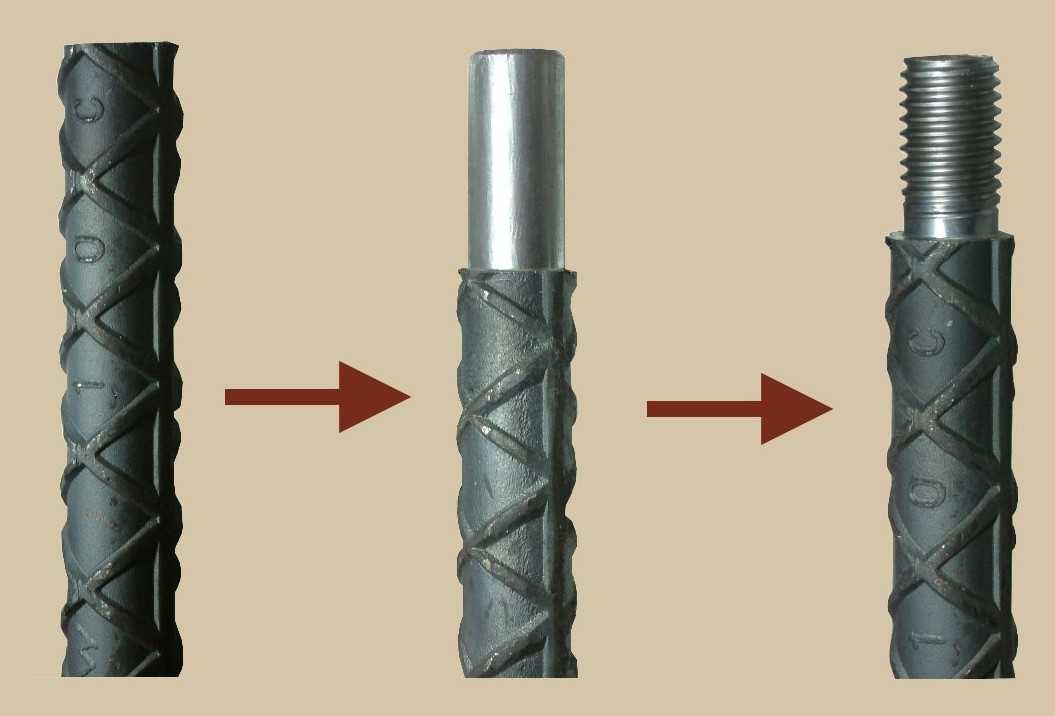

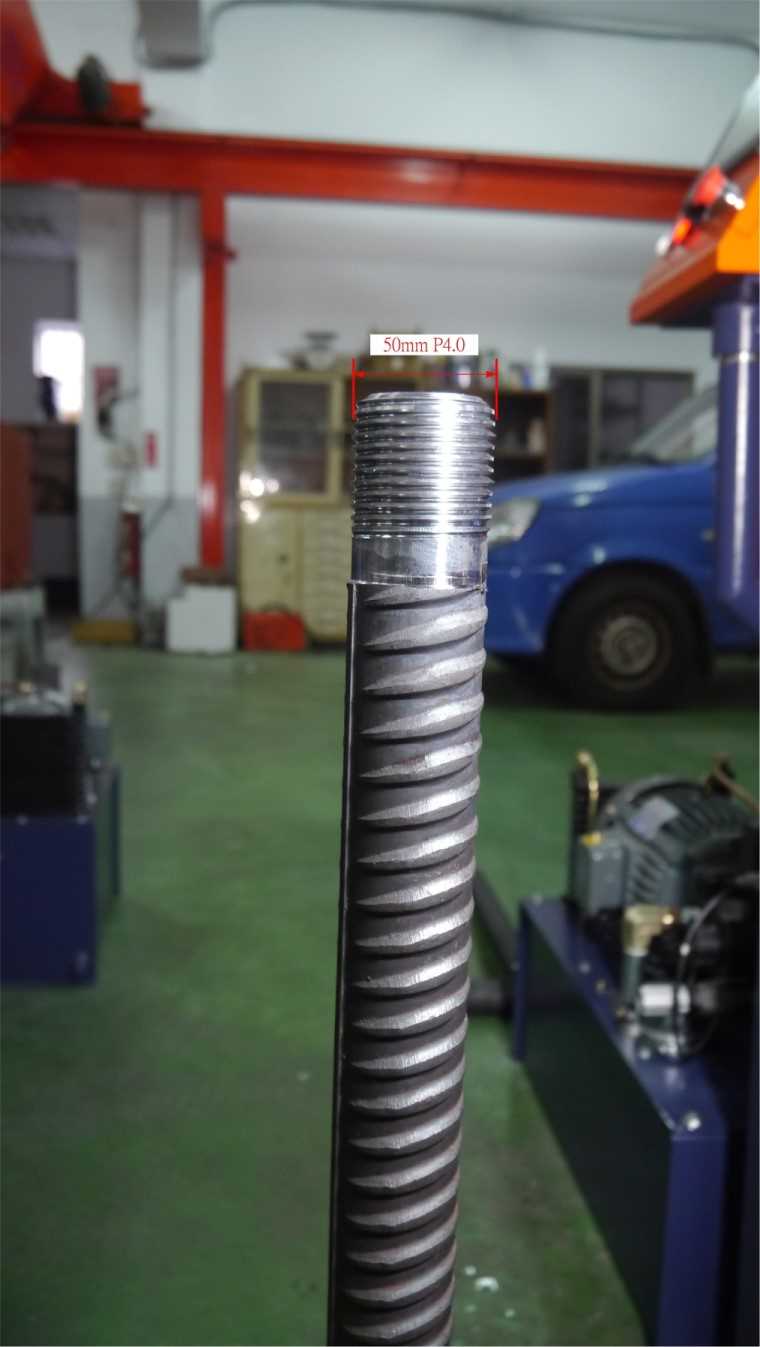

3. Steel bar (REBAR) thread
rolling machine can make thread on rebar end by cold
rolling, which will enlarge the strength of the threaded
rebar.
4. Easy operation.
|
|
Specifications:
Maximum threading rebars size :
200mm
Maximum Diameter of thread rolled : 40mm
Maximum Diameter cutting : 40mm
Rebar Diameter range of threads rolled : 10-40mm
Range of thread pitch rolled for the rolling screw thread:
1.0P~4.0P
Hydraulic power chuck: 4 inch
Penumatic Pressure 5kg/cm
Rolled thread bit: FETTE [USA] 7118
Hydraulic pump : 5HP
Chip conveyor
Coolant pump: 0.4kw
3 Axis CNC Controller
Dimension ==> W: 1700mm L:1900mm H: 1800mm
Weight: 4000Kg |
