In a solar tracking system, the torque tube is a critical structural component, especially for single-axis solar trackers. Torque tubes are typically circular, square, pentagonal, octagonal, or D in shape and coated with galvanizing. The torque tube connects all PV modules, ensuring that they all track the sun’s path simultaneously.

Torque tubes have been used in solar tracker designs to handle both bending and torsional forces. Solar trackers point solar panels or modules in the direction of the sun as it moves across the sky. These devices rotate their orientation throughout the day to track the sun’s path and capture the maximum amount of energy. The torque tube on the tracker is the component that assists in the movement of the panels. Trackers aid in minimizing the angle of incidence (the angle formed by a ray of light and a line perpendicular to the surface) between the incoming light and the panel in photovoltaic systems. This significantly increases the amount of energy generated by the panels. Single-axis solar trackers, in particular, rotate the solar panel(s) around a single axis. There are several types of single-axis trackers, including horizontal, vertical, tilted, and polar-aligned trackers. Each of these trackers rotates supported panels about a single axis.

Energy demand has increased over the world as a result of economic growth, rising prosperity, a rising rate of urbanization, and rising per capita energy consumption. Single-axis trackers are becoming increasingly popular among developers, owing to the additional energy yield they provide over fixed-tilt devices. As indicated by our increased market share, Cisfun/Likest Machine has been able to meet this increasing demand.

Specifications:

Machine Structure:

1. The machine body is designed with the composite assembly with robust and endurable spare materials.

2. Characteristics of the main machine:

(1) Machine Base is made of high tensile strength steel with precision welded and good rigidity.

(2) Shafts, bearings and all components are manufactured precisely to have long lifetime.

(3) Efficient design, easy maintenance.

Application:

Torque tubes are widely used on solar panel tracking systems.

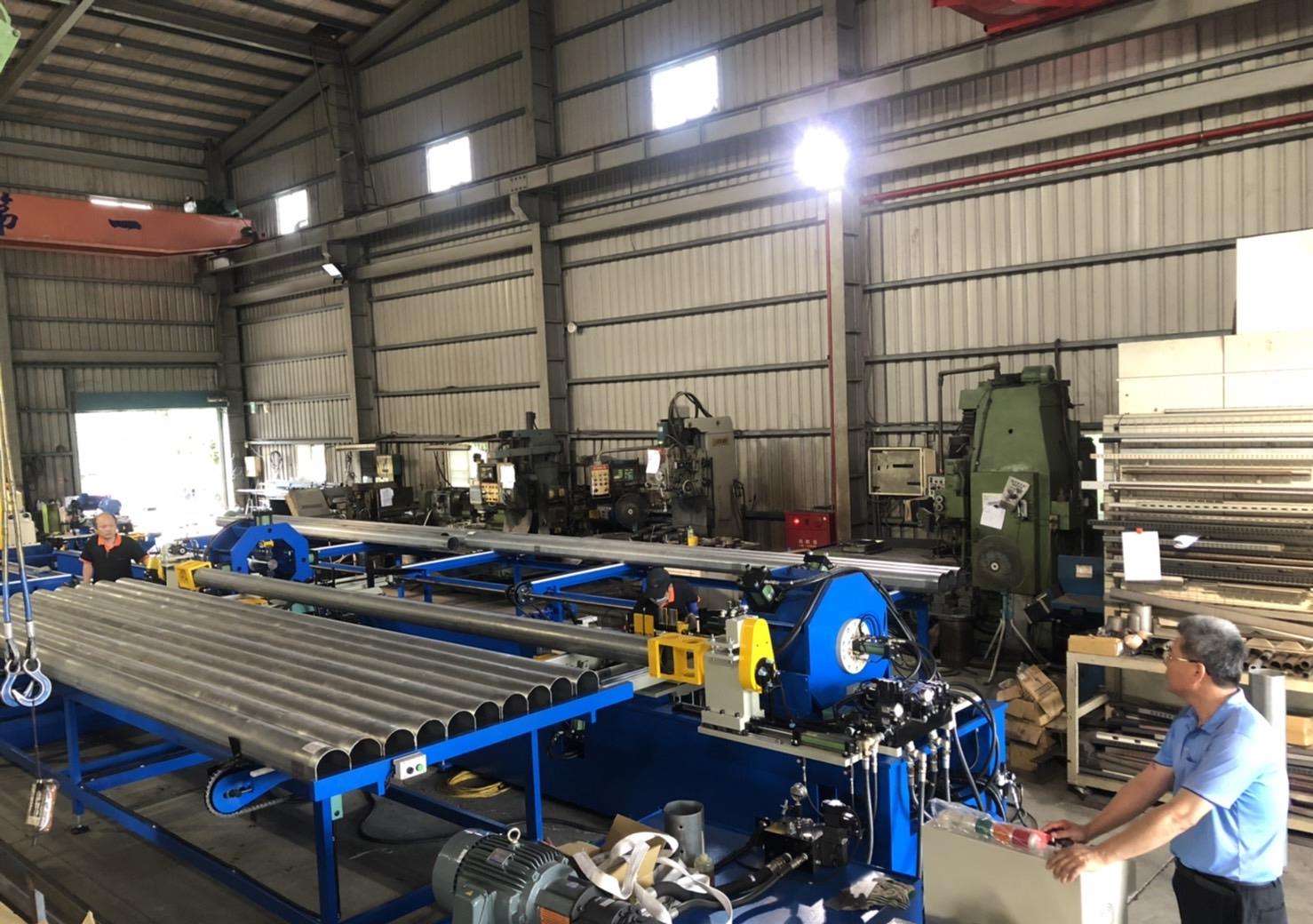

Torque Tube for Solar Panel System

solar farm torque tube
