tube punching and Cutting machine U2-8000-50BSR

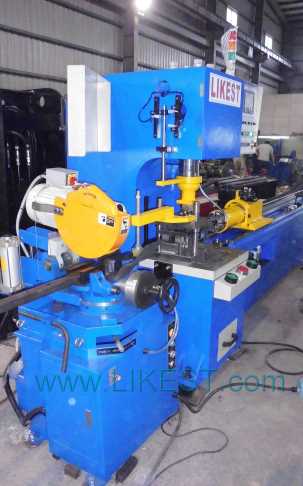

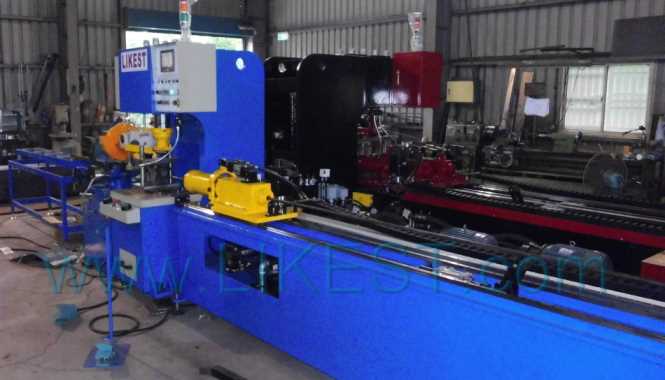

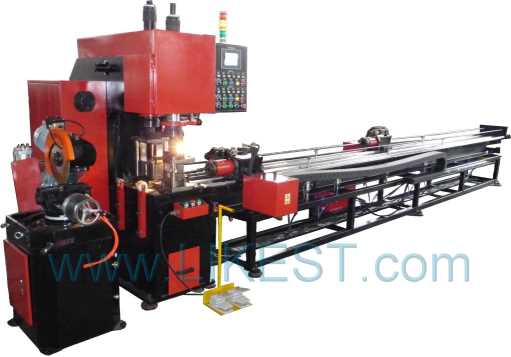

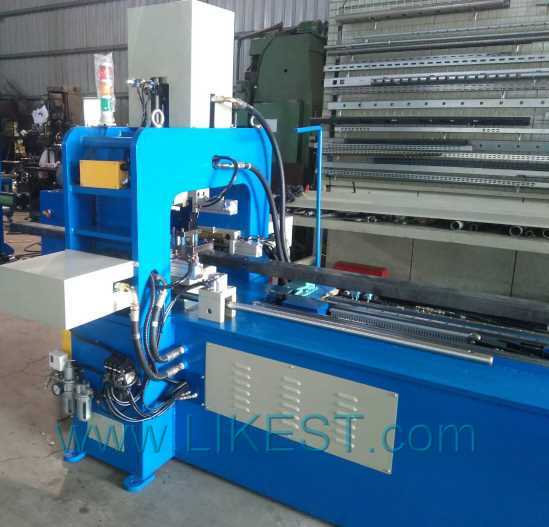

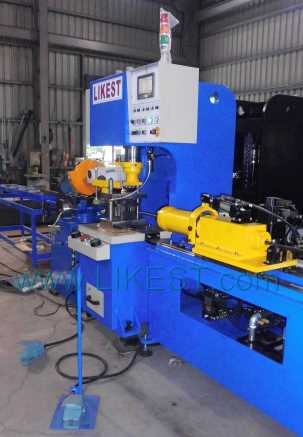

Automatic Punching Cutting Machine is a fully automatic punching and cutting machine, this equipment consists of two units, hydraulic punching unit, cold saw cutting unit, to performing fully automatic punching and cutting.
Video: More Punching Machine Video

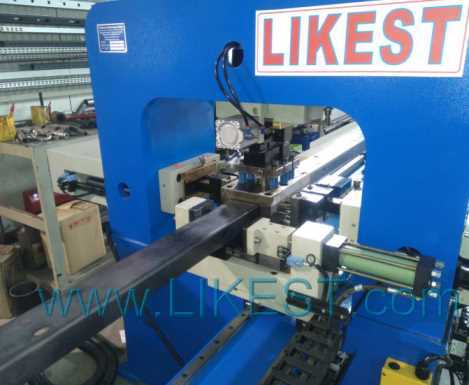

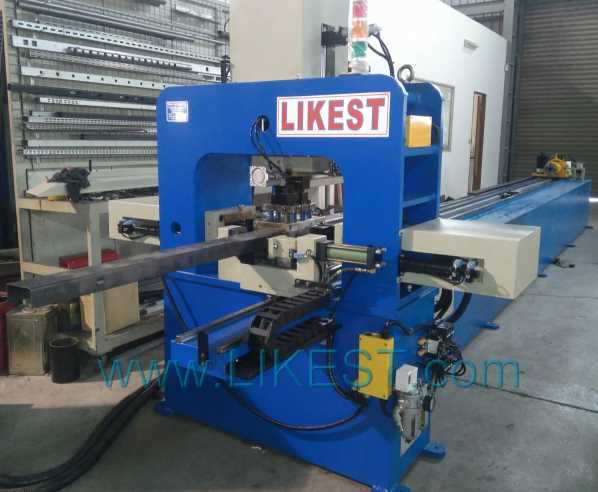

- NC Automatic Digital Single Cylinder Linear Tube/Profile Vertical Punching Machine Line for Punching 1 Tube at a time along in each run through with automatic feeding system
- Rotation Servo Motor: With Y-Axis [FEED] & B-Axis [Rotate] Servo Motors which can clip the Round Tube and rotate the Round Tube for punching the holes in the different angles.
- Back Pulling System: To pull the tube from the other side for punching the last hole which is too close to the tube end.
- Cold saw integrated with punch line controller
OPTION-1: Rotate the cutting angle MANUALLY
OPTION-2: Rotate the cutting angle AUTOMATICALLY controlled on the touch screen
- Punching Capacity: 50 Tons * 1 SET Hydraulic Cylinder
- MAXIMUM Punching Ellipse Through Hole Size: 14x22mm, thickness : 3.2mm.
- Suitable Material: SuperDyma, C.R pipe, Mild Steel with zinc coating (mild galvanized steel), MS ERW Tube, Stainless Steel 304/316, Aluminum, Copper¡K¡K.
- Suitable for Tube size:
Circle tube :Ø20¡ã100mm
Square tube : 20*20mm~100*100mm
Rectangle tube: 10x20~40x80mm
C channel : 50*25*10~100*50*20mm
- Including 1 set of FREE MOLD ( with FULL AUTOMATIC PUNCHING PIN CHANGING SYSTEM) To let the machine can punch 2 different kind HOLE SIZES or HOLE SHAPES on the same tube without changing punching mold.
1)Square tube 100*100*2.3mm
2)Hole size 1: punching 3 Ellipse Through Hole with hole size 1.4x2.2cm
3)Hole size 2: punching 1 Ellipse Through Hole with hole size 1.4x2.2cm.
- Suitable for MAXIMUM Tube Length (AUTO FEEDER):8000 mm
1. 3 independent punching units: This machine can punch 9 different holes on the same tube
2. Auto Tube Punching Machine with 3 Punching Heads (2 Horizontal and 1 Vertical) + Tube Rotation Servo Motor to punch the holes in the different angles: 3 punch units (from top, left, right)
3. Full automatic punching tool shifting system ( Punching pin changing system): Auto tool change up to 9 punch-tools in one cycle.
4. Auto loader and un-loader : It can be equipped with an automatic warehouse-system for the up loading- and unloading of the bars.
5. Servo controlled
6. Rotation Servo Motor: With Y-Axis [FEED] & B-Axis [Rotate] Servo Motors which can clip the Round Tube and rotate the Round Tube for punching the holes in the different angles.
7. Back Pulling System (combined with Servo Motor): To pull the tube from the other side by the same Servo Motor for punching the last hole which is too close to the tube end. On some of the bars/ tubes, the hole distance can vary for the first and last few holes of one finished bars/ tubes. This system can pull the bars/ tubes from the other side for punching the last hole which is too close to the bars/ tubes end. The Back Pulling System that allows it to punch at the edges of the bars/ tubes material and leaving practically no leftover or crop waste in the stock material, i.e., it will save your raw materials.
8. Carriage rotation system
9. Short length shifter
10. Shielding: It is equipped with a set of safety guards.
-1 Punching Station, 1 Tube, up to 3 Punches C-3000SL MORE
-1 Punching Station, 2 Tubes, up to 3 Punches C-3000SLD
-2 independent Punching Stations, 2 Tubes C-3000DL
-Three cylinders automatic tube punching machine with Loading and Unloading System U-3000 MORE
