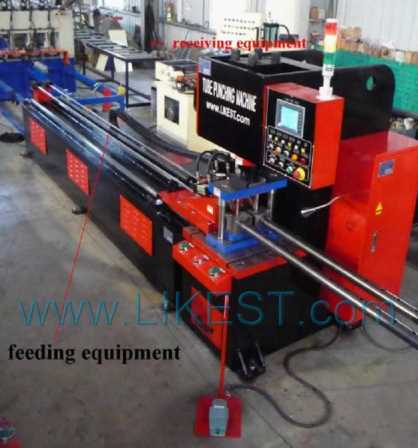

fully automatic Tube Punching Machine

1 Punching Station, 1 Tube, up to 3 Punches  C-3000SL

1 Punching Station, 2 Tubes, up to 3 Punches C-3000SLD

2 independent Punching Stations, 2 Tubes C-3000DL

@

-Auto tool change: up to 3 punch-tools in one cycle

-Auto loader and un-loader

-Servo controlled

-Capacity up to 100mm in tube O.D.

-30 tons of punching power

-Carriage rotation system

-Short length shifter

-Application: Electricity Tower/Electricity Pole, Rack system, Ladders, Metal Scaffolding, Fence/Fencing/Windows, Solar panel stand.

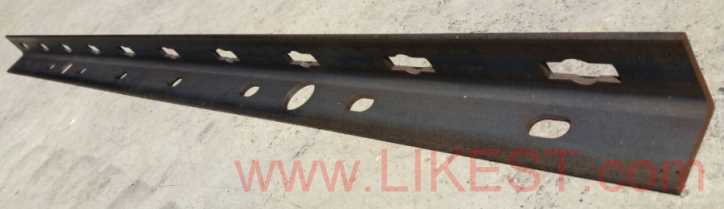

Punched Samples:

 Video:

Feature:

1. Full automatic punching tool shifting system ( Punching pin changing system):Auto tool change up to 3 punch-tools in one cycle.

2. Auto loader and un-loader : It can be equipped with an automatic warehouse-system for the up loading- and unloading of the bars.

3. Servo controlled

4. Rotation Servo Motor: With Y-Axis [FEED] & B-Axis [Rotate] Servo Motors which can clip the Round Tube and rotate the Round Tube for punching the holes in the different angles.

5. Back Pulling System (combined with Servo Motor): To pull the tube from the other side by the same Servo Motor for punching the last hole which is too close to the tube end. On some of the bars/ tubes, the hole distance can vary for the first and last few holes of one finished bars/ tubes. This system can pull the bars/ tubes from the other side for punching the last hole which is too close to the bars/ tubes end. The Back Pulling System that allows it to punch at the edges of the bars/ tubes material and leaving practically no leftover or crop waste in the stock material, i.e., it will save your raw materials.

6. Carriage rotation system

7. Short length shifter

8. Shielding: It is equipped with a set of safety guards.

9. We also make "3 Hydraulic Cylinders Automatic Tube Punching Machine with 3 Punching Heads". This machine can punch 3 sides (vertically and from both horizontal sides) or 2 sides without changing the molds, i.e., coupled with a punching tool shifting, it is able to punch from 3 to 9 different punching tool shapes in 3 different directions.

Specifications:

1 Punching Station, 1 Tube, up to 3 Punches  C-3000SL  /  1 Punching Station, 2 Tubes, up to 3 Punches C-3000SLD

- Single punch station system

- Automatic feeding, clamping, punching

- Capacity up to 25~100 mm in diameter

- Mandrel support to minimize deformation or collapse during punching

- Standard with 3000 mm feeding stroke (may be extended by request)

- Electric servo feeding over linear guides for highest precision

- 30 tons in punching force, suitable for up to 5 mm in thickness in mild steel (higher thicknesses will depend on punch od-thickness ratio)

- Touch screen controls for file management and editing (feeding length, quantity, punch tooling)

- Adjustable stroke for punching height for short punch cycles

- Collecting tray for punch remnants for easy daily maintenance

- Lubrication / cooling system (pneumatic) for punch tooling for longer tool life.

2 independent Punching Stations, 2 Tubes C-3000DL

- Dual Punch Station System:

Punches 1 or 2 tubes at the same time

Up to 2X the production output and maximum flexibility

Each station works independently, allowing punching of different tubes and materials, each with its own punch tooling and program.

- Automatic Feeding, Clamping, Punching

- Capacity: 25~100 mm in diameter

- Mandrel Support to minimize deformation or collapse during punching

- Standard with 3000 mm feeding stroke (may be extended by request)

- Electric Servo Feeding over linear guides for highest precision

- 30 Tons in punching force, suitable for up to 5 mm in thickness in mild steel (higher thicknesses will depend on Punch OD-Thickness ratio)

- Touch Screen controls for file management and editing (feeding length, quantity, punch tooling)

- Adjustable stroke for punching height for short punch cycles

- Collecting tray for punch remnants for easy daily maintenance.

- Lubrication / Cooling system (Pneumatic) for punch tooling for longer tool life.
