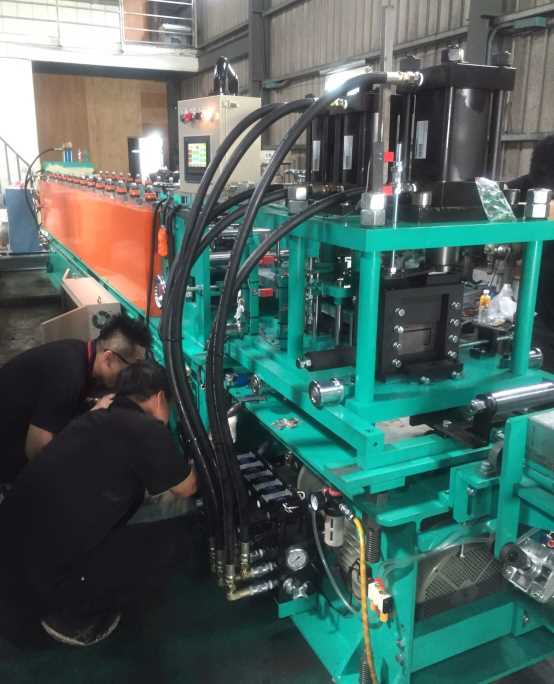

Full automatic C profile channel roll forming machine  ( width adjustment )

°@

Feature:

Solar Mounting Structure C Purlin Making Machine.

Adjustable C Purlin Machine, Lip Channel Machine,

Automatically adjustable in width, height, and thickness.

Adjusting time around 3-4 minutes.

PLC control.

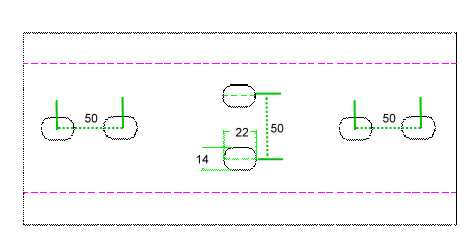

Punching and cutting before forming.

Specifications:

- C Purlin Roll Forming Machine with Electric Width Adjustment.

- For the following C purlin sizes : 75x50x20 / 100x50x20 / 125x50x20 / 150x50x20mm

- Coil Thickness: 1.8~3mm

- Automatic : PLC controlled, full automatic

Forming process:

Uncoiling -> Guide feeding -> Straightening->  Punching -> Cutting -> Roll forming -> Output

Punching and cutting position can be moved according to the customer requirement.

°@

lip channel roll forming machine

°@

Feature:

C Profile Steel Purlin (150) Roll Forming Machine for C 150 Profile. The purlin machine can produce size C 150 It is widely used as the supporter of roof and wall in large-scale and mid-scale construction. Our automatic C purlin machines have a high speed (15~20M/min). .

C purlin with a fixed size.

Punching and cutting after forming.

PLC control.

- DECOILER

- NC FEEDER WITH 2 SETS HYDRAULIC PUNCHING MACHINE

- SPECIAL DESIGN HYDRAULIC CUTTING MACHINE

- ROLL FORMING MACHINE

- SPECIAL DESIGN HYDRAULIC SYSTEM FOR MAIN MACHINE

- ELECTRICAL CONTROL PANEL for ROLL FORMING MACHINE

Forming process:

UNCOILER  è  LEVELING   è ROLL FORMING  è PUNCHING  è CUTTING

 Composition of production line

1) C purlin machine decoiler

    ManualDecoiler: one set

    Un-powered,manually control steel coil inner bore shrinkage and stop

    Max. feeding width: 500mm, coil ID range 470mm°”30mm

    Capacity: Max. 3Ton

    With 3 tons hydraulic decoiler for option

2) C purlin machine punching system

3) C purlin machine rollers

    Rollers manufactured from high quality bearing steel SKD11, CNC lathes, Heat Treatment.

    With black treatment or Hard-Chrome Coating for options.

    With feeding material guide, body frame made from H beam by welding

4) C purlin machine post cutter

    Made by high quality mold steel SKD11 with heat treatment

    Pre-punching & Pre-cutting, stop to punch, stop to cut

5) C purlin machine electronic control cabinet

6) C purlin exit rack

Video:

C-Z Profile Steel Purlin Roll Forming Machine  MORE
