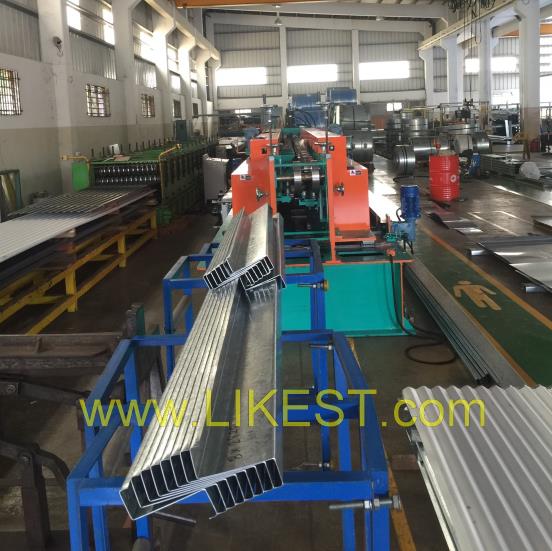

C-Z Profile Steel Purlin Roll Forming Machine

Feature:

1) 2-in-1 C-Z Profiles Machine with Electrical Adjustable (Height & Width)

2) Operator key in and then the control system to adjust the different sizes and thickness automatically. You just push the button and the rollers will adjust the needed sizes without being adjusted by Operator automatically.

3)It takes about 5 minutes or so to adjust.

4)Operator chooses to produce C-purlin or Z-purlin, the machine will adjust the rollers to C-purlin or Z-purlin model automatically.

Forming process:

UNCOILER è PUNCHING è CUTTING è LEVELING è ROLL FORMING è RUN OUT RACK

Composition of production line

A.  HYDRAULIC DECOILER

B.  NC FEEDER WITH 3 SETS HYDRAULIC PUNCHING MACHINE

C.  SPECIAL DESIGN HYDRAULIC CUTTING MACHINE

D. ROLL FORMING MACHINE

E. SPECIAL DESIGN HYDRAULIC SYSTEM FOR MAIN MACHINE

F. PNEUMATIC TYPE RUN OUT RACK

G. ELECTRICAL CONTROL PANEL for ROLL FORMING MACHINE
