CNC & NC Multi-Axis Tube / Pipe / Drum Drilling / Tapping / Cutting/ Thread Rolling/ Milling / Chamfering Machine / Multi Spindle Drilling machine         Español    Contact us

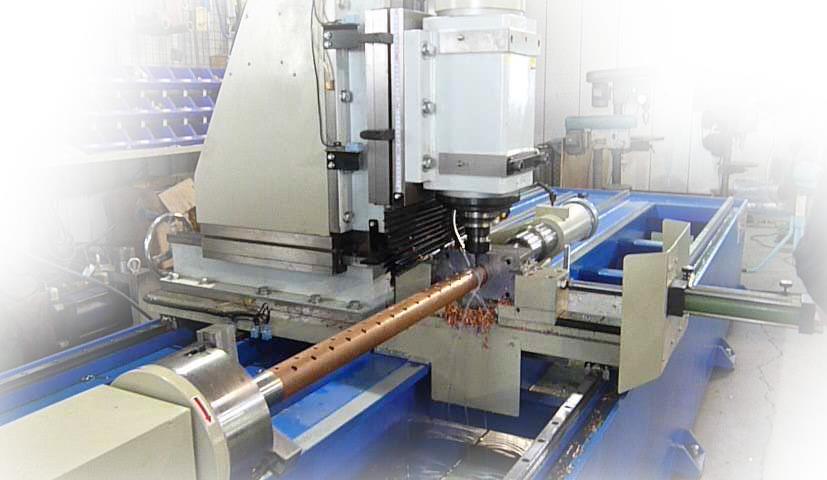

Multi-Axis Tube / Pipe / Drum Drilling Machine / Multi Spindle Drilling machine

Tube size: 10 inch diameter, 20mm thickness (BIGGER size is welcome)

Full Automatic Tube Drilling and Cutting Machine

Características:

1.    Taladra automáticamente agujeros de diferente distancia.

2.    3 tipos de Controladores para elegir: CNC / NC / PLC control. Puede taladrar en cualquier punto del tubo.

3.    Toque- pantalla sensible. (Opcional)

4.    Permite escoger modos de taladrar: manual o automático.

5.    Lubricación por niebla de aceite. (Opcional)

6.    Permite múltiples acomodaciones y colocaciones, máxima capacidad de memoria: 99 sets.

7.    La brica puede ser controlada por el sistema hidraúlico o sistema Servo. (Opcional)

8.    La pieza de trabajo es abrazada por el hidráulico. (Opcional)

9.    Taladrar agujeros en el tubo.

10. Con múltiple-mango controlador.

11. El alimentador de servo motor.

12. 100% por 100 % automática, precisa posición, alta eficiencia y fácil de operar.

13. Selección de la longitud de trabajo 3.5, 4.5 ,5.5 y  6 metros. (Mayores longitudes son bienvenidos )

TURRET TYPE MAGAZINE  ( optional )
1. the turret type magazine employs armless tool Charge. 0i-directional, random tool selection increases tool change speed.  ( optional )
2.The turret accommodates BT40 taper of cutting tool Standard loading capacity is 12 tools.  ( optional )
3. 10-tools magazine is optional.  ( optional )

OPTIONAL EQUIPMENT
Cutting tools 、Controller 、Spindle cooler 、Heat exchanger for control cabinet 、Heavy duty hydraulic clamp (vise) 、Extra powerful vise 、4th axis machining 、Safety screen 、Tool length measuring device 、Moveable clamp carriage 、Pneumatic stop plate 、Safety guard (for cutter) 、Infrared ray safety sensor 、Hidden type elevation safety guard 、Automatic chip conveyor

( optional )

*Automatic drill machine (X-axis automatic positioning, Y-axis manual [optional: automatic] positioning, Z-axis pinpoint automatic drilling).
*PLC control, touch control, can manufacture both equal and unequal distance drilling.
*Accurately controlled oil mist system greatly improves lubrication and cooling effect. ( optional )
*Clamping system is optional. (atmospheric pressure or oil pressure).
*Can make both manual drilling and automatic drilling.

Controller Panel:

Features:

• With interactive command and color display, easy learn and easy operation

• With linear, matrix and flange drill pattern. It would not need the G, M code program.

• With simulation function, it also can indicate which hole will be drilling by move coarser

• It is possible to read the DXF file and display the hole pattern as well as outward of plate on screen.

• Our drill machine is a strong gantry structure, it needs space save 1/2.

• Our drill machine is a compact design. The gantry machine, CNC controller, hydraulic power system those were integrated.

• The distance of two spindle that can be adjusted by hand-wheel and two spindle also can be active individually or simultaneously to reach the flexible goal.

• With keep tight equipment to insure machine stable while machine is drilling.

• The alignment and hydraulic fixture of plate which are two in one designed, the plate load, unload, clamp quickly and convenience.

• The machine with four work area on the table, while one side of table is working another side of table allow user to load or unload plate. Thus, the machine there is no idle time and twice the amount of drilling.

• With avoid spraying designed to save cooling water and keep the environment clean.

• The spindle unit with automatic initial high for drilling:

• The spindle unit is provided with a sensitive self-controlled speed change function for rapid reach to plate then change to preset speed for drills.

•  The user does not need consider the tool length and set automatic broken chip during drilling to enhance efficiency.

• The spindle rpm control by inverter and the number of rpm is displayed on LCD. The user change   rpm by knob adjusted.

• Program hold can be active in any time while the tool dull, after replace tool, easy return and restart.

• With center drilling function, providing user easy check the hope pitch of plate

• The machine is provided with Auto-Off function. This function suit a large plate and there is a lot of hole to be drilled on night work.

• It also can be optioned chip conveys, for chip collect and clean.

Specification:

*This information is subject to change without prior notice.

 Features:

•  With interactive command and color display, easy learn and easy operation

•  With linear, matrix and flange drill pattern. It would not need the G, M code program.

•  With simulation function, it also can indicate which hole will be drilled by moving coarser

•  It is possible to read the DXF file and display the hole pattern as well as outward of plate on screen.

•  Our drill machine is a strong cantilever structure, that correspond to humane engineering designed,to allow compact and easy operation

•  The machine’s X,Y axes, were equipped ball screw , AC servo motor and linear guide, providing accurate positioning.

•  The machine, CNC controller, hydraulic power system that is integrated design, to allow easy installing

•  The alignment and hydraulic fixture of plate which are two in one designed, the plate load, unload, clamp quickly and convenience

•  The machine with two work area on the table, while one side of table is working another side of table allow user to load or unload plate. Thus, the machine there is no idle time and twice the amount of drilling.

•  With avoid spraying designed to save cooling water and keep the where environment clean.

•  The spindle unit with automatic initial high for drilling: The spindle unit is provided with a sensitive self-controlled speed change function for rapid reach to plate then change to preset speed for drills. The user does not need consider the tool length and set automatic broken chip during drilling to enhance efficiency.

•  The spindle rpm is provided with an inverter controlled and by knob adjusted also the number of rpm is displayed on LCD.

•  Program hold can be active in any time while the tool dull, after replace tool, easy return and restart.

•  With center drilling function, easy check the hope pitch of plate

•  The machine is provided with Auto-Off function. This function is suit a large plate and that there is a lot of hole to be drilled on night work.

•  It’s also can option the chip conveys, for chip collect and clean.

Specifications:

Machine type CSD-06/20 Drilling capacities Thickness  100mm        Hole diameter      16∮~32∮ Spindle Gear ratio 01:05 Rpm        160~500rpm Power  Spindle motor         5 HP  Inverter 5 HP Hydraulic unit 3 HP AC Servo motor         1 HP Plate dimension (MAX) L* W  mm Work area Total area       L*W 2000*600 Two area        L*W 1000*600 X,Y positioning speed 9000mm/min Hydraulic Fixture 6sets Alignment 2 sets Power supply 3 Phase,220V,10HP Machine weight 2.5 T Dimension(L*W*H) 3185*2130*2643 mm Chip conveys  Option  (L+1215 mm)

*This information is subject to change without prior notice.

Tube Punching Machine

CNC/NC TWO SPINDLE PRECISE DRILLING MACHINE for JOINT-PLATES
