Granite
cutting machine (automatic)/HAND STONE CUTTER
¡@

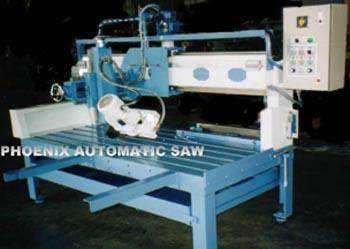

Specification:
The Blade Saw Head can adjust to 0/45/90 degree, i.e., With motorized table and MANUAL tilting head at 0, 45 and 90 degree (the head tilt 45 degree or 90 degree; the cutting table moved by motor)
Main Motor>>7.5HP or 5 HP, R.P.M.: 2000 (ADJUSTABLE rotational speed is optional). We also manufacture as per buyers requirements
Transverse motor for arm >>UP and DOWN (1HP)
Transverse motor for arm >>LEFT and RIGHT (1/2HP)
Cutting table >>Forward and back (1HP). The speed control is for the movement of the cutting.
A belt cover on belt connection from main motor to cutting spindle.
Spindle: 50mm. (the spindle is design to a little less than 50mm to fit a blade diameter of 50mm.), There is no problem to use 350mm blade with hole 50mm.
Machine Dimension: 2900 (L)*1300(W)*1950(H)mm
Working Table Size (Cutting Table): 1650(L)*870(W)mm
Package Wooden Case: Size:3.2m(L)*1.9m(W)*2.2m(H); G.W.:2.8 tons.
Control Box Functions:
|
(1) |
POWER INDICATOR |
(5) |
START(FOR AUTOMATIC) |
(9) |
BLADE(FOR MANUAL) |
|
(2) |
POWER ON/OFF |
(6) |
UP |
(10) |
LEFT |
|
(3) |
EMERGENCY STOP |
(7) |
DOWN |
(11) |
RIGHT |
|
(4) |
MANUAL/AUTOMATIC |
(8) |
SPEED CONTROL(for cutting Table) |
(12) |
FORWARD/BACK(for Manual) |
¡@
¡@
Features:
The cutting platform join to Cutting Table. So that the client need not engage a technician to install the machine for them. Also, it would be easier to sell the machine.
Press the ON/OFF button, it will automatically put out the cutter to spray and cut.
Rail Sealed and Protected by Oil Reservoir.
The cutting tool will ascend automatically after cutting to save cutting tool worn out rate for 40%.
The cutting tool may turn around for replacement of granite molded cutter housing.
It can the semi-circle and full-circle cutting.
One machine serves multiple purposes.
¡@
Instruction:
Steps of Automatic:
1. Turn On the POWER (1)
2. Adjust (12) to Middle Position
3. Adjust (4) to Automatic
4. Press Start (5); then the Cutter will operate automatic.
5. The Blade will down automatically
6. The Cutting Table will Forward automatically (The Cutting Distance (Length) can be changed by adjusting the Limit Switch under the Cutting Table)
7. After Cutting to the end of the Stone, The Blade will up automatically.
8. The Cutting Table will Back to the Original Position automatically.
Steps of Manual (Single Motion):
1. Turn On the POWER (1)
2. Adjust (4) to Manual
3. Up/Down the Bladeè(6) UP/(7) DOWN
4. Left/Right the Bladeè(10) LEFT /(11) RIGHT
5. FORWARD/BACK the Cutting Tableè(12)
6. For Emergency Situation, please press (3) EMERGENCY STOP
¡@
¡@
