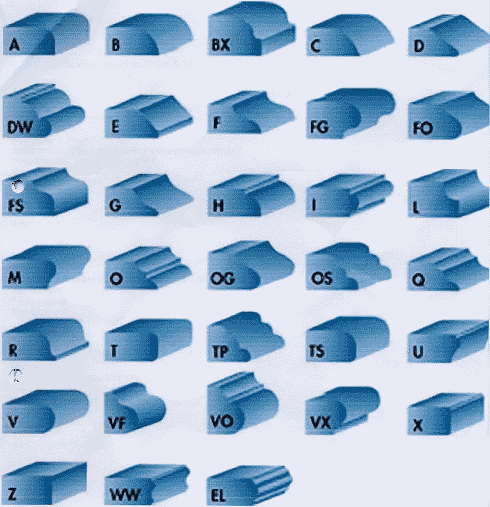

Our Grinding Edge Machine main function is making different shape as like following photo. It is suitable to grind marble and granite. The granite and marble are usually install in kitchen table and stair. The Water Outlet is changeable by adjust the switch. The white machine body is WATER-RESISTANCE and Insulation. The motor is inside of the white machine body.

Our Stone Profiling Router machines can be used on any type of stone including granite & marble. All our routers are Hydro-Float, so your slabs would not get scratched from profiling the edges. Made for heavy, harsh use, these are made with highest quality material with rugged construction.

Function: On the market the tile material is getting strong (HARDER) due to on generally of tile cutting machine could not complete cutting tile. According to our make machine experience, we develop to use 4” blades that it's very easy to cut very strong (HARDER) tile and better than other size of blades. Thereby, we make 1100 series Tile cutting machine. Also the 4” blades have a cheaper price at the moment, so the users can reduce cutting cost.

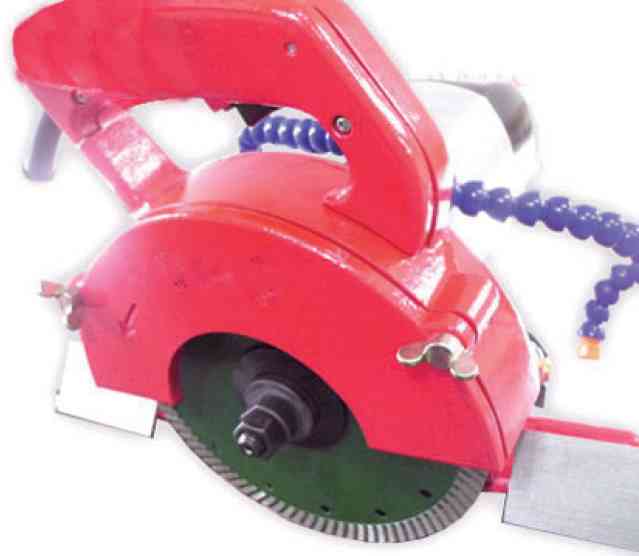

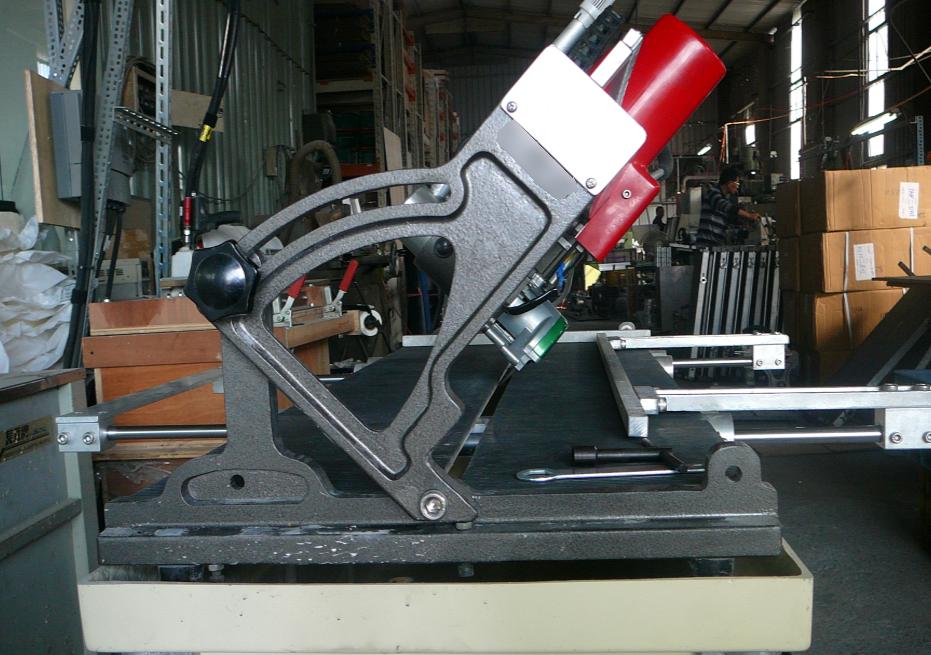

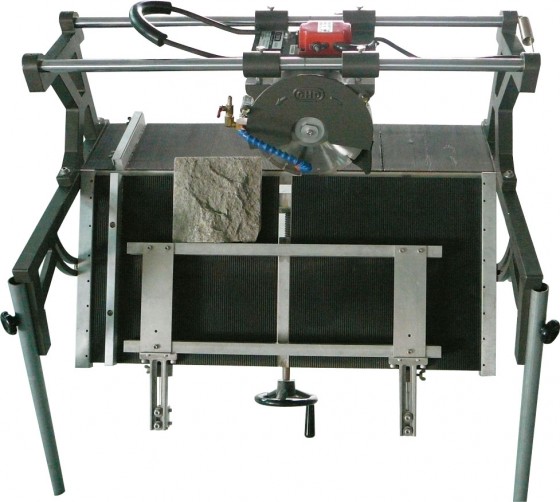

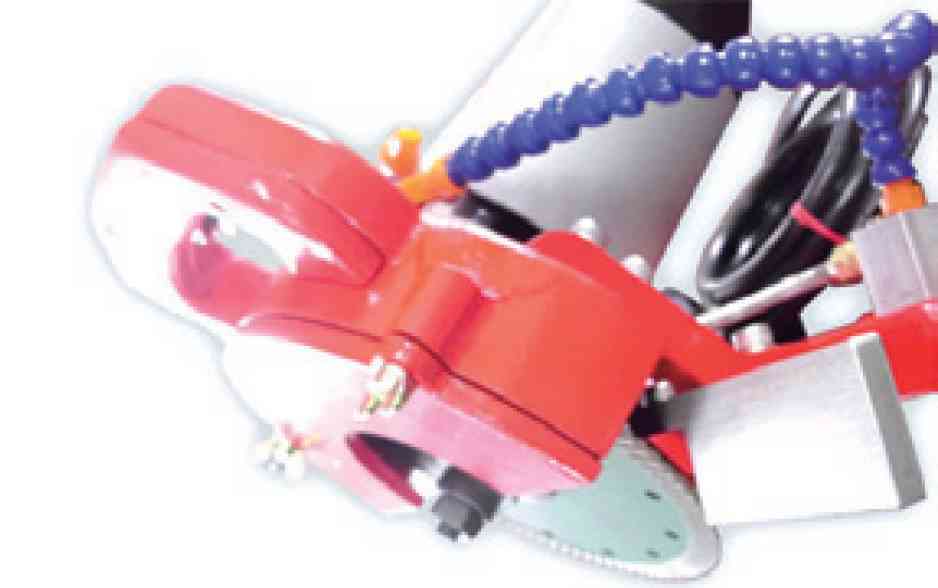

45 Degree Stone & Tile Cutting Machine/Tools/Cutter (Can Change with the above TILE CUTTER)

Type

Diamond End Mills Size

Max. Stone Thickness

Ellipse Diameter

RPM

Weight

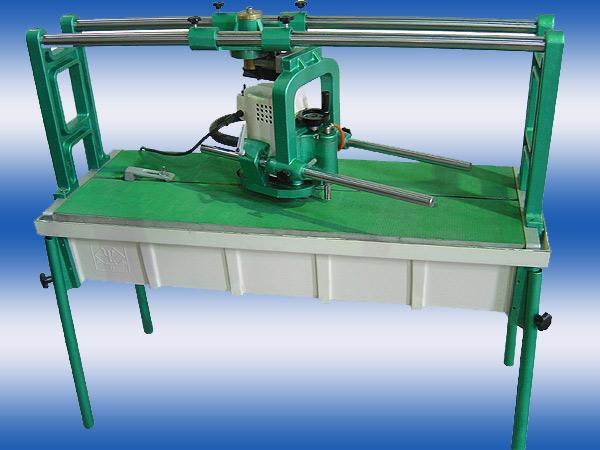

CFHQ10 Ellipse Cutting Machine for mass production

16mm

4cm

10cm~100cm

12000

85kgs

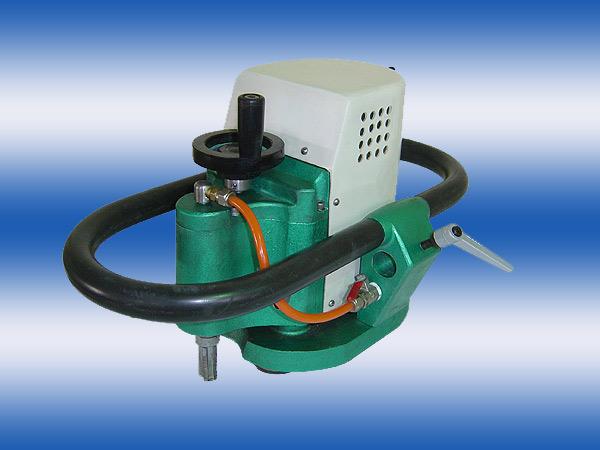

CFQ10 Curve cutting Machine for any curve.

This machine can for granite and marble cutting for a pre finished countertop to cut the sink hole ,cut and join and make a faucet hole according to the customer 's measurements. The Adjust Wheel can adjust the cutting height for the under-mount sink.

Arbitrary

15kgs

Pneumatic angle polishing machine NEW

Type

Description

Feature

Capability

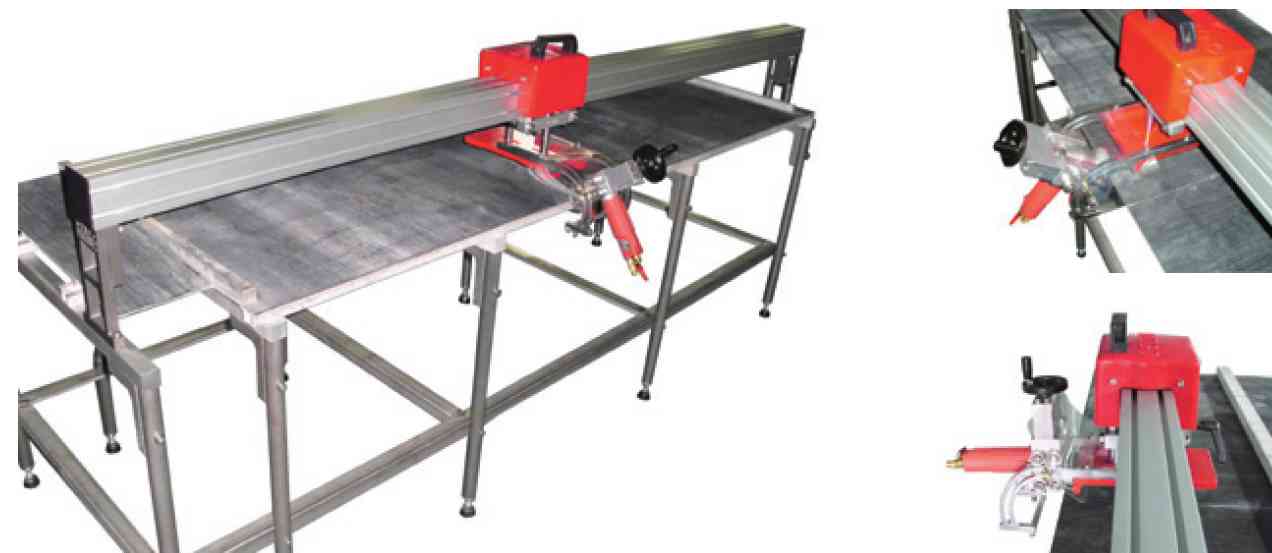

CF-R20

Pneumatic Angle Polishing Machine

(Table-Rail style)

1)Water polishing is very easy with worktable.

2)Working great on any angle ; polishing crystal shine.

3)Stone like granite ; marble ; artificial stone or tiles can be polished quickly on any angle. more

1)Optimun Air Pressure:6-7kg/cm2

2)Rotation speed:4500 RPM

3)Size of backing pad:3" (80mm)

4)Length:120CM /150CM /200CM /250CM /300CM & custom-made

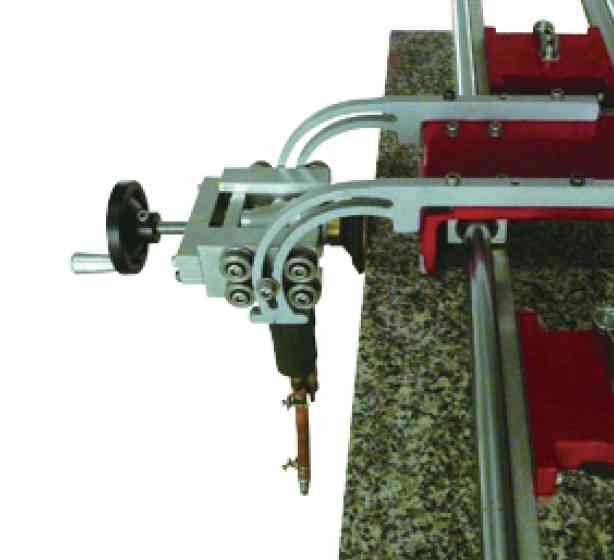

CF-R10

Pneumatic Angle Polishing Machine

(Suction-Rail style)

1)Working great on kitchen counter which is artificial stone or homogeneous tile.

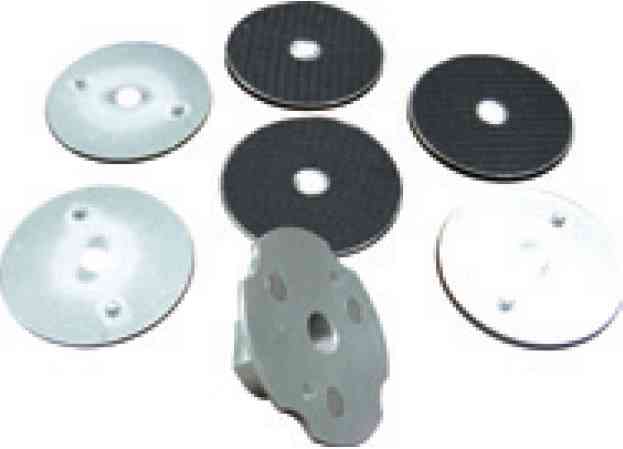

2)Change backing pads quickly & easily with suction form of backing pads.

3)Polishing on kitchen counter is very easy and make it crystal shine.

4)Using suction to fix on materials does not occupy space and could be portable.

5)The length of rail:110cm & 160cm can be chosen. more

1)Optimun Air Pressure:6-7kg/cm2

2)Rotation speed:4500 RPM

3)Size of backing pad:3" (80mm)

4)Length:110CM /160CM /220CM /270CM /320CM & custom-made

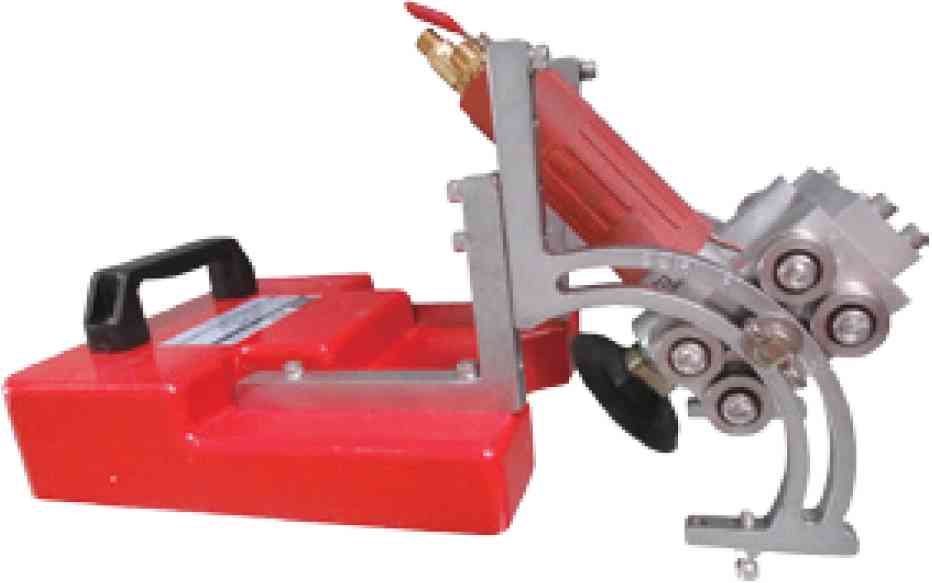

CF-R30A

Pneumatic Angle-Polishing Machine

1)Working great on any angle with crystal shine. Portable & Does not occupy space.

2)Stone like granite ; marble ; artificial stone or tiles can be polished quickly on any angle. more

1)Air pressure: 6-7Kg

2)Speed: 11000rpm

3)Diameter of backing pad: 3”or4”

4)Stone Thickness: 10-20mm

5)Weight: 9.5Kg

Type	Description	Feature	Capability

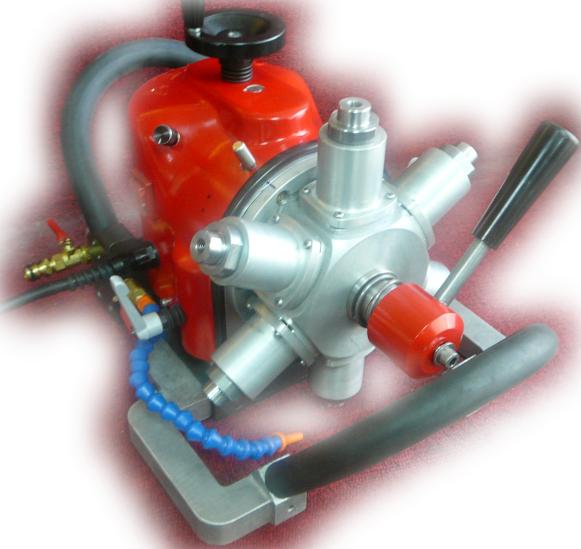

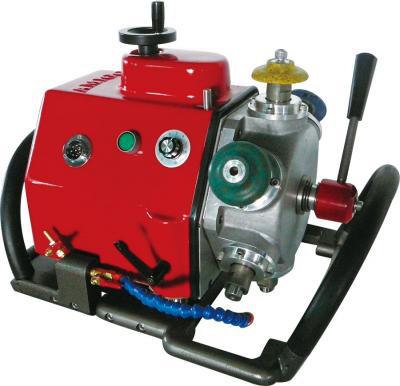

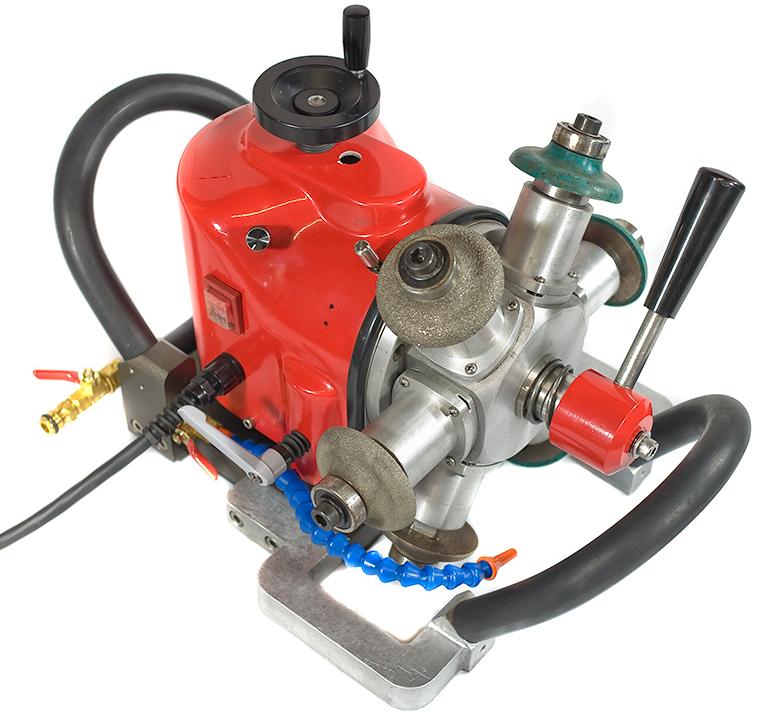

	CFM60-1 (CFM-60) Six Step Router (HEAVY DUTY) 6-CUTTING-WHEELS Stone Marble Granite Grinding/Cutting Edge/Chamfering Machine Suitable Stone Thickness: 1~4cm HYDRO-FLOAT /Buoyancy/Floating Power Socket Base with BALL & SOCKET NEW	Tired if changing profile bits while shaping a stone slab edge for different steps? We have the solution here! Finally a stone router with 6 attachments for router bits with different grits. 　 Attach the bits and start profiling without any hesitations. Use one bit and conveniently move to the next step simply by rotating to next bit. M6-1 profiling router has the well known Hydro-Float base Routers are widely known for in the market, along with the water hose attachment.	1)Input: Single Phase 110V or 220V 2) Power: 3HP 3)Output: 1500W, 12Amp 4)Carbon Brush Motor 5)Rotation: 8500 RPM's True Variable Control (with Variable Speed Control) 6)Maximum Diamond Cutting Wheel Diameter: 90mm 7)Suitable Stone Thickness: 1~4cm 8)Weight: 49 kg

	CFM60-2 (CFS-60) Six Step Router (LIGHT DUTY) 6-CUTTING-WHEELS Stone Marble Granite Grinding/Cutting Edge/Chamfering Machine Suitable Stone Thickness: 1~2cm HYDRO-FLOAT /Buoyancy/Floating Power Socket Base NEW	Tired if changing profile bits while shaping a stone slab edge for different steps? We have the solution here! Finally a stone router with 6 attachments for router bits with different grits. 　 Attach the bits and start profiling without any hesitations. Use one bit and conveniently move to the next step simply by rotating to next bit. CFM60-2 profiling router has the well known Hydro-Float base Routers are widely known for in the market, along with the water hose attachment.	1)Input: Single Phase 110V or 220V 2)Output: 1500W, 12Amp 3)Carbon Brush Motor 4)Rotation: 8500 RPM's True Variable Control (with Variable Speed Control) 5)Maximum Diamond Cutting Wheel Diameter: 75mm 6)Suitable Stone Thickness: 1~2cm 7)Weight: 22kg

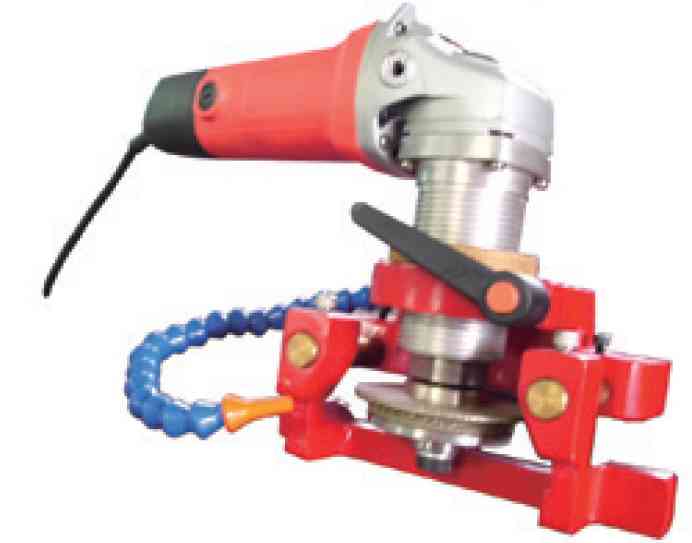

	CF-MX12300 Portable grounding edge machine CF-MX12300 is specific for completed tile installation and restoring. Specially designed for construction site. Best for stone restoration & installation. NEW	1. It is very light and portable. 2. It can ground on any shape by changing wheel. 3. Doing job quickly with 11000RPM. 4. Doing great on ground and wall with light body designed.	1)Voltage:110V /220V 2)Capability:10-20mm 3)Speed:11000rpm 4)Weight:4.3Kg

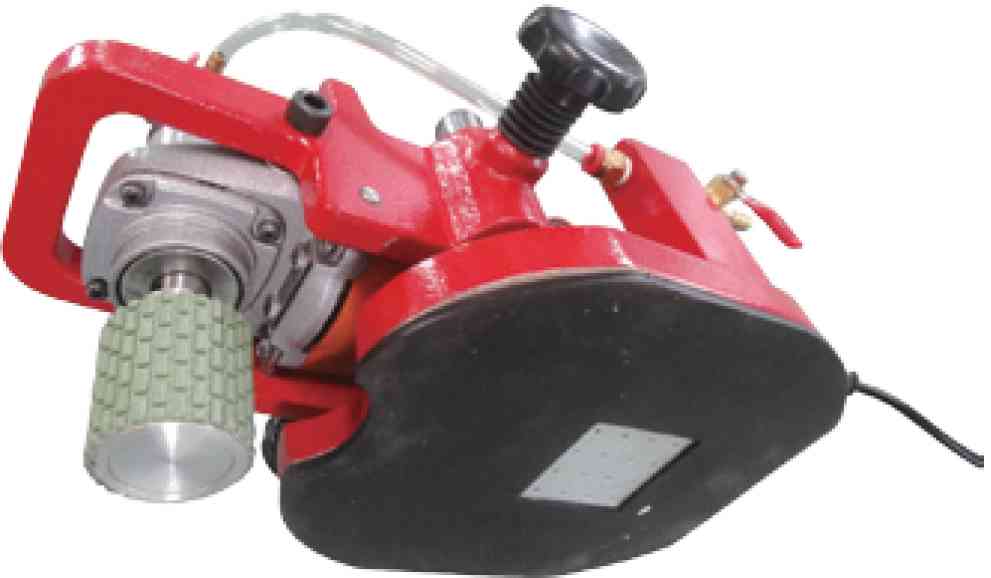

	CF-Q30 HYDRO-FLOAT Internal Curve Polisher It can polish any stone and do whatever internal or external of curve with adjustable speed. NEW	1.Hydro-Float: make no damage on stone surface. 2.Center injection cooling system: Q-3 perform great durability. 3.Speed adjustment: Do polish on any stone with 0-8500 rpm. 4.Cylinder soft polishing wheel: High efficiency. more	1)Voltage:110V /220V 2)Capability:10-40mm 3)Speed:8500rpm 4)Weight:7.6Kg

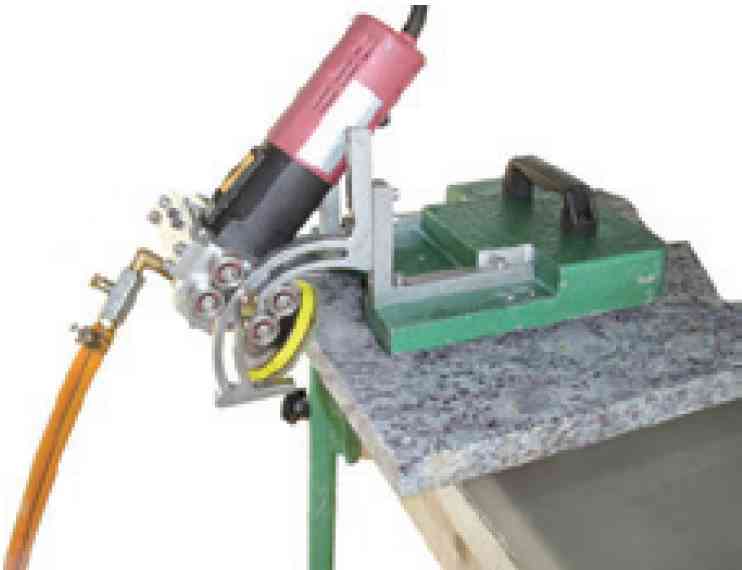

	CF-R30 Electric Angle-Polishing Machine Working great on any angle with crystal shine. Portable & Does not occupy space. NEW	1. Works great on polishing natural stone, artificial stone and homogeneous tile. 2. Complete angle-polishing easily by having special support tool. 3. Operate easily and widely without length limit. 4. Change backing pads fast & easily with suction form of backing pad. more	1)Voltage:110V/220V 2)Speed: 0-4500rpm 3)Diameter of backing pad: 3”or4” 4)Weight:12Kg

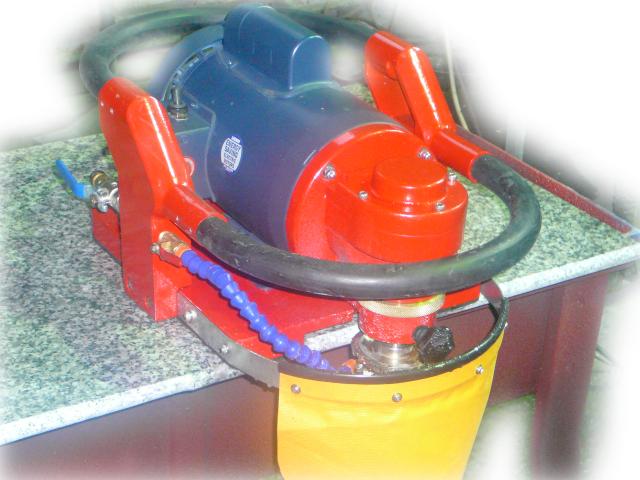

	CFCP100 Stone Marble Granite Grinding/Cutting Edge/Chamfering Machine No need Power Adapter, You can plug the power cord to use it directly	2HP super fast straight lines inside and outside construction horsepower curve fillet bevel fully functional (HYDRO-FLOAT and BALL & SOCKET Base)	1)Power: 2HP 2)Input: Single Phase 110V /220V 3)Rotation: 5000 RPM 4)Maximum Diamond Cutting Wheel Diameter: 90mm 5)Suitable Stone Thickness: 1~4cm 6)Weight:30KG
The Feature of Basement Structure:
	BALL & SOCKET ( Species diversity inside and outside the lines and curves fillet bevel fully functional)		HYDRO-FLOAT NEW (New improved insulation weight frivolous security forces chassis do not scratch the stone surface. Species diversity inside and outside the lines and curves fillet bevel fully functional)
Type	Description	Feature	Capability

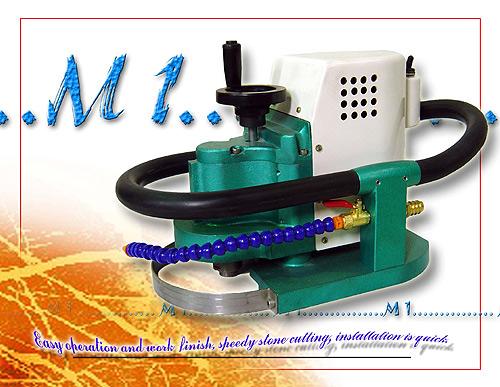

	CFM10 Light-Duty Cutting Edge Machine BALL & SOCKET Base It is suitable for different cutting styles such as straight line, curve line and internal circle	Its emphasizing body engineering, a small machine can bring the big work efficiency, powerful engine, and lightweight, extremely portable. Easy operation and work finish, speedy stone cutting, installation is quick.	1)Voltage:110/220V 2)Power:2KW 3)Rotation:8500RPM 4)Suitable Stone Thickness:1~4cm 5)Maximum Diamond Cutting Wheel Diameter:90mm 6)Weight:35lbs (15kg)
	CFM20 Light-Duty cutting edge machine HYDRO-FLOAT /Buoyancy/Floating Power Socket Base	New improved insulation weight frivolous security forces chassis do not scratch stone. Species diversity inside and outside the lines and curves fillet bevel fully functional. (HYDRO-FLOAT)	1)Voltage:110/220V 2)Power:2KW 3)Rotation:8500RPM 4)Suitable Stone Thickness:1~4cm 5)Max. Bit Diameter: 100mm 6)Weight:35lbs (15kg)
	CFM2N Light-Duty cutting edge machine (with Variable Speed Control) HYDRO-FLOAT /Buoyancy/Floating Power Socket Base	New improved insulation weight frivolous security forces chassis do not scratch stone. Species diversity inside and outside the lines and curves fillet bevel fully functional. (HYDRO-FLOAT with variable speed control)	1)Voltage:110/220V 2)Power:2KW 3)Rotation:8500RPM (with Variable Speed Control) 4)Suitable Stone Thickness:1~4cm 5)Maximum Diamond Cutting Wheel Diameter: 90mm 6)Weight:35lbs (16kg)

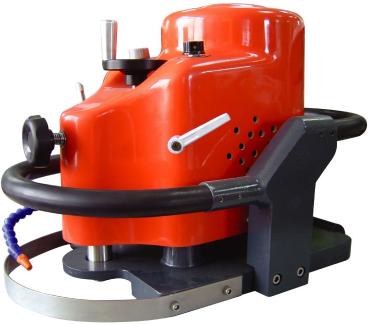

	CFM30 Heavy Cutting Edge Machine BALL & SOCKET Base It is traditional style and improve model, the complete bigger power.	Good insulation 3HP security horsepower super fast and secure stone chamfering molding (BALL & SOCKET Base)	1)Voltage:3 Phase / 220V 2)Power:3HP 3)Rotation:8500RPM 4)Suitable Stone Thickness:1~4cm 5)Maximum Diamond Cutting Wheel Diameter: 90mm 6)Weight:77lb (35KG)
	CFM40 Heavy Cutting Edge machine HYDRO-FLOAT /Buoyancy/Floating Power Socket Base	Good insulation 3HP security horsepower super fast and secure stone molding chamfering Buoyancy chassis do not scratch the stone (HYDRO-FLOAT)	1)Voltage:3 Phase / 220V 2)Power:3HP 3)Rotation:8500RPM 4)Suitable Stone Thickness:1~4cm 5)Maximum Diamond Cutting Wheel Diameter: 90mm 6)Weight:77lb (35KG)
	CFM40S Heavy Cutting Edge machine (with Variable Speed Control) HYDRO-FLOAT /Buoyancy/Floating Power Socket Base	Good insulation 2HP security horsepower super fast and secure stone molding chamfering. Buoyancy chassis do not scratch the stone (HYDRO-FLOAT with variable speed control)	1)Voltage:220V/1 PHASE 2)Power:2HP/3 Phase 3)Rotation:10000RPM (with Variable Speed Control) 4)Max. Stone Thickness:60mm 5)Maximum Diamond Cutting Wheel Diameter: 100mm 6)Weight:48lbs (25kg)

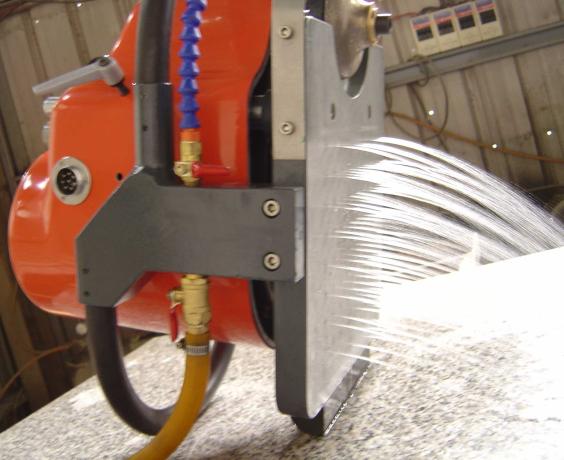

	CFM50 Heavy Cutting Edge Machine (with Variable Speed Control) HYDRO-FLOAT /Buoyancy/Floating Power Socket Base	Good insulation 3HP security horsepower super fast and secure stone molding chamfering. Buoyancy chassis do not scratch the stone (HYDRO-FLOAT with variable speed control)	1)Voltage:220V/1 PHASE 2)Power:3HP/3 Phase 3)Rotation:9000RPM (with Variable Speed Control) 4)Max. Stone Thickness:60mm 5)Diamond Grinding Wheel: External Diameter Under 100mm 6)Weight:77lbs (38kg)

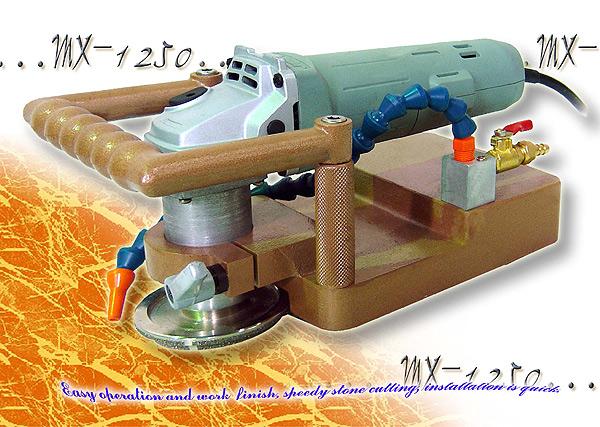

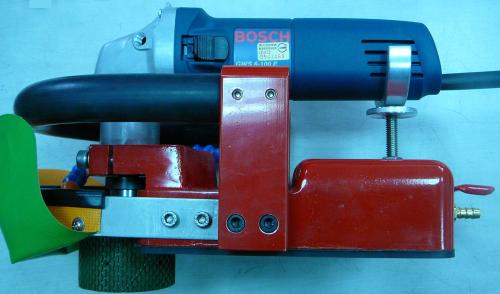

	NEW CFMX-12500 Tile Cutting Edge Machine / Mini Profiling Router 1)with HYDRO-FLOAT Function 2)with BALL & SOCKET Base	It is suitable for different cutting styles such as straight line, curve line and internal circle (with BOSCH motor)	1)Voltage:110/220V 2)Rotation:11000 RPM 3)Suitable Stone Thickness:1~2cm 4)Maximum Diamond Cutting Wheel Diameter: 80mm 5)Weight:13lbs (6kg)
	CFMX12500A Tile Cutting Edge Machine / Mini Profiling Router 1)with HYDRO-FLOAT Function 2)with BALL & SOCKET Base		1)Voltage:110/220V 2)Rotation:11000 RPM 3)Suitable Stone Thickness:1~2cm 4)Maximum Diamond Cutting Wheel Diameter: 80mm 5)Weight:18lbs (8kg)
	CFMX-12500 Tile Cutting Edge Machine It is suitable for different cutting styles such as straight line, curve line and internal circle
	NEW CFMX-12600 Tile Cutting Edge Machine / Mini Profiling Router Type 1)with HYDRO-FLOAT Function Type 2)with BALL & SOCKET Base		1)Voltage:110/220V 2)Rotation:9000 RPM 3)Suitable Stone Thickness:1~2cm 4)Maximum Diamond Cutting Wheel Diameter: 80mm 5)Weight:22lbs (10kg)

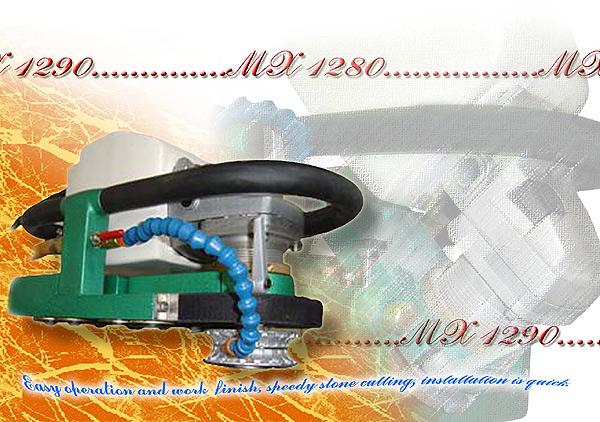

	CFMX12800 Multi-Function Cutting Edge Machine BALL & SOCKET Base	Second generation design Emphasize body engineering Small machine has powerful engine and lightweight Easy operation and finishing work quickly to save time and money	1)Voltage:110/220V 2)Rotation:8500 RPM 3)Suitable Stone Thickness:1~4cm 4)Maximum Diamond Cutting Wheel Diameter:90mm 5)Weight:37lbs (17kg)
	CFMX12800N Stone Grinding Edge Machine (Variable Speed) BALL & SOCKET Base	Second generation design Emphasize body engineering Small machine has powerful engine and lightweight Easy operation and finishing work quickly to save time and money	1)Voltage:110/220V 2)Rotation:8500 RPM 3)Suitable Stone Thickness:1~4cm 4)Maximum Diamond Cutting Wheel Diameter:90mm 5)Weight:40lbs (18kg)

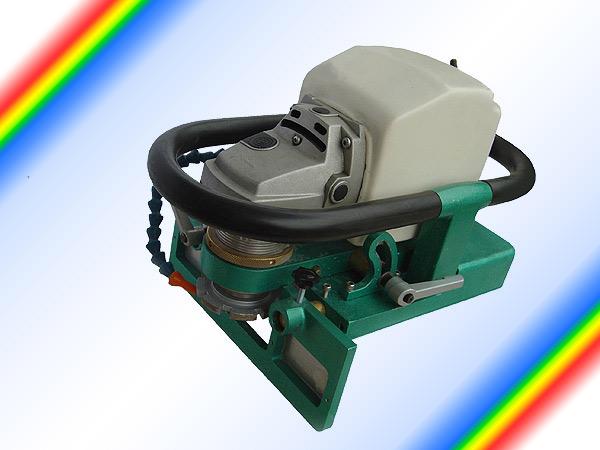

	CFMX12900 Multi-Function Cutting Edge Machine BALL & SOCKET Base	Can do any ANGLE/BEVEL of stone processing; can grind edge and bevel; has completing function Emphasize body engineering Substitute large machine has powerful engine Operate is very easy and promote working efficiency more	1)Voltage:110/220V 2)Rotation:8500 RPM 3)Suitable Stone Thickness:1~4cm 4)Maximum Diamond Cutting Wheel Diameter:90mm 5)Weight:44lbs (20kg)

Type	Cutting Length Thickness	Cutting Wheel Diameter	Voltage	Rotation (RPM)	Weight (KG)

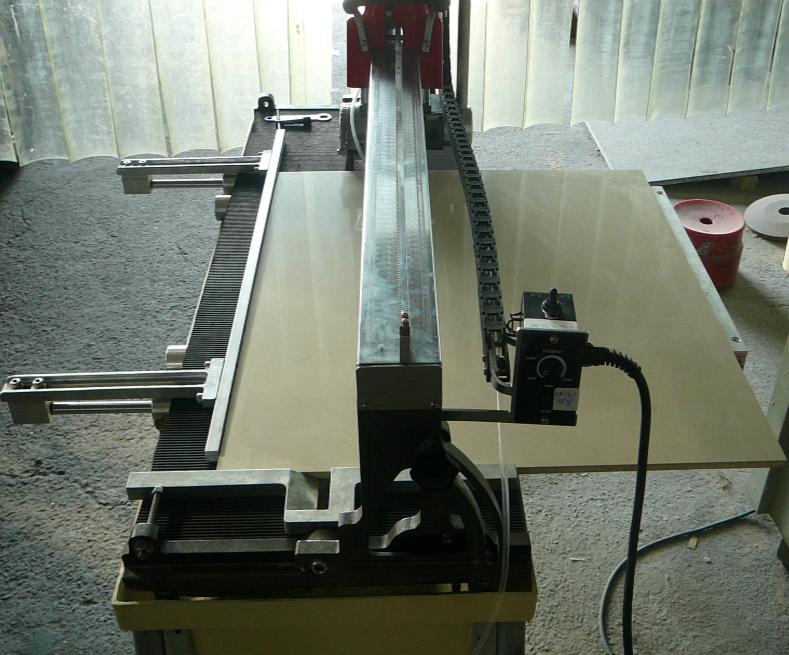

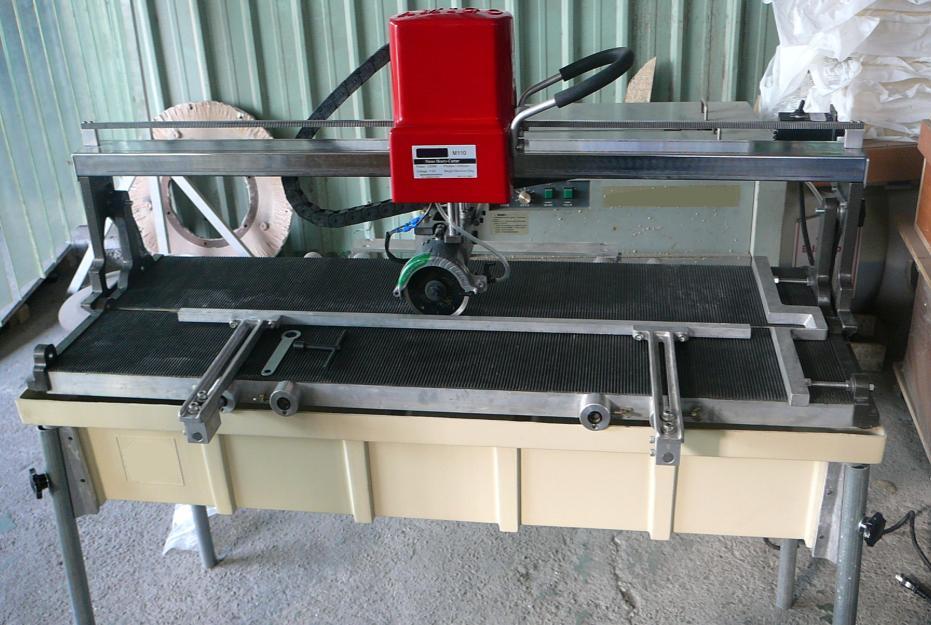

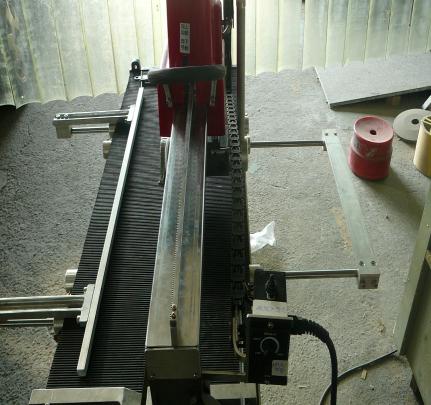

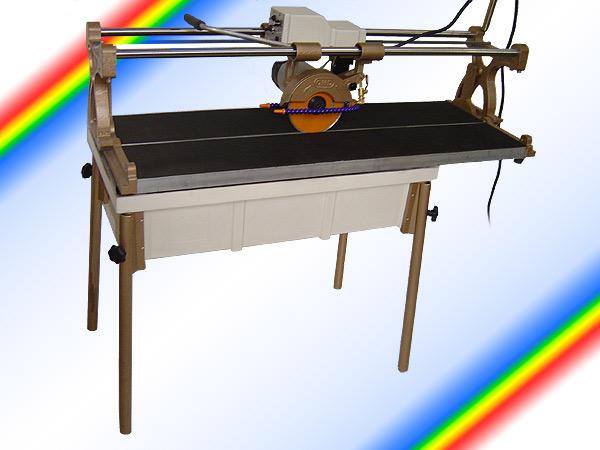

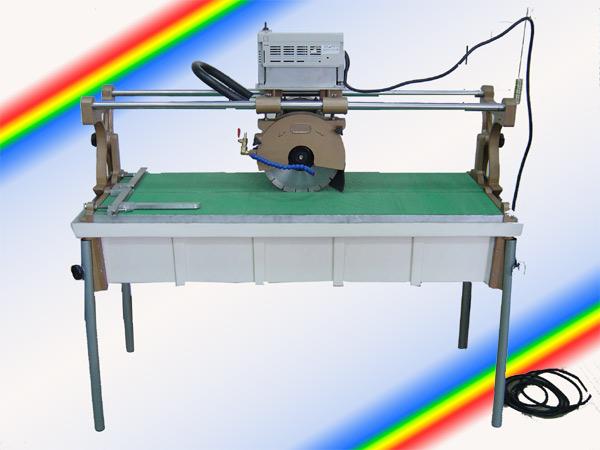

CFS1100 Tile Cutting Machine	60cm X 60cm X 2.5cm	4"	110V/220V	11000	47

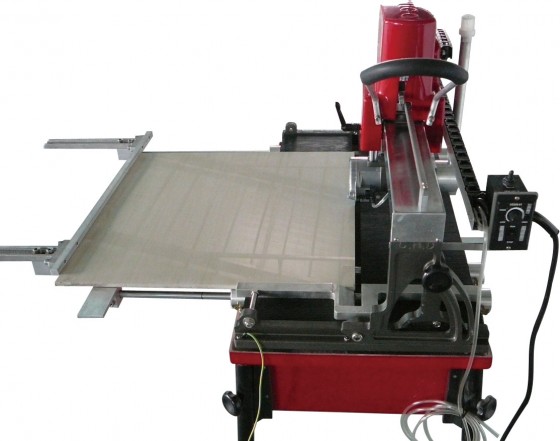

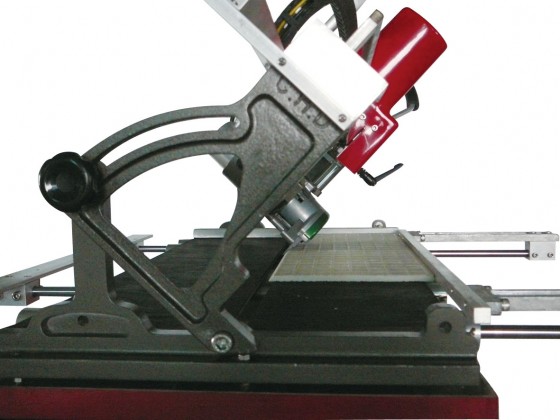

CFM1100 Tile Cutting Machine	100cm X 100cmX 2.5cm	4"	110V/220V	11000	57

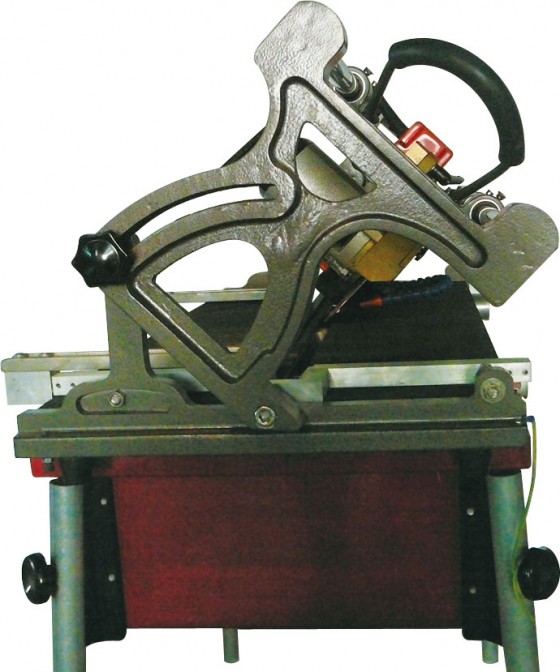

CFL1100 Tile Cutting Machine	120cm X 120cmX 2.5cm	4"	110V/220V	11000	64

Type	Description	Feature	Capability

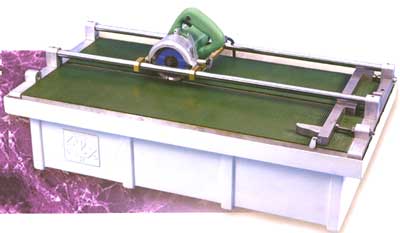

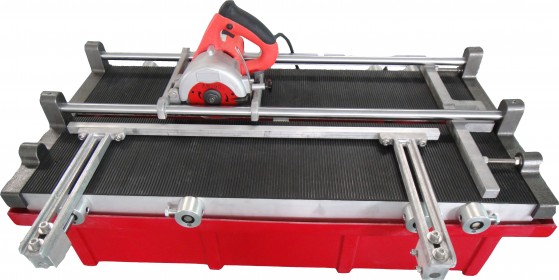

	CF60A10 Stone & Tile Mini-Cutter more	We also have the machine for the thickness of 3mm, please ask if need. ．EASY to PORTABLE/MOVABLE ．3-PIECES-DESIGN:You can cut with assembly of 90 degree angle cutting machine or 45 degree angle cutting machine. It's professional for 45 degree and 90 degree cutting design ．User friendly design ．Easy operation ．Equip ruler in setting accurate width. Extremely Portable, dissociated/disassemble parts for convenient maintenance ．Voltage:110/220V ．RPM:11000 ．Maximum Diamond Blades Diameter:4" ．Convenient maintain ．Action rule fix length; width	1)Weight:28KG 2)Cutting Size (LengthThickness):602cm

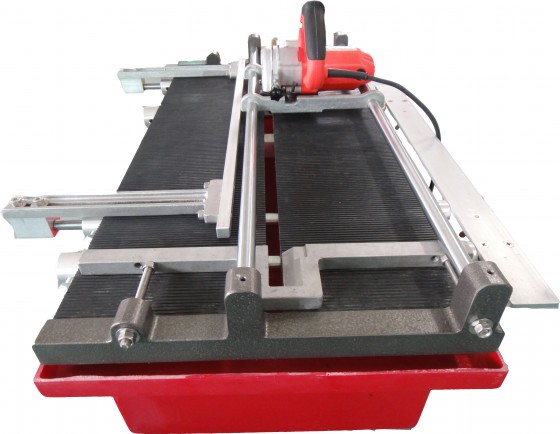

	CF100A10 Stone Mini-Cutter more		1)Weight:35KG 2)Cutting Size (LengthThickness):1002cm

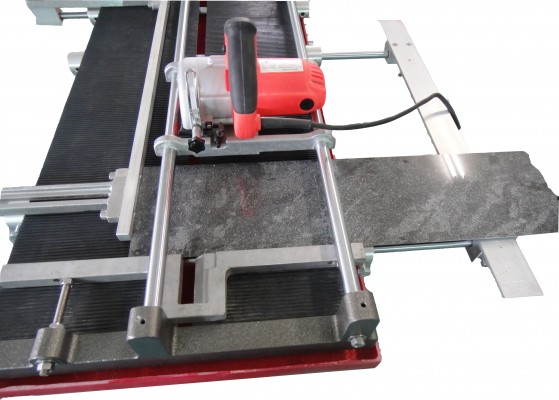

	CF120A10 Stone Mini-Cutter 　 more		1)Weight:42KG 2)Cutting Size (LengthThickness):1202cm

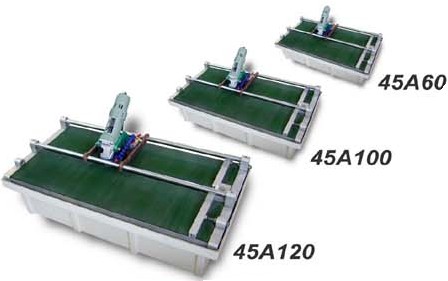

	CF450A60 Cutter more		1)Weight:28KG 2)Cutting Size (LengthThickness):602cm
	CF450A100 Cutter more		1)Weight:35KG 2)Cutting Size (LengthThickness):1002cm

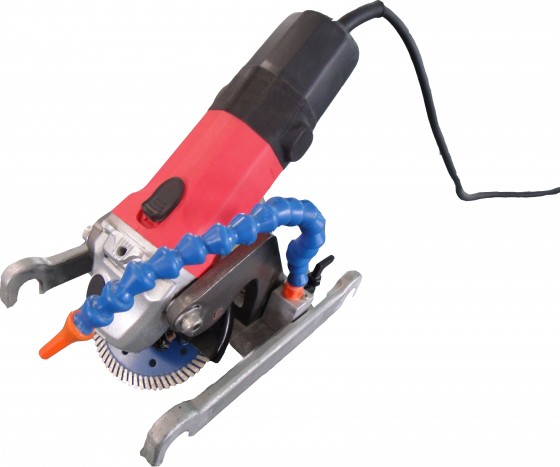

	CF450A120 Cutter more		1)Weight:42KG 2)Cutting Size (LengthThickness):1202cm

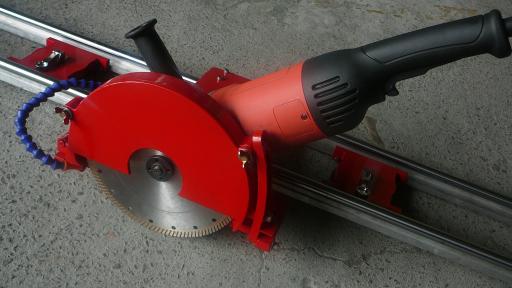

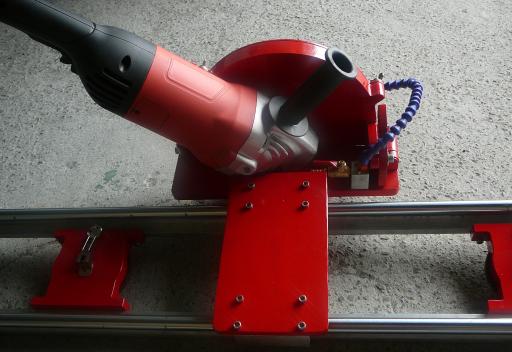

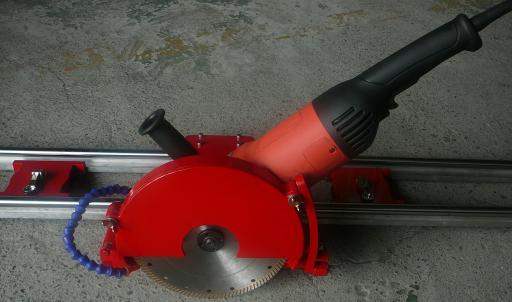

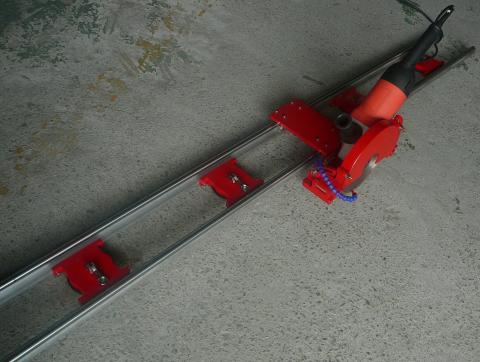

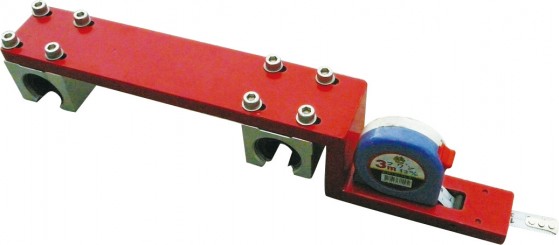

CF-H30 Suction-Rail Style TILE and STONE CUTTING SHEARING MACHINE NEW


Feature	1)After the installation of a large stone plate or cutting stone, this machine can cut the stone unlimited 2)The Suckers is fixed for cutting, this machine is accurate and extended the cutting length indefinitely. No matter how many length you want to cut 3)This machine is suitable for cutting the Stone materials of Sink, Kitchen Counter and Large Stone Plate in the workshop or installation location using

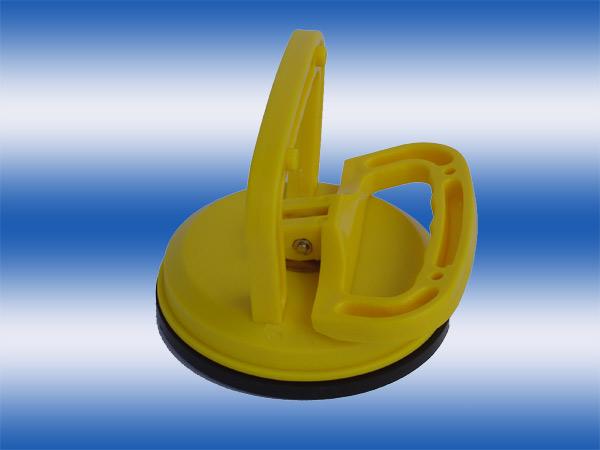

Capability	1)Power: 3HP 2)Including Stone Cutting Machine + 2pcs Guide Tubes (3m length) + Stone Sucker 3)Blade: 7"-10" 4)Rotation Speed: 6500RPM 5)Cutting Size (LengthThickness):300cm3cm 6)Fixed Method: by Stone Sucker 7)Weight:44KG

Photo/Model Name	Diamond Blades	*Cutting Size (LengthThickness)**	Voltage	RPM	Weight
	4"	60cm*2cm	110/220V	11000	28kg
		100cm*2cm			35kg
		120cm*2cm			42kg

Type	Description	Size of Polishing Pad	RPM	Weight

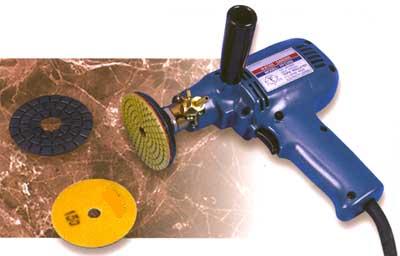

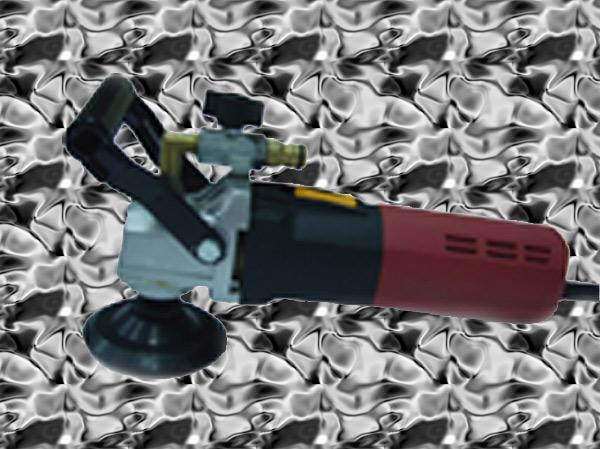

	CFPF32060 Electric Water Sander Use single phase 110V or 220V and didn't air compressor Light weight Operate is easy and quickly complete work Max speed is 4500rpm Safe design with a insulated body to avoid electrical more	3" 　 4"	4500	2kgs

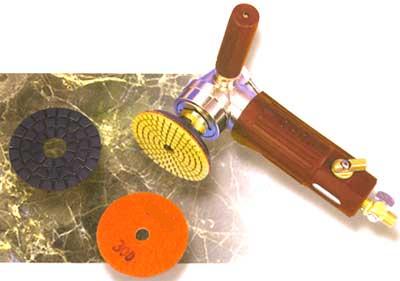

	CFS-90 Pneumatic Water Sander Use chromium-plating axis with exceptional long-watering Adopt water-resistant bearing with exceptional water resistance Apply rigid-alloy gear with minor noise and long usage period more	3" 　 4"	4500	2kgs
	CFPF32100A Electric Water Sander Use single 110V or 220V electricity, don’t need to use air compressor Light weight Operate is very easy and quickly finish work Safe design with a insulated body to avoid electrical leakage more	4"	0~4500 (ADJUSTABLE)	4kgs

Type	Description	Core Bits/Drill Diameter	Drilling Depth	RPM	Weight
	CFW380 Center Injection High-Speed Single Sucker Drilling Machine Specifically designed for plastic bolts of 6/8/10/12mm The best choice to install implements such as bathroom &window works. more NEW	6-12mm	30mm	15000	4.2kgs

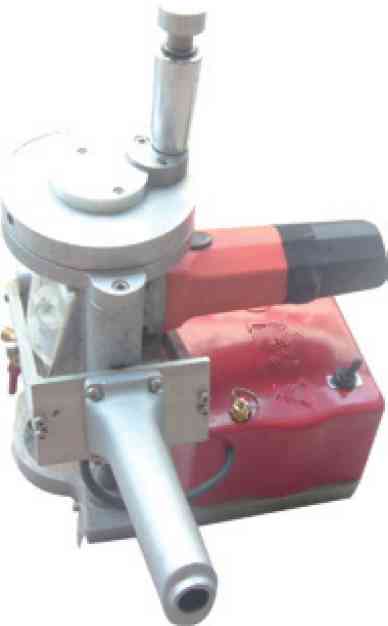

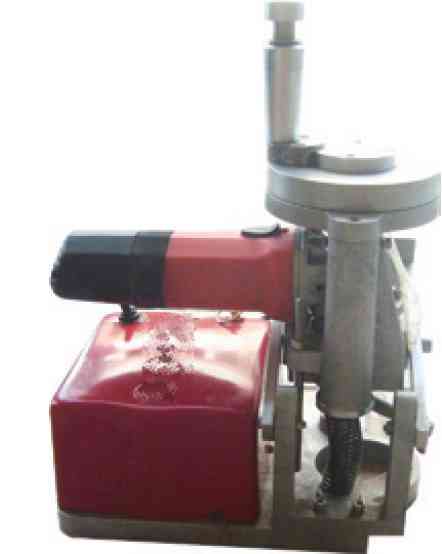

	CF-CO20 Vacuum sucker back bolt center injection reaming machine Dry type installation of external wall. Designed for back bolts. Fit imported specification of patented back bolted drill bit 8/10/12/14mm back bolted drill bit. more NEW	8-12mm	16mm	12000	14.2kgs

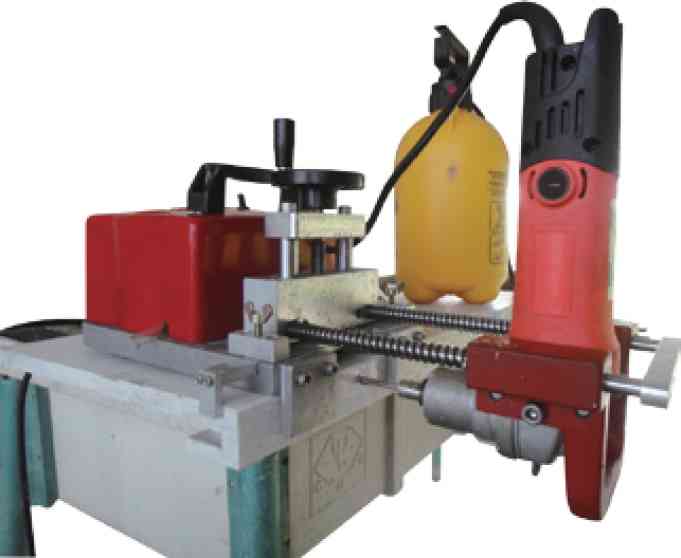

	CF-CO30 Vacuum Sucker Side-Drilling Machine The best machine for dry type installation on exterior wall. CO-3 can position accurately with fixed ruler High mobility with portable water bucket. more NEW	8-12mm	--	12000	11kgs

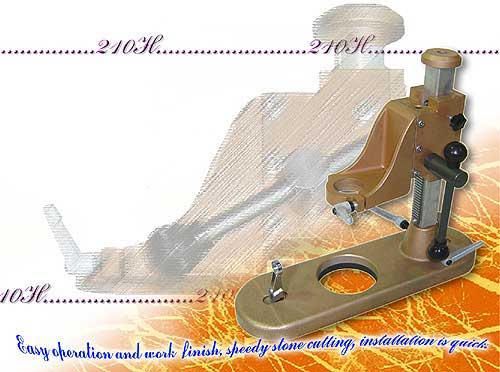

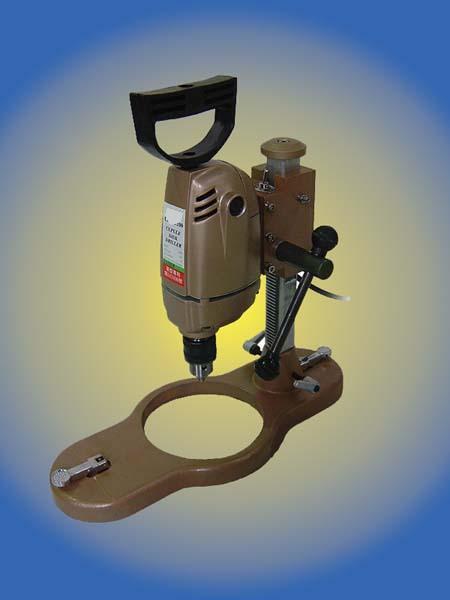

Economic Model	CF2100H Dual-Sucker Stone Drill Of Frame	6mm~90mm	90mm	750	10kgs

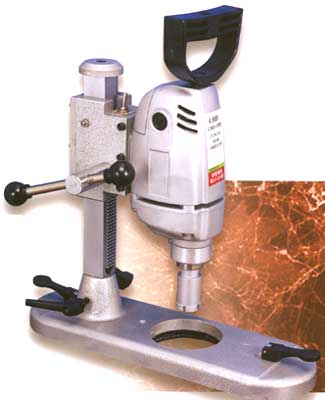

Professional Model	CF32000 Dual-sucker Stone Drill Revolving axis is capable of drilling at 360-degree at various locations Witch sucker fixture on stone, drilling is fast without damaging the stone Drilling is finished with a little water supply. make a faucet hole according to the customer 's measurements more	6mm~90mm	90mm		10kgs
Super Heavy Model	CF33000 Sucker Stone Drill	6mm~160mm	160mm		11kgs

CF-H30 Suction-Rail Style TILE and STONE CUTTING SHEARING MACHINE NEW
