3300X Automatic Hydraulic (Oil-Pressure) Pipe Bender (Specific Bending Machine) Specific Bending Machine for BOW TUBE
3300X Automatic Oil-Pressure Pipe Bender (Specific Bending Machine for BOW TUBE)
This model Bending Machines can bend the following pipe and the bending is done in ONE PROCESS (save time and money).
|
Type |
Total Length |
Total |
Total |
Total Weight |
Hydraulic CYLINDER Working Pressure Output |
Hydraulic CYLINDER Stroke |
Hp |
|
W20L |
2300m/m |
1000m/m |
1200m/m |
2000kg |
220 kgs |
500 m/m |
20Hp |

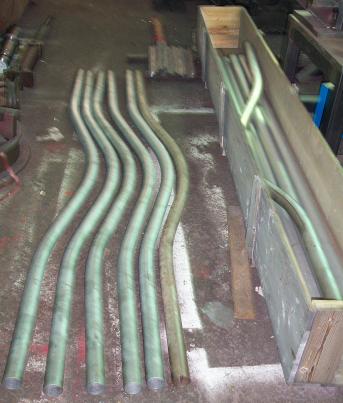

For bending of air heater tubes
Tube Size:70mm diameter*3.0mm thickness
Bending Radius:1200mm
Tube Material: Incoloy 800H (Made in Sweden)
Special Design is Welcome!
330X Automatic Hydraulic (Oil-Pressure) Pipe Bender (Specific Bending Machine) Specific Bending Machine for BOW TUBE
