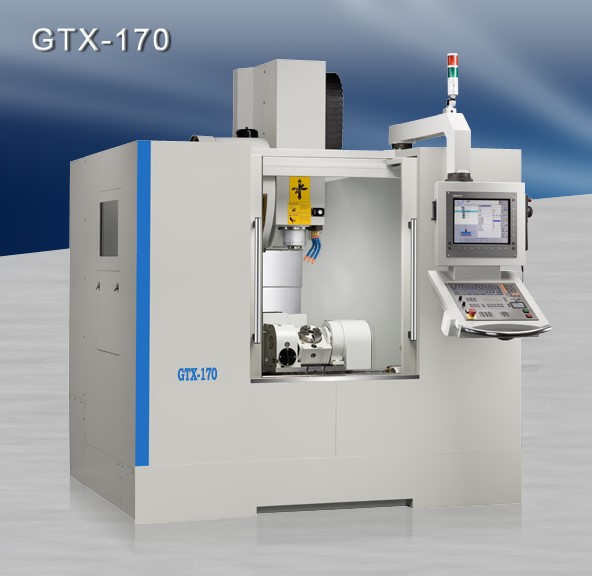

| Standard Accessories |
| BT/CAT/DIN-30/40 |
Standard Spindle 10000rpm (Direct Driven) |
| High Speed Servo System |
Chip Flushing System + Water Gun |
| Electrical Cabinet with Heat Exchanger |
Spindle Coolant Nozzle System |
| RS232 Interface |
Spindle Air Blast |
| Fluorescent Work Light |
Lubrication System (proportional pressured) |
| Alarm Lamp |
Auto Interrupt & Power Off System |
| Tool Box & Tools |
Portable Hand Wheel (MPG) |
| Leveling Blocks & Bolts |
Operation Manual, Maintenance Manual |
| Fully Enclosed Splash Guard |
CNC Manual |
| Rigid Tapping |
Test Report In CD Format |
| 5-Axis Specification |
| Work Table Diameter (mm) |
Φ170 |
| Center Bore Diameter (mm) |
Φ40H7 |
| Height Of Table (mm) |
260 |
| Height Of Table (Vertical)(mm) |
190 |
| Width Of T-Slot (mm) |
12H7 |
| Width Of Guide Block (mm) |
18 |
| Servo Motor Type (Fanuc) |
α4i Rotary |
| α4i Tilt |
| Tramsmission Ratio |
1:90 For Rotary & Tilt |
| Indexing Resolution (deg.) |
0.001 |
| Tilting Angle Range |
* +30 ~ -120 |
| Maximum Rotation Speed (min-1) |
33.3 Rotary |
| 22.2 Tilt |
| Maximum Load |
In Horizontal 50Kg |
| In Tilt (0 - 90 degree) 35Kg |
| Permissible Cutting Force (kg-m) |
17 |
| Drive Pressure / Method (kg/cm2) |
5 / Pneumatic |
| Brake Torque (kg-m) |
18 Rotary |
| 26 Tilt |
| Indexing Accuracy (sec.) |
20" Rotary |
| 60" Tilt |
| Repeatability (sec.) |
4" Rotary |
| 8" Tilt |
| Please contact Finetech for more detail specification |
| Optional Accessories |
| Spindle Direct Drive (rpm) |
12000, 15000 |
| Spindle Built-in |
24000, 30000 |
| Spindle Oil Coolant System |
Available |
| Chip Conveyor System |
Belt Type / Scrapper Type |
| Chip Conveyor System |
Internal Type |
| Coolant Through Spindle (CTS) |
15 - 20 bar |
| Linear Scale |
Heidenhain LS |
| Oil Skimmer / Separator |
Available |
| Tool Probe |
TS-27R , NC4 |
| Transformer |
20/25KVA |
| Workpiece Measurement Device |
MP12 , OMP40 60 |
| Technical Specifications |
| Travel (mm) |
| X-axis |
710mm |
| Y-axis |
450mm |
| Z-axis |
380mm |
| Spindle Nose To Work Table Surface |
130 - 480mm |
| Maximum Traverse Speed |
| X-axis |
36m/min |
| Y-axis |
36m/min |
| Z-axis |
36m/min |
| Position Accuracy |
| X, Y & Z |
*+/-.005mm |
| Repeatability Accuracy |
| X, Y & Z |
*+/-.002mm |
| Guide Way (Roller Guide Way) |
| X-axis |
2 Roller Guide Way (SP) |
| Y-axis |
2 Roller Guide Way (SP) |
| Z-axis |
2 Roller Guide Way (SP) |
| Lubricating System |
Oil Cooled |
| Lubricator |
2 x Lubricator WAY LUBE 68 |
| Ball Screw Diameter |
Pitch 12mm |
| X-axis |
32mm |
| Y-axis |
32mm |
| Z-axis |
32mm |
| Tool (40 taper) ARM Type |
| Maximum Length |
300 mm |
| Maximum Diameter |
80-150 mm |
| Maximum Each Tool Weight |
7 Kgf |
| Maximum Maximum Tool Weight |
170 Kgf |
| Tool Change Time (T - T) |
1.2 second (60Hz) |
| Tool Change Time (C - C) |
4 second (60Hz) |
| Spindle Taper |
30 & 40 |
| Spindle Motor |
11 KW |
| Other |
| Air Supply Required |
7Kg / square cm |
| Power Supply Required |
25/30 KVA |
| Machine Weight |
4300kgs |
| Machine Dimension For Shipping |
246*229*256cm (40'HQ) |
