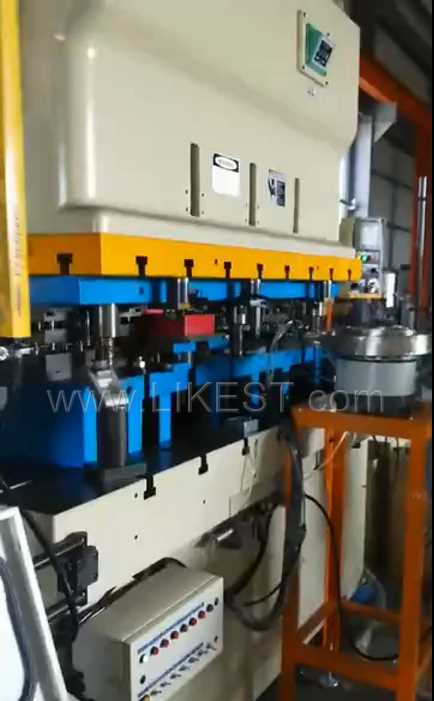

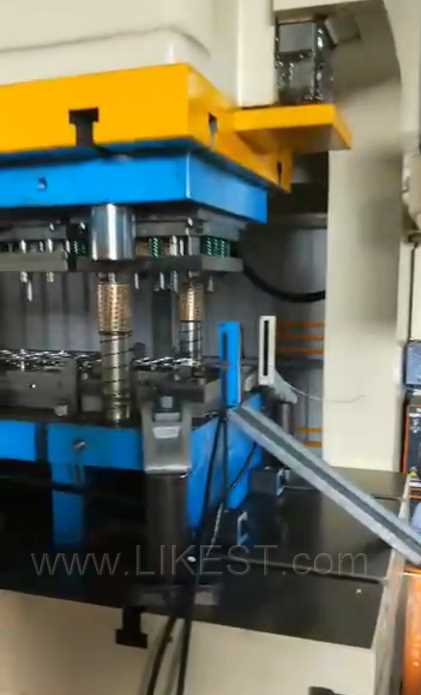

Electric Box Modular Box Junction Box Making Machine
Including Insert brass part, tapping and brass fastener
feeding system controller.
Feature:
The Cable
Tray Roll Forming Machine Produced
by us, is used for producing cable trays that are used in different kind of
factories and buildings. We offering you to Cable Tray Machine that comprise
of efficient Punching Press, Hydraulic Press, Electric Control panel and
many other Equipment, which make it an ideal option for many. The Cable
Tray Roll Forming Machine can manufacture both superiority and quantity
cable trays in less time.
Any Hole can be punched in 2D (X-Y axis) position
AUTOMATICALLY NEW Function (OPTION)
Cable
tray punching
simple technique process, make cable ladder with high quanlity, high speed,

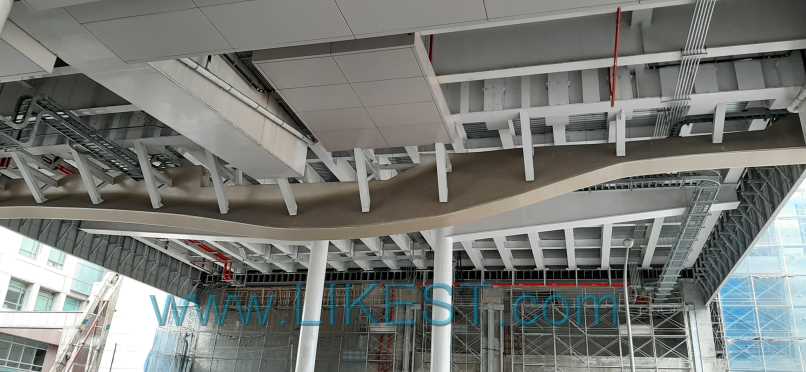

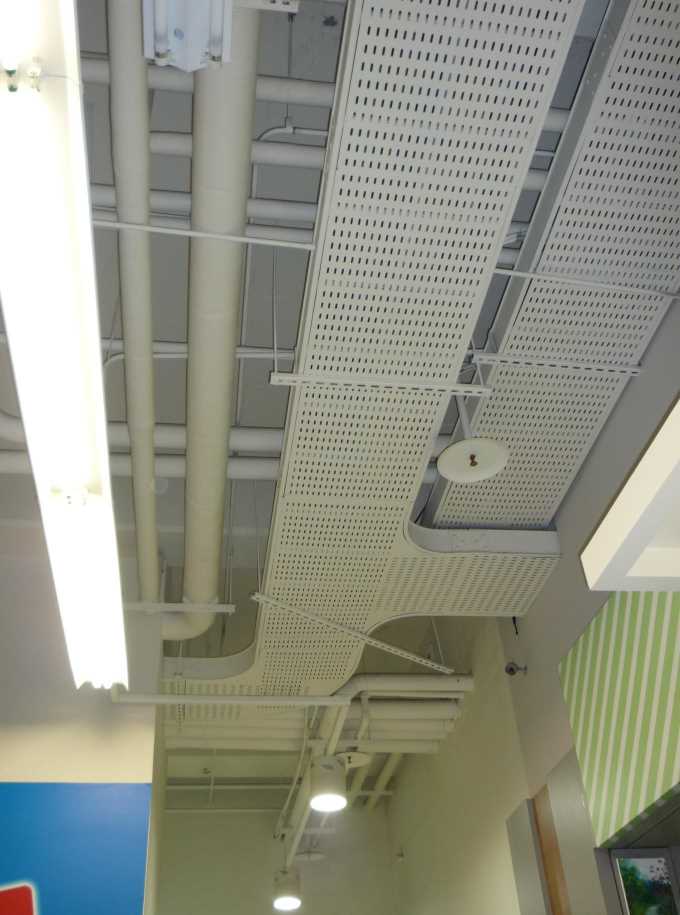

cable tray, cable ladder for fixing cables.
Specifications:

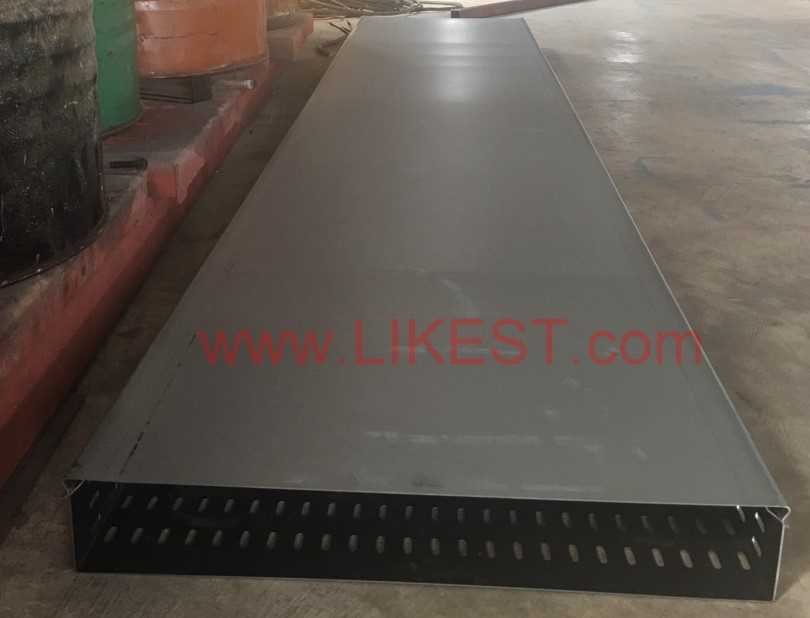

The line could be
run for cable tray and cover cable tray production (
twelve sizes) automatic continuously punching and
cutting any length.
This production line
may produce the cable tray, the different sizes
through the replace punching moulds to complete.

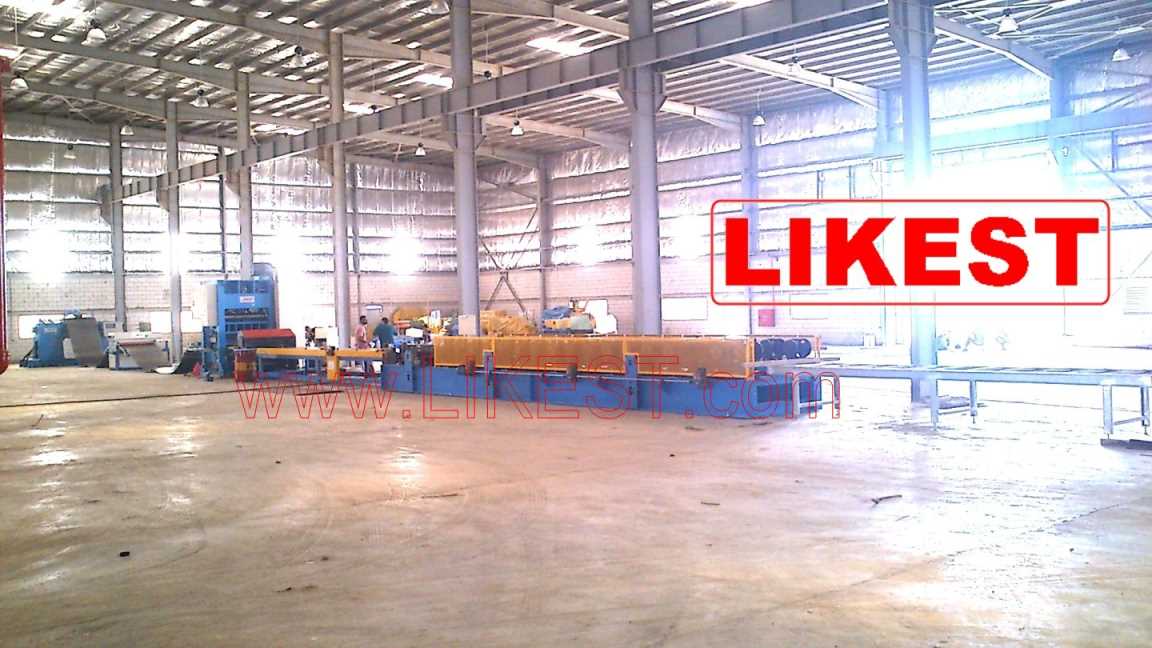

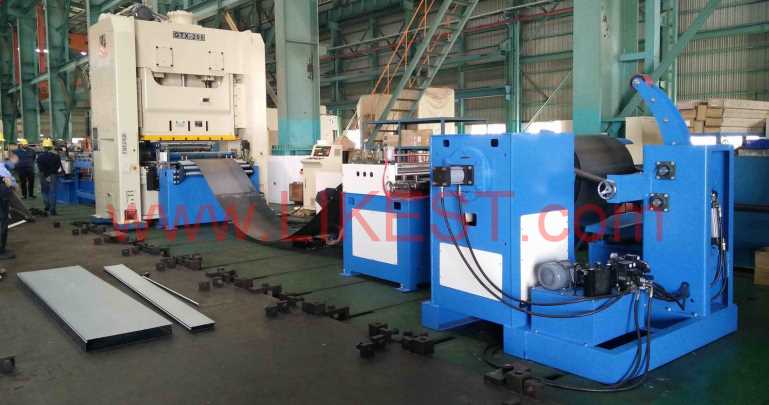

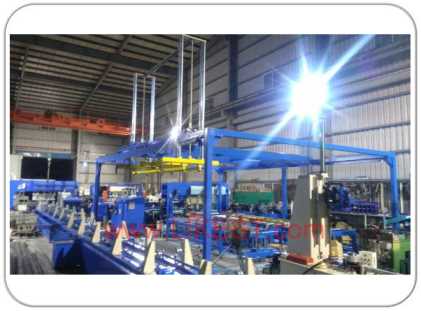

The production line
includes uncoiler, leveler device feeding guide,
main machine, roll forming cutter , hydraulic system
and electric control system.

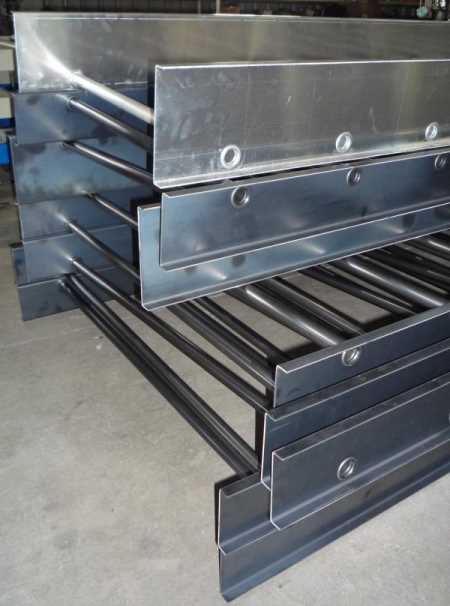

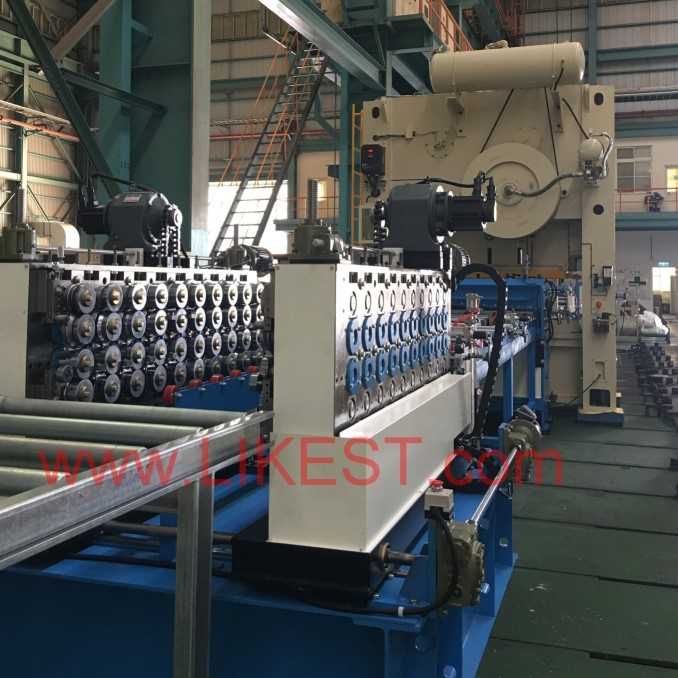

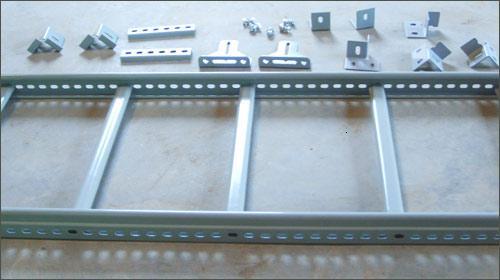

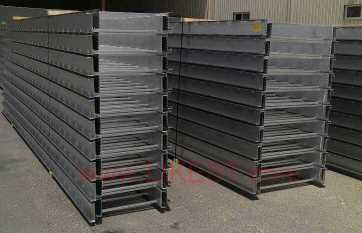

This cable ladder
roll forming machine includes decoiler, leveling
device, feeding device, feeding guide, punching
device, main roll forming machine, feeding
guide, hydraulic cutting, hydraulic system,
hydraulic station and plc control system. the line
speed is about 10 m/min.
Process :coil
loading ---- decoiling ---- feeding ---- leveling
---- punching ---- feeding ----cutting ---- roll
forming ---- stacking---- run-out

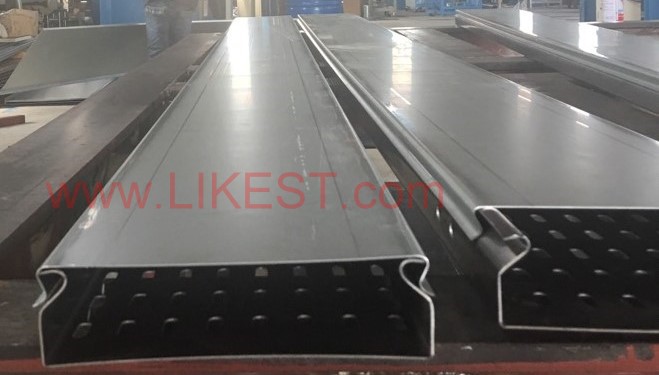

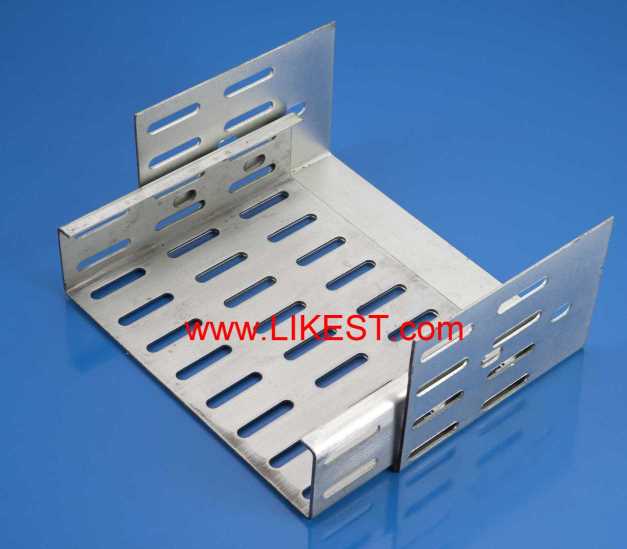

Our
Cable
Trays are manufactured fully automatic punching
& cutting machines according to your required
specifications. We can choice high quality hot
dip or electrolytic galvanize sheet steel according
to your requirements. For more detail of our
cable carrying systems , please do not hesitate to
contact with us directly.
