| SPECIFICATIONS | |||||||||||
| Model | Code | Nominal Capacity (kg) | Traversing Speed(m/min) | Traversing Speed (m/min) | Net Weight (kg) | ||||||
| Out Put(kw) | Duty Rating | 50HZ | 60HZ | ||||||||
| Single Speed | Dual Speed | Single Speed | Dual Speed | (ED%/S/H) | Single Speed | Dual Speed | Single Speed | Dual Speed | |||
| HCV01 | HCV01A1 HCV01B1 HCV01C1 | HCV01A3 HCV01B3 HCV01C3 | 1000 | 0.13 | 0.13/0.04 | 30/250 | 15.0 17.3 20.8 | 15.0/5.0 17.3/5.8 20.8/6.9 | 18.0 20.8 25.0 | 18.0/6.0 20.8/6.9 25.0/8.3 | 42 |
| HCV02 | HCV02A1 HCV02B1 HCV02C1 | HCV02A3 HCV02B3 HCV02C3 | 2000 | 0.13 | 0.13/0.04 | 15.3 17.7 21.2 | 15.3/5.1 17.7/5.9 21.2/7.1 | 18.4 21.2 25.5 | 18.4/6.1 21.2/7.1 25.5/8.5 | 50 | |
| HCV03 | HCW03A1 HCW03B1 HCW03C1 | HCW03A3 HCW03B3 HCW03C3 | 3000 | 0.25 | 0.25/0.08 | 15.2 17.5 21.0 | 15.2/5.3 17.5/6.3 21.0/7.3 | 18.2 21.0 25.2 | 18.2/6.1 21.0/7.0 25.2/8.4 | 76 | |
| HCV05 | HCV05A1 HCV05B1 HCV05C1 | HCV05A3 HCV05B3 HCV05C3 | 5000 | 0.25 | 0.25/0.08 | 15.9 18.4 22.0 | 15.9/4.7 18.4/6.7 22.0/7.6 | 19.1 22.0 26.4 | 19.1/6.4 22.0/7.3 26.4/8.8 | 125 | |
| HCV07 | HCV07A1 HCV07B1 HCV07C1 | HCV07A3 HCV07B3 HCV07C3 | 7500 | 0.50 | 0.50/0.17 | 14.0 19.3 22.9 | 14.0/4.7 19.3/6.4 22.9/7.6 | 16.9 23.2 27.4 | 16.9/5.6 23.2/7.7 27.4/9.1 | 180 | |
| HCV10 | HCV10A1 HCV10B1 HCV10C1 | HCV10A3 HCV10B3 HCV10C3 | 10000 | 0.50 | 0.50/0.17 | 14.1 19.4 22.9 | 14.1/4.7 19.4/6.5 22.9/7.6 | 16.9 23.3 27.5 | 16.9/5.6 23.3/7.8 27.5/9.2 | 240 | |
¡@

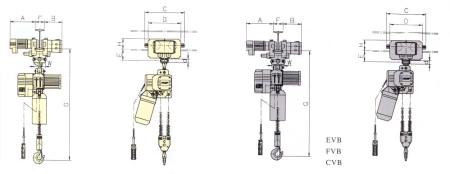

| Model | Flande Width Sdjustability (mm) | W | A | B | C | D | E | H | d | G | |||
| Single Speed | Dual Speed | VA Type | VB Type | ||||||||||
| EVA301 FVA301 CVA301 | EVB301 EVB301 CVB301 | 75-175
200-250 |
116
241 |
319 | 334 | 228 | 390 | 300 | 90 | 93 | 30 | 664 | 615 |
| CVA451 CVA302 CVA601 | CVB451 CVB302 CVB601 | 100-175
200-250 |
151
251 |
326 | 335 | 235 | 445 | 355 | 108 | 109 | 38.1 | 841 792 841 | 788 739 788 |
| CVA751 CVA303 CVA452 | CVB751 CVB303 CVB452 | 100-200
225-275 |
154
279 |
345 | 360 | 238 | 510 | 420 | 138 | 135 | 45 | 967 904 1004 | 896 833 933 |
| CVA752 | CVB752 | 125-200 225-250 | 187 287 | 353 | 368 | 246 | 586 | 496 | 148 | 173 | 50.8 | 1074 | 1008 |
| CVA753 | CVB753 | 150-200 225-250 | 216 291 | 361 | 376 | 254 | 636 | 546 | 180 | 205 | 45 | 1058 | -- |
| CVA754 | CVB754 |
150-200 225-250 |
216 291 | 363 | 378 | 256 | 724 | 634 | 203 | 243 | 45 | 1185 | -- |
¡@
|
|
