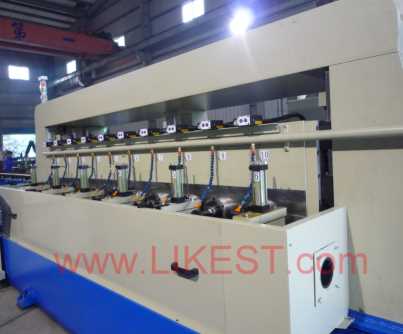

Automatic Pipe Slotting and Perforating Machine CFPSM-40-7-10S

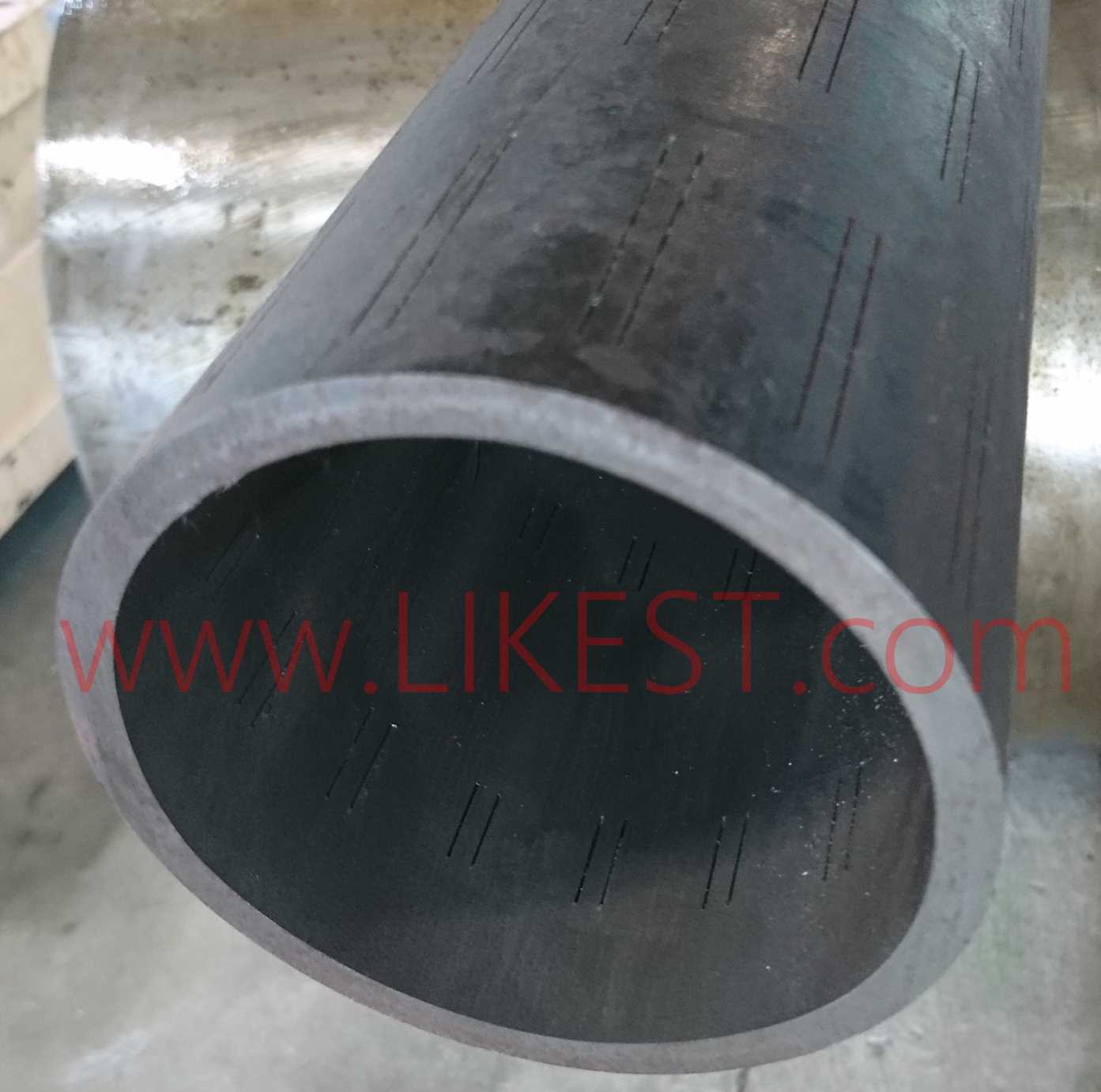

Finished products : Slotting Width 0.3~0.5 mm

We offer customized screen manufacture solutions of applications in the Oil&Gas, Water, Geothermal, PLANOS TUBERIA RANURADA and Petrochemical industries.

Features:

-Slotted Liner CNC Saw Cutting Machine (CNC Pipe Slotting Machine), tubing & casing slotting, perforation and deburring machine.

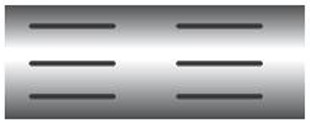

line slot pattern

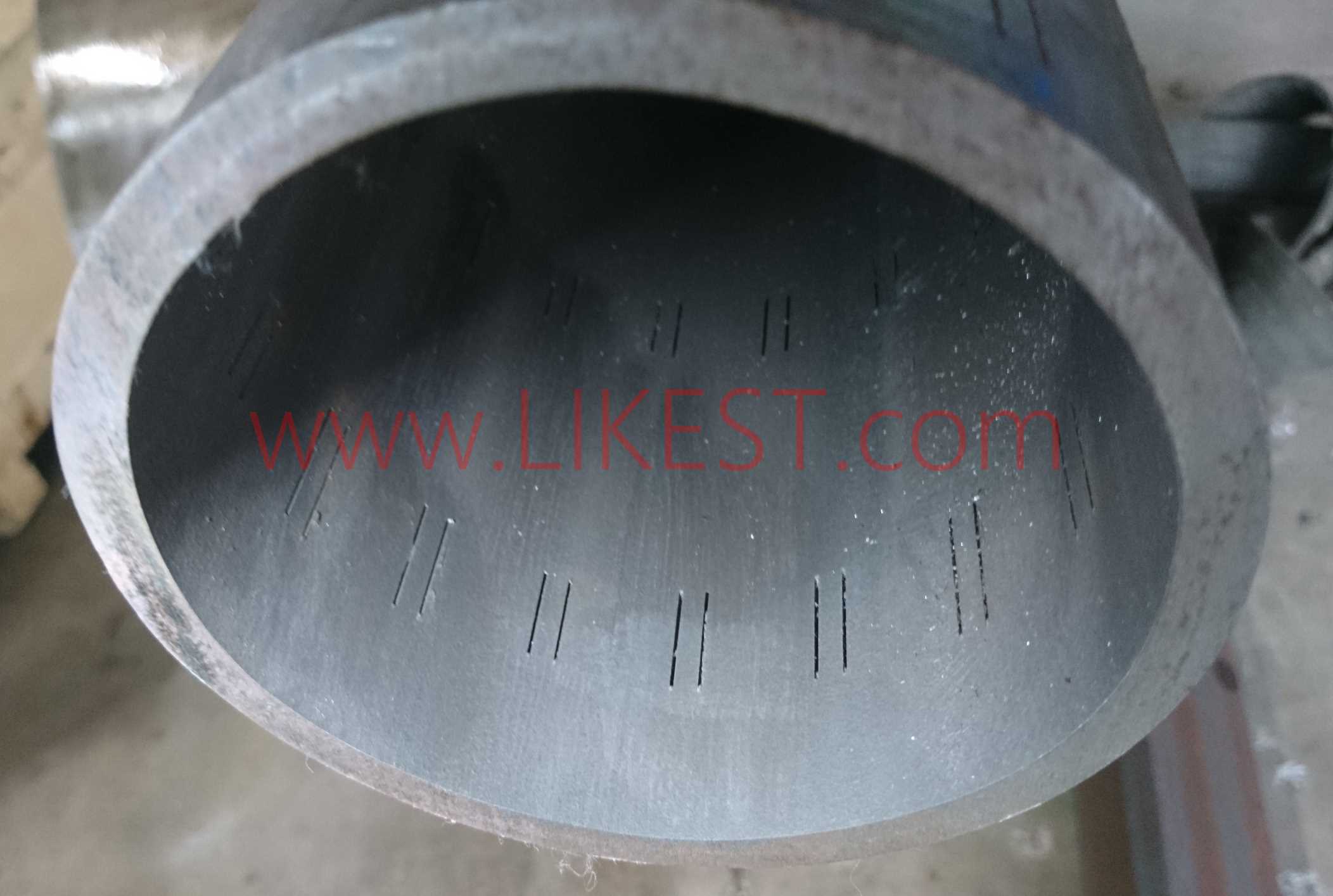

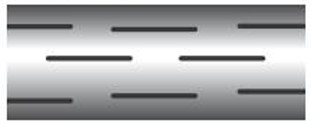

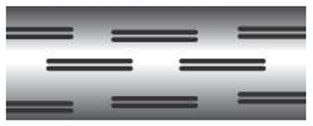

staggered  slot pattern

multiple staggered  slot pattern

-lot requirement on tubing & casing.

-Tube Slotting Machine with Deburring, Perforation, Drilling.

-Oil Tubular Slotting Machine

Our multi spindle slotting equipment (NC Pipe / tube Slotting Machine, mill slot perforating Machine (10 Spindles), water well slotting machine) manufacture the slotted liner. the multi spindle milling machine produces slots in one pass over the entire length of the joint.

Customized design: The slot size and slotting pattern are customized to create the required open area. Multiple staggered non overlapping patterns optimize tensile and torsion strength, also increases the open area by 2 times compared to single cut pattern.


Quality: All slotted joints are deburred internally, cleaned and drift tested according to standards. Every slot is visually inspected and cleaned of burr material. All threads and couplings are thoroughly cleaned and lubricated.


We are successfully engaged in the production and distribution of highly acclaimed Pipe mill slot perforating / Pipe Slotting Machine in the industry. Our Pipe Slotting Machine is backed with all the modern features that make it very effectual in the area of application. It is extensively used for cutting and slotting pipes in the desired shapes as required by the customers.

We offer the High Production Rate Pipe Perforating Machine With CNC Indexing Systems for a wide range of well screens, Slotted liners, swellable packers, inflow control devices, reactor internals and industrial filters.

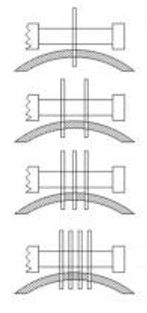

1 slotting tool

2 slotting tools

4 slotting tools

Specifications:

1. Slotting Spindle :40 Type * 10 sets

2. Transmission Electrical Motor (1500W) with CONTROLLER:10 sets

3. Shaft coupling joint: 10 sets

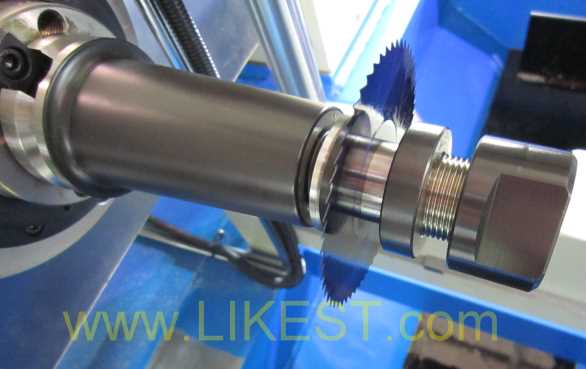

4. Circular Sawing Blade Fixing Base: 10 sets

5. Hydraulic System : 5HP Special Design Hydraulic Pump: 1 set

6. V-shape Clamping Mold : 5 sets

7. Transmission Servo Motor (1500W): 1 set

8. Rotation Servo Motor (1500W): 1 set

9. Automatic PLC Electrical Control Box: with TFT HMI (Human Machine Interface) Touch Screen Colorful LCD Display, Touch Controllable Display Setting, Digital Control Systems, Servo Motor Position Scaling Precision, and Modular Memory Function.: * 1 set

10. Pipe Loading Supporting Frame : 1 set

11. Pipe Rotation Device: 1 set

12. Manual Type Chuck (Lathe Type): To clamp the pipe

13. Pipe Feeding Machine Body (with Linear Guide Rail +Rack): 1 set

14. Pipe Un-Loading Supporting Frame: 12 meters length

15. Coolant (Cooling Water) Pump: ½HP

16. Sawing Cutting Blade Base Up/Down Servo Motor: 1500W*2sets

17. Ball screw*2sets

18. Threaded Rods

19. Sawing Blades supplied by the BUYER for 0.5mm above slot thickness

20. Diagram of Hydraulic System

21. Component List

22. Electrical circuit diagram

23. Operation Manual

Applications :

OCTG pipe slotting machine, Oilfield Services Industry, Slotting and Perforating Service, Slotted Liner, Perforated Pipe, Metal Mesh Premium Screen, water well slotting,

tube slotting

video:

Optional Equipment:

Pipe/Tube Handling Equipment  CFPH-40-7 MORE

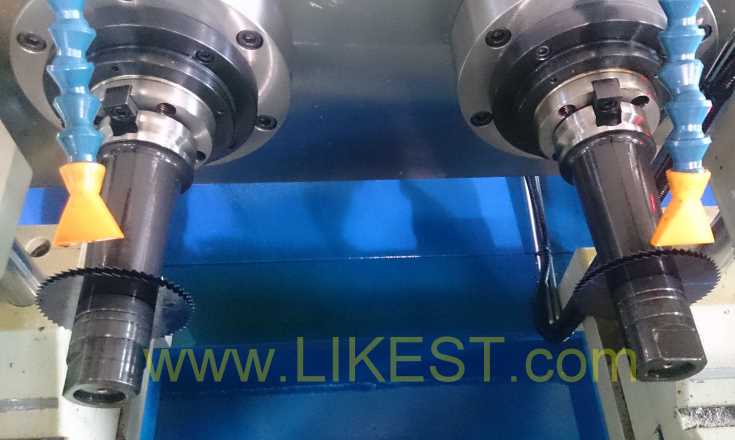

Pipe/Tube Deburring Machine
