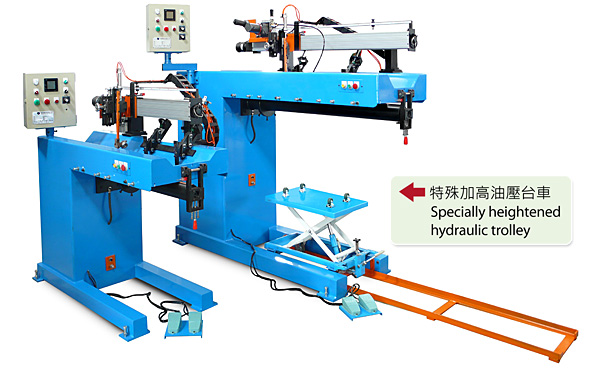

                               Longitudinal Welding Machine                             welding action

                                                                                                                                                                 Arc Stud Welding Machine



CD STUD  ARC STUD WELDERS 樁電弧熔接

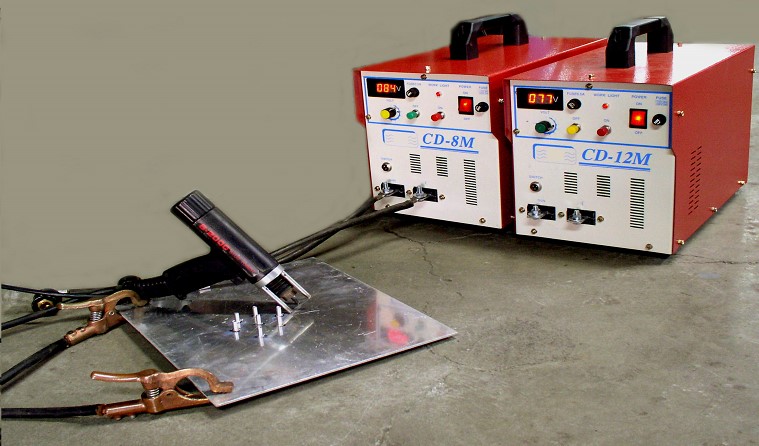

CD-8M CD-12M ARC-1500

Model

CD-8M CD-12M
Suitable Material

Mild steel / Stainless steel: Diameter 3~8 mm

Aluminum / Copper / Titanium: Diameter 3~6 mm

Mild steel Stainless steel: Diameter 3~10 mm

Aluminum / Copper / Titanium: Diameter 3~8 mm

Titanium:Diameter 3~6 mm

Suitable Stud Diameter 3~8 mm 3~12 mm
Suitable the length 5-125 mm
Power 1Phase. 110VAC +/- 10% 1Phase. 220V AC +/- 10%
10A 15A
Outward appearance size (cm) 45X26X39
Net weight( Kg) 17 19

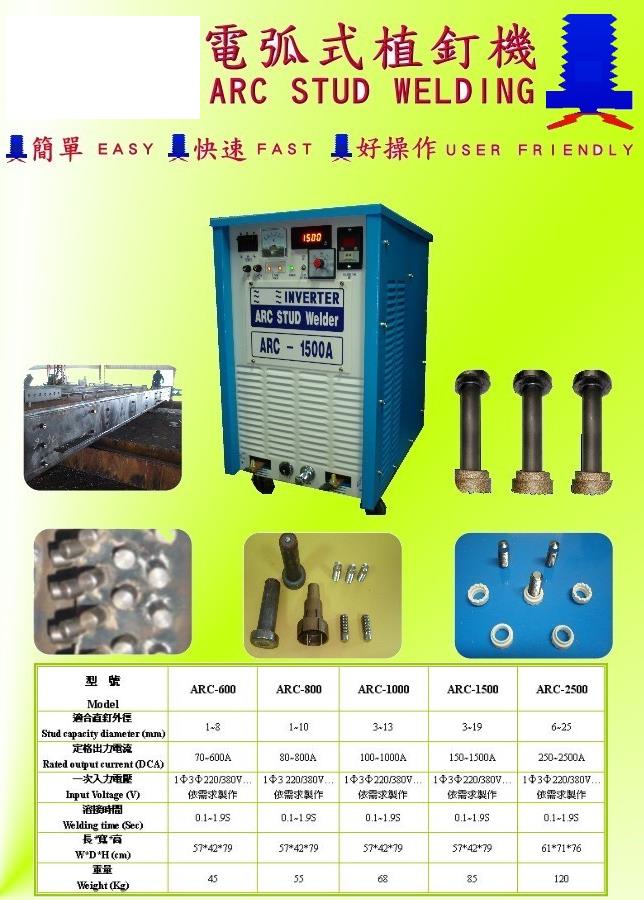

Model ARC-100 ARC-1500 ARC-2500
Suitably in nailing outer diameter 3-13 mm 6-19 mm 8-25 mm

Suitable nailing material

Iron, Stainless steel, aluminum

(ACV) Power(ACV)

3Ø. 220/380VAC +/- 10%
Reformat strive electric current (DCA) 1000 1500 2500
Strive the electric current adjustment scope (DCA) 100-1000 300-1500 500-2500
Outward appearance size (cm) 95x62x85 95x62x85 95x108x87
Net weight (Kg) 210 300 450
Product characteristic:
  • Can welding on the metal thin steel plate attractive , no trace will left behind the back.
  • 3/1000~6/1000 second instantaneous completely welding, promotion working efficiency.
  • Stud material quality, style is complete, suitable for the many kinds of parent metals.
  • The operation maintenance is easy , freely migration of small volume.

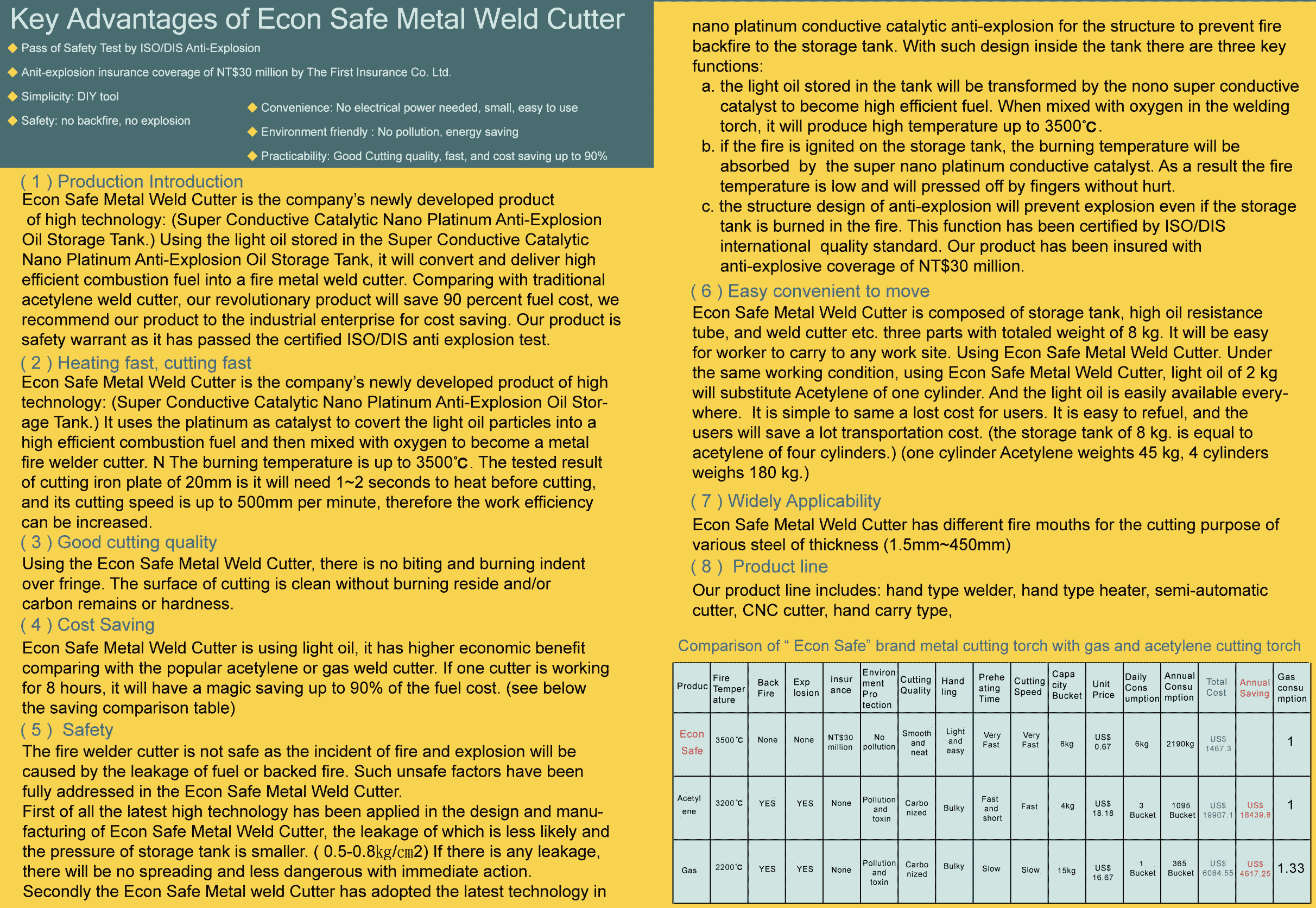

Econ Safe Metal Welding Cutting Machine  NEW

MIG (Metal Inert Gas) 氣體金屬電極熔接-CO2

CO2-250FX CO2-350FX
CO2-400FX CO2-500FE

CO2-400 FX

Fixed input

3Ø 50/60HZ 220V*380V

Fixed input(KVA)

17KVA 16KW

Max non- load voltage

12-42V

Reformat strive electric current

400A

Utilization ratio%

50%

Outward appearance size( cm)

73*41*91

Net WeightKg

100KG

CO2-500 FE

Fixed input

3Ø 50/60HZ 220V*380V

Fixed input(KVA)

30KVA 24KW

Max non- load voltage

65V

Reformat strive electric current

500A

Utilization ratio%

50%

Outward appearance size( cm)

71*56*81

Net WeightKg

200KG

M-210A M-300A GOLDEN M-500A
Suitable Use:
  • stable  current and less smoke remnants.
  • high penetration power and high efficiency.
  • easy to operate and power saving.
  • suitable for iron,stainless stainess steel,aluminum and copper materials.
Product characteristic:
Bicycle, sport goods, OA office desk, Qi engine accessory board gold, board gold control box, steel constructs cooperate with automatic platform weld

Model

ITEM

MIG-210A MIG-300A MIG-500A CO2-250Fx CO2-350Fx
Fixed input 1Ø50/60Hz 3Ø50/60Hz 3Ø50/60Hz 3Ø50/60Hz 3Ø50/60Hz
220x380V 220x380V 220x380V 220x380V 220x380V
Fixed input(KVA) 7.8KVA 6KW 13KVA 11KW 23KVA 21KW 7.7KVA 7.4KW 17KVA 16KW
Max non- load voltage 14-38V 14-40V 16-68V 12-34V 12-42V
Reformat strive electric current 210A 300A 500A 250A 350A
Utilization ratio 40% 40% 60% 50% 50%
Outward appearance size( cm) 85X43X57 73X40X70 94X56X82 53X36X83 73X41X91
Net WeightKg 55 100 140 75 100

IGBT-INVERTER TIG (Tungsten Inert Gas) 氣體鎢電弧熔接


TIG-210ARC TIG-350ARC TIG-201ARC
TIG-301ARC TIG-351P TIG-500P

Suitable Use:

Stainless steel, kitchenware, mold, patching, cold system, galvanized iron windows and doors, food machinery, tube project profession application.

Product characteristic:

  • The volume is small, migration freely, Portable.
  • IGBT high frequency work, non- noise, province electricity 50% and the electric current is stable
  • The spontaneous ignition arc is easy, list/three-phase current use altogether.
  • High utilization ratio , dauntless high load use, with superposition of welding standard function.

Model

ITEM

TIG-210ARC TIG-350ARC TIG-201ARC TIG-301ARC TIG-351P TIG-500P TIG-300FP TIG-303AC/DC
Fixed Input 1Ø50/60Hz 1Ø50/60Hz 1Ø50/60Hz 1Ø50/60Hz 1Ø/3Ø50/60Hz 1Ø/3Ø50/60Hz 1Ø50/60Hz 1Ø/3Ø50/60Hz
220x380V 220x380V 110/280V 110/380V 220x380V 220x380V 220x380V 220x380V
    220V 220V
Output Current AC /DC             20-300AX5-300A 10-303AX5-303A
Fixed Input(KVA) 10KVA 6KW 13KVA 10KW 5KVA 4KW 8KVA 6.8KW 11.5KVA 1.05KW 18KVA 17KW 24KVA 15.5KW 12KVA 11KW

Highest Non-Load Voltage

105V 110V 88V 55V 70V 70V 78V 70V
Initial period receiving arc electric current (A) 3-210A 5-350A 10-100A 10-150A 5-351A 5-500A
Fuse electric current( A) 3-210A 5-350A 5-201A 5-301A 5-351A 5-500A Pulse wave function Pulse wave function
0.03-1.2 0.02-2
Argon pre- class time (S) 0.1 0.1 0.1 0.1 0.1 0.1-0.3 0.1-0.3 0.1-0.3
Argon Back Flows(S) 1-6 1-6 2-6 2-6 2-20 2-20 2-20 2-20
Receiving arc control system

Yes/No/

Repeatedly

Yes/No/

Repeatedly

Yes/No/

Yes/No/

Yes/No/

Repeatedly

Yes/No/

Repeatedly

Yes/No/

Repeatedly

Yes/No/

Repeatedly

superposition welds(A) 3-210A 5-350A 10-180A 10-240A 5-300A 5-450A 20-300A 20-300A
Utilization ratio % 40% 50% 40% 40% 50% 55% 40% 70%
Outward appearance size (cm) 44X31X35 59X46X77 32X20X26 37X23X30 52X27X43 56X36X72 59X50X98 59X40X78
Outward appearance size(kg) 35 60 8 15 35 65 150 70

TIG-AC/DC


TIG-300FP TIG-303 Auto-Darkening Filter Welding Helmet

Suitable Use:

Bicycle, sheet metal control box, aluminum alloy, titanium alloy welding

Product characteristic:
  • Direct current: Not suitable to use on material such as steel, copper, titanium, steel and iron.
  • Exchange: suitable to use on material on aluminum magnesium and alloy
  • A.C. -D.C type and water cooling control fixture.

IGBT-INVERTER AIR PLASMA

P-30 P-60 P-45 P-75
Suitable Use:
Stainless steel, copper, iron and special aluminum.
Product characteristic:
  • Operation only need air and the power source.
  • material quality not to distort when cutting
  MODEL
ITEM
P-30 P-45 P-60 P-75 P-100
Fixed input 1Ø 50/60Hz 1Ø/3Ø50/60Hz 1Ø/3Ø50/60Hz 1Ø/3Ø50/60Hz 3Ø50/60Hz
220x380V 220x380V 220x380V 220x380V 220x380V
Fixed input(KVA) 7KVA 4KW 8KVA 6.5KW 20KVA 10KW 20KVA 12KW 26KVA 24KW
Reformat strive electric current 24-30A 6-45A 40-60A 6-75A 40-100A
Utilization ratio 60% 80% 60% 80% 80%
Suitablly cuts thickness 6mm 12mm 10mm 20mm 25mm
MAX cutting thickness 10mm 16mm 15mm 30mm 35mm
Outward appearance size(cm) 50x29x39 50x21x44 51x35x56 58x23x52 73x47x66
Net weightKg 22 19 35 30 100

Automobile sheet metal machine

Automobile sheet metal machine SPOT-8 WATER BOX

Model

ITEM

sheet metal machine SPOT-8

Model

ITEM

YR-7
Fixed input 1Ø50/60Hz 1Ø50/60Hz Fixed input 1Ø50/60Hz
220V 220V 220V
Fixed input(A) 28A 100A Fixed input(A) 0.6KW
Fixed input(KVA) 13KVA 11KW 24KVA 22KW Water volume out flow 12L/min
Reformat strive electric current 100-1800A 100-4000A Cooling capacity 10L
Outward appearance sizecm 38X26X50 48X36X48 Outward appearance sizecm 49X31X33
Net weight Kg 25 35 Net weight Kg 18


Other related machines and tools

Welding gyr-board

UP-RIGHT ROTARY STAND

Horizontal type

circumference machine

Metal Tube Sawing Machine

Robot




Rectifier   Controlling Case   Electroplating Bath

Model Below Work Bench High Diameter Thickness Above Work Bench High Total tall
1000A 690 630 570 480 1260
1500A 450 690 630 510 1350
2000A 840 750 690 540 1500
3000A 900 810 750 570 1600
4000A 970 870 810 600 1700
5000A 970 1000 970 660 1780
6000A 1000 1090 1000 660 1810
8000A 1160 1210 1090 660 1970
10000A 1450 1300 1220 660 2260
12000A 1450 1360 1270 660 2260
15000A 1450 1450 1360 660 2260
20000A 1450 1800 1500 660 2260

 Air Pressure Spot Welder

Suitable Use::

 Suitable For welding which Parts of Steel WireComputer CaseMotor partsOffice FurnitureKitchenersElectrical EquipmentStainless Steel BoilerAir Pipes and Home Equipments

MOTEL RATED CAPACITY POWER VOLTAGE RATED  FREQUENCY RATED  INPUT CIRUITE CURRENT Maxinnum Pressure Duty Thoat mensions Current wfight LxWxH
opeing depth
KVA V HZ KVA A KG % mm mm l/mm KG mmXmmXmm
KE-35 35 220/380 50/60 85 16000 500 10 270 500 6 308 1000x500x1660
KE-50 50 220/380 50/60 105 20000 500 10 270 500 6 320 1000x500x1660
KE-60 60 220/380 50/60 145 22000 500 9.0 270 500 6 335 1000x500x1660
KE-80 80 220/380 50/60 246 25000 500 8.2 270 500 6 385 1000x500x1660
KE-100 100 220/380 50/60 342 35000 1000 6.5 320 450 10 630 1150x570x1860
KE-150 150 220/380 50/60 445 42000 1000 5.5 320 450 10 700 1250x670x1860
KE-200 200 220/380 50/60 620 50000 1000 5.0 320 450 10 800 1250x700x1860

 Circular Saw Machine (Suitable for 220V 380V 415V 440V)
CF-275 CF-275-1A
Auto-Darkening Filter/Welding Helmet The Accessories of TIG Welding Machine

CO2 Heater Gas Regulator & Flow-Meter

The Accessories of CO2 Welding Machine

Any kinds of Welding Wire & Welding Rod

The Accessories of Air Plasma Cutting Machine

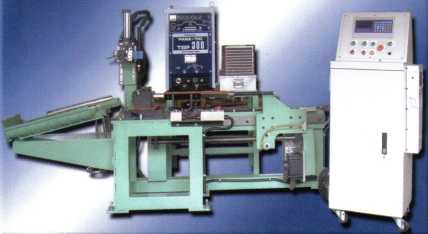

Welding Machine for Tubes



wire mesh machine, wire mesh welding machine, wire forming machines, mesh welders, flash butt welding machines, micro computer weld controls, air pressure seam welding machine and soon.
