Model |
code |
Nominal Capacity (kg) |
Lifting Speed (m/min) |
Std. Lift L (m) |
Load Chain fall Lines |
||||
|
50HZ |
60HZ |
||||||||
|
single Speed |
Dual Speed |
Single Speed |
Dual Speed |
Single Speed |
Dual Speed |
||||
| CTS041 | CTS041031 | CTS041033 | 125 | 8.0 | 8.0/2.7 | 9.6 | 9.6/3.2 | 3 | 1 |
| CTS051 | CTS051031 | CTS051033 | 125 | 16 | 16/5.3 | 19.2 | 19.2/6.4 | 1 | |
| CTS071 | CTS071031 | CTS071033 | 250 | 8.0 | 8.0/2.7 | 9.6 | 9.6/3.2 | 1 | |
| CTS081 | CTS081031 | CTS081033 | 250 | 16 | 16/5.3 | 19.2 | 19.2/6.4 | 1 | |
| CTS151 | CTS151031 | CTS151033 | 500 | 4.0 | 4/1.3 | 4.8 | 4.8/1.6 | 1 | |
| CTS161 | CTS161031 | CTS161033 | 500 | 8.0 | 8.0/2.7 | 9.6 | 9.6/3.2 | 1 | |
| CTS301 | CTS30F031 | CTS30F033 | 1000 | 4.0 | 4/1.3 | 4.8 | 4.8/1.6 | 1 | |
|
ES301 FS301 CTS301 |
ES301031 FS301031 CTS301031 |
-- -- CTS3010033 |
1000 1000 1000 |
5.3 5.3 8.0 |
-- -- 8.0/2.7 |
6.4 6.4 9.6 |
-- -- 9.6/3.2 |
1 1 1 |
|
|
ES302 FS302 CTS302 |
ES302031 FS302031 CTS302033 |
-- -- CTS302033 |
2000 2000 2000 |
2.7 2.7 4.0 |
-- -- 4.0/1.3 |
3.2 3.2 4.8 |
-- -- 4.8/1.6 |
2 2 2 |
|
|
CTS303 |
CTS30031 |
CTS303033 |
3000 |
2.7 |
2.7/0.9 |
3.2 |
3.2/1.1 |
3 |
|
|
CTS451 CTS601 CTS751 |
CTS451061 CTS601031 CTS751031 |
CTS451033 CTS601033 CTS751033 |
1500 2000 2500 |
9.5 8.0 733 |
9.6/3.2 8.0/2.7 7.3/2.4 |
11.4 9.6 8.8 |
11.4/3.8 9.6/3.2 8.8/2.9 |
1 1 |
|
|
CTS456 CTS752 |
CTS452031 CTS752031 |
CTS452033 CTS752033 |
3000 5000 |
4.8 3.7 |
4.8/1.6 5.7/1.2 |
5.7 4.4 |
5.7/1.9 4.4/1.5 |
2 2 |
|
|
CTS753 |
CTS753031 |
CTS753133 |
7500 |
2.4 |
2.4/0.8 |
2.9 |
2.9/1.0 |
3 |
|
|
CTS754 |
CTS754031 |
CTS754033 |
10000 |
3.7 |
3.7/1.2 |
4.4 |
4.4/1.5 |
4 |
|
¡@
| Model | Lifting Motor 3 phase | Net Weight (kg) | Chain
Dia./Pitch
mm/mm |
Weight in kg for Additional One Meter of Lift | Push Button
H (m) |
Length power Supply Cable (m) | |||
| Out Put (kw) | Duty Rating
(ED%/S/H) |
||||||||
| Single Speed | Dual Speed | Single Speed | Dual Speed | ||||||
|
ES301 FS301 CTS301 |
1.28 1.28 1.28 |
-- -- 1.88/0.63 |
40/250 |
46 48 52 |
-- -- 57 |
7.1/20.2 7.1/20.2 7.1/20.2 |
1.12 1.12 1.12 |
3.1 |
1.5 |
|
ES302 FS302 CTS302 |
1.28 1.28 1.28 |
-- -- 1.88/0.63 |
51 53 57 |
-- -- 62 |
7.1/20.2 7.1/20.2 7.1/20.2 |
2.24 2.24 2.24 |
|||
|
CTS303 |
1.88 |
1.88/0.63 |
62 |
67 |
7.1/20.2 |
3.36 |
|||
|
CTS451 CTS601 CTS751 |
3.75 3.75 4.50 |
3.75/1.25 3.75/1.25 4.50/1.50 |
118 118 124 |
122 122 125 |
10.0/30.0 10.0/30.0 11.2/34.0 |
2.18 2.18 2.73 |
|||
|
CTS456 CTS752 |
3.75 4.50 |
3.75/1.25 4.50/1.50 |
132 146 |
136 147 |
10.0/30.0 11.2/34.0 |
4.36 5.46 |
|||
|
CTS753 |
4.50 |
4.50/1.50 |
146 |
147 |
11.2/34.0 |
5.46 |
|||
|
CTS754 |
4.50 |
4.50/1.50 |
146 |
147 |
11.2/34.0 |
5.46 |
|||

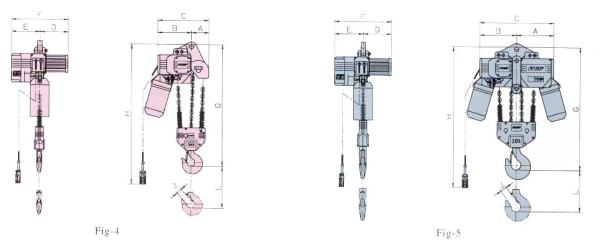

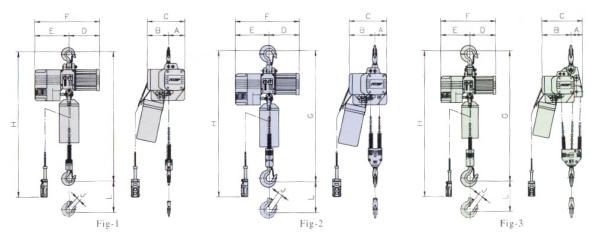

DIMENSION (mm)
| Model | Figure
No. |
A | B | C | D | E | F | G | J | ||
| Single Speed | Dual Speed | Single Speed | Dual Speed | ||||||||
|
ES301 FS301 CTS301 |
Fig.1 Fig.1 Fig.1 |
124 124 124 |
162 162 162 |
286 286 286 |
229 229 229 |
-- -- 509 |
255 255 255 |
484 484 484 |
-- -- 509 |
586 586 586 |
31 31 31 |
|
ES302 FS302 CTS302 |
Fig.2 Fig.2 Fig.2 |
91 91 91 |
159 159 159 |
286 286 286 |
229 229 229 |
-- -- 254 |
255 255 255 |
484 484 484 |
-- -- 509 |
700 700 700 |
37 37 37 |
|
CTS303 |
Fig.3 |
102 |
259 |
361 |
229 |
254 |
255 |
484 |
509 |
785 |
41 |
|
CTS451 CTS601 CTS751 |
Fig.1 Fig.1 Fig.1 |
143 143 143 |
200 200 200 |
343 343 343 |
290 290 310 |
331 331 360 |
297 297 297 |
587 587 607 |
628 628 657 |
749 749 848 |
37 37 41 |
|
CTS456 CTS752 |
Fig.2 Fig.2 |
96 96 |
247 247 |
343 343 |
290 310 |
331 360 |
297 297 |
587 607 |
628 657 |
885 948 |
41 43 |
|
CTS753 |
Fig.4 |
178 |
345 |
523 |
310 |
360 |
297 |
607 |
657 |
901 |
60 |
|
CTS754 |
Fig.5 |
96 |
247 |
343 |
310 |
360 |
297 |
607 |
657 |
1005 |
75 |
¡@
|
|
