● Rugged Meehanite casting.
● Mitutoyo or Givi Linear Scales.
● "V" Block tool holder.
● Oil lubricator.
● Worklight.
● Vacuum Flushing.
● Pulse Flushing.
● Remote control for Z-axis.
● Reverse Polarity.
● Z axis Indicator.

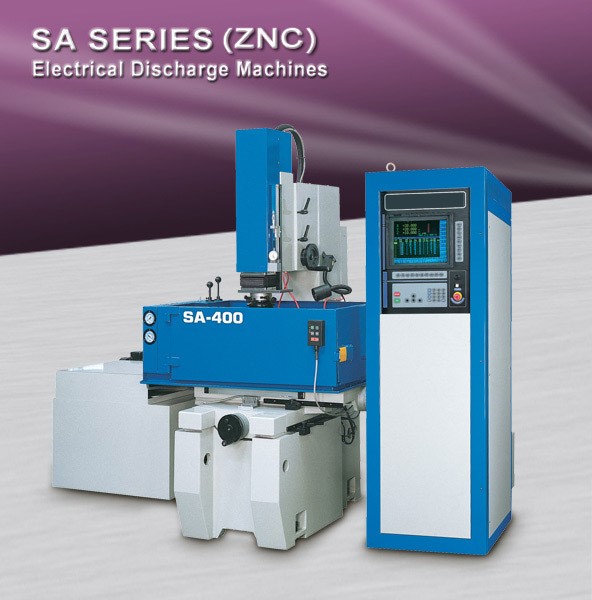

FEATURES

●Two coordinates for machining depth (from positive to zero or to negative).
●Special circuit for deep hole machining.
●Stabilizing circuit for electrodes with large surface areas.
●Two stage servo drive is independently controlled.
●Separate circuit for high /low gap.
●PWM servo system DC servo drive is standard. (AC servo optional.)
●Overlapped high voltage discharge system.
●Extra fine machining circuit.
●Volt stabilizing capability ±20%.
●K gold plated PCB provides moisture and rust resistance.

●Individual circuit for copper and graphite electrode. Separate machining parameters.
●3 axes D.R.O.                                                   ●Automatic editing for discharge parameters. Allows for selections of coarse, medium, fine and extra fine
machining condition.
●X,Y-axis ballscrews on models over SA-400.
●Fire detection and machine stops.
●Oil level sensor.
●Anti arc circuit.
●Anti arc auto retract.
●Oil temperature sensor.
●CE compliant versions.
Optional
●Hydraulic worktank door on model 700 and above.
●Oil cooler.
Model
Work Tank
Work Table
 Main Travel X Y Z-Axes
Standard Output Current
Machine Net Weight
SA-300
770 x 500 x350 mm
600 x 300 mm

300 x 250 x150 mm (+200 Auto)
75
1400
SA-400
1050 x 630 x450 mm
650 x 350 mm

400 x 300 x180 mm (+250 Auto) / 350(Optional)
75
1800
SA-500
1200 x 700 x 500 mm
800 x 400 mm

500 x 400 x180 mm (+250 Auto) / 350(Optional)
75
2300
SA-700
1500 x 1020 x 650 mm
1000 x 600 mm

700 x 500 x 400 / 600 mm (Optional)
100
5500
SA-1000
1845 x 1100 x 650 mm
1200 x 800 mm

1000 x 600 x 400 / 600 mm (Optional))
100
7000
SA-1300
2080 x 1270 x 700 mm
1400 x 900 mm

1300 x 700 x 600 mm (Optional)
150
8400
SA-2000
2900 x 1500 x 700 mm
2000 x 1000 mm

2000 x 1000 x 600 / 760 mm (Optional)
150
12300
SA-2100
2900 x 1500 x 700 mm
2000 x 1000 mm

2100 x 1000 x 600 / 760 mm (Optional)
150
13500
SA-2500
3400 x 1555 x 700 mm
2500 x 1000 mm

2500 x 1000 x 600 / 760 mm (Optional)
150
18200
SA-3000  Twin head


3000 x 1000 x 760 / 1000 mm (Optional)
150
20000
SA-3700   Twin hea
Upon customer's request

3700 x 1200 x 760 / 1000 mm (Optional)
150
25000
SA-4500   Twin head


4500 x 1500 x 760 / 1000 mm (Optional)
150
30000
